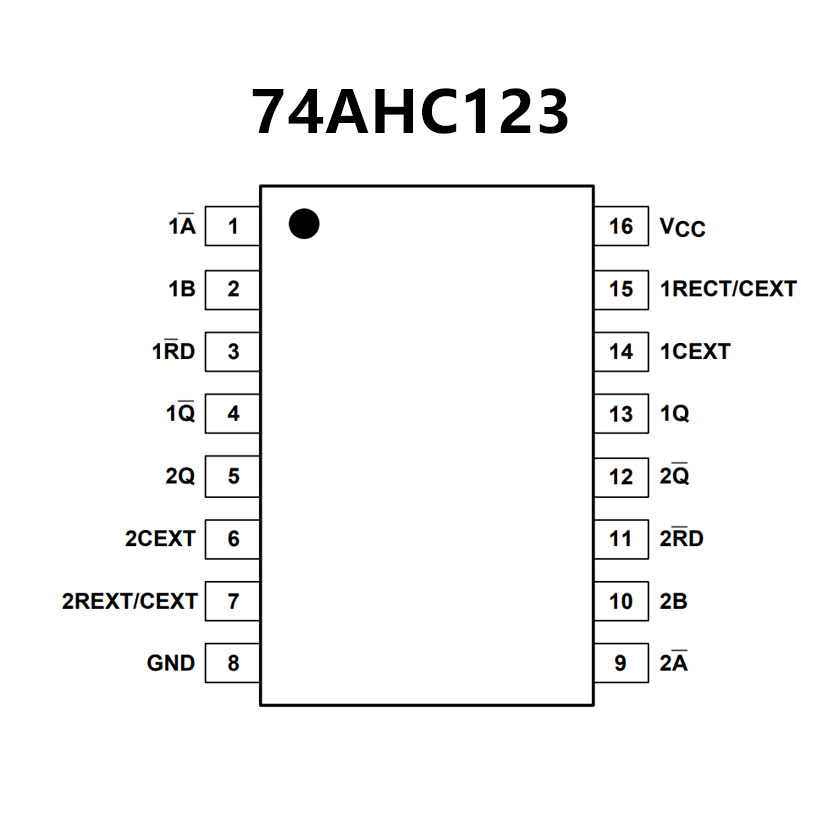

74AHC123XS16G.pdf? All Inputs Have a Schmitt-Trigger Action
? Inputs Accept Voltages Higher than VCC
? Edge-Triggered from Active High or Active Low
Gated Logic Inputs
? Retriggerable for Very Long Pulses up to 100%
Duty Factor
? Direct Reset Terminates Output Pulse
? Operates with CMOS Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-16 Package
? High speed: tpd = 25 ns (typ.) at VCC = 5 V
? Low power dissipation
Standby state: ICC = 4 μA (max) at Ta = 25°C
Active state: ICC = 700 μA (max) at Ta = 25°C
? High noise immunity: VNIH = VNIL = 28% VCC (min)
? Output drive capability: 10 LSTTL loads
? Symmetrical output impedance: |IOH| = IOL = 4 mA (min)
? Balanced propagation delays: tpLH ?～ tpHL
? Wide operating voltage range: VCC (opr) = 2 to 6 V

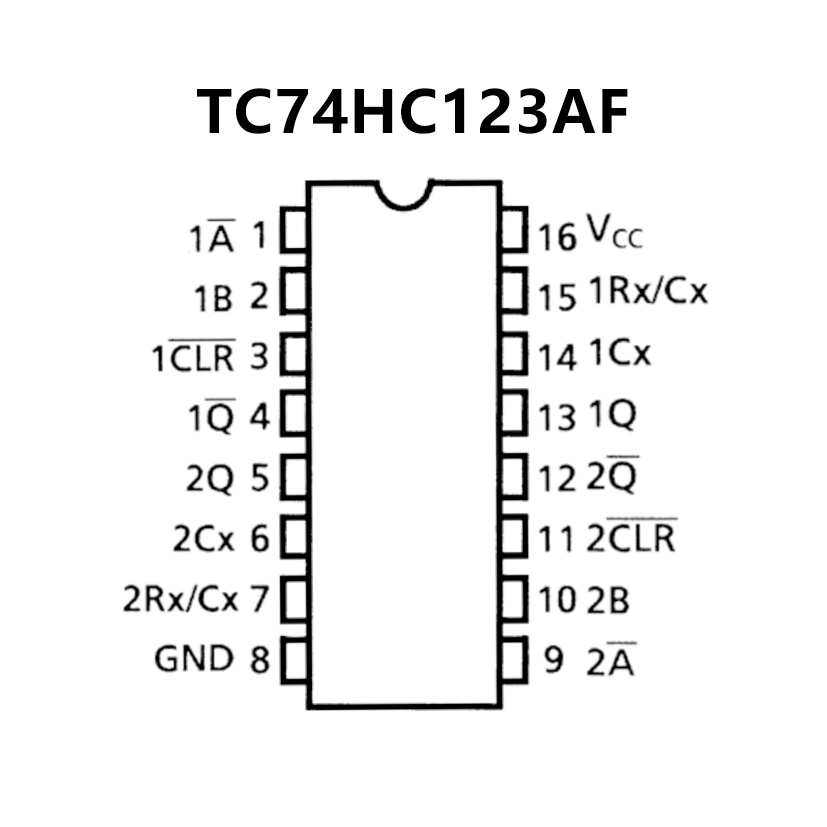

? Pin and function compatible with 74LS123
