Dual retriggerable monostable multivibrator with reset，Replace 74AHC123APW
74AHC123XTS16G.pdf優勢替代
FEATURES
? Wide supply voltage range from 2.0 V to 5.5 V
? DC triggered from active HIGH or active LOW inputs
? Retriggerable for very long pulses up to 100 % duty factor
? Direct reset terminates output pulse
? Overvoltage tolerant inputs to 5.5 V
? All inputs have a Schmitt-trigger action
? High noise immunity
? Input levels:
? For 74AHC123A: CMOS level
? For 74AHCT123A: TTL level
? ESD protection:
? HBM JESD22-A114E exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101C exceeds 1000 V
? Latch-up performance exceeds 100 mA
per JESD 78 Class II Level A
? Multiple package options
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

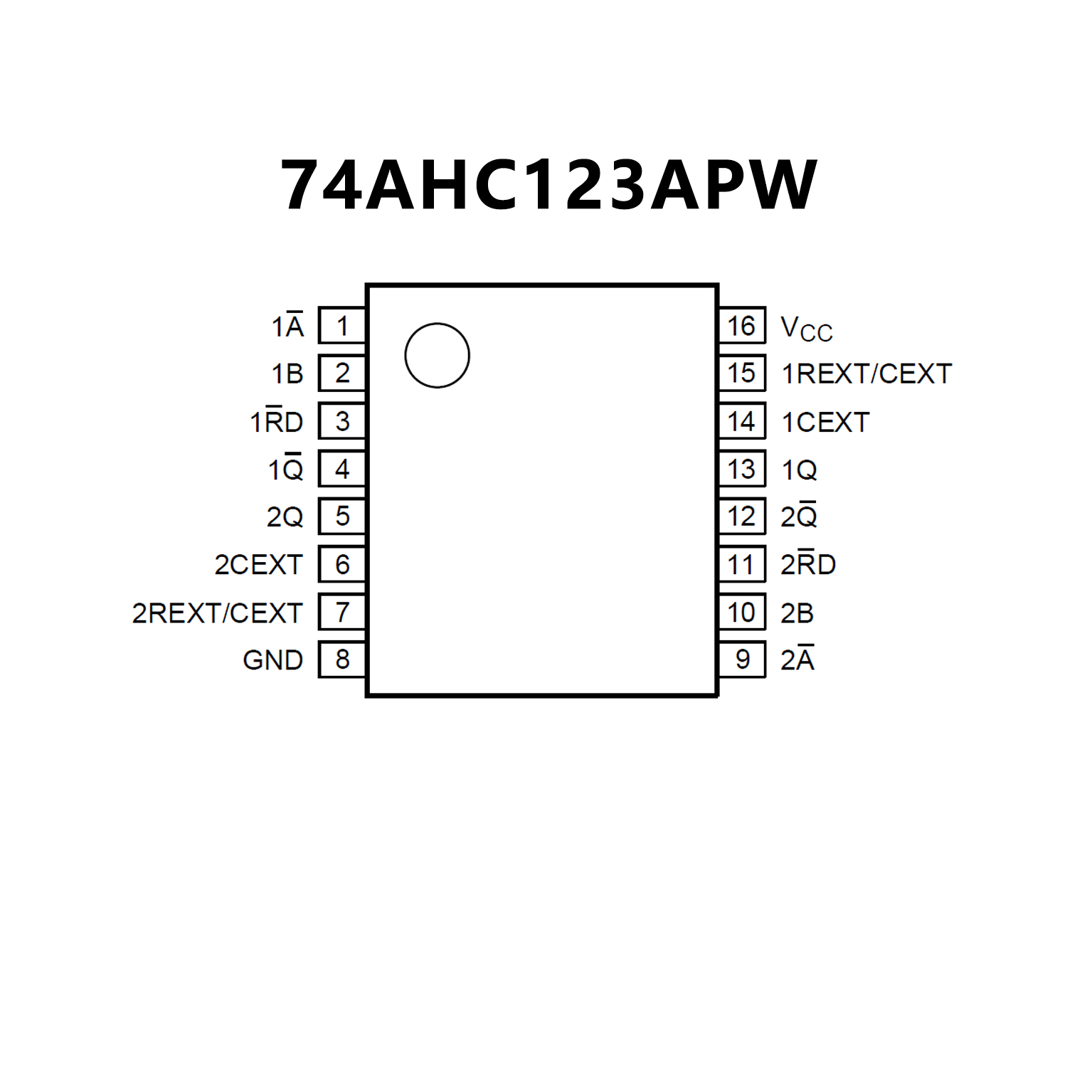

PIN CONFIGUTION
