Hex Inverting with Schmitt Trigger Inputs, 74AHC14XS14G/TR Replace 74ACT14MTC.
74AHC14XS14G/TR
74AHC14XS14G/TR.pdf
74AHC14XS14G/TR.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

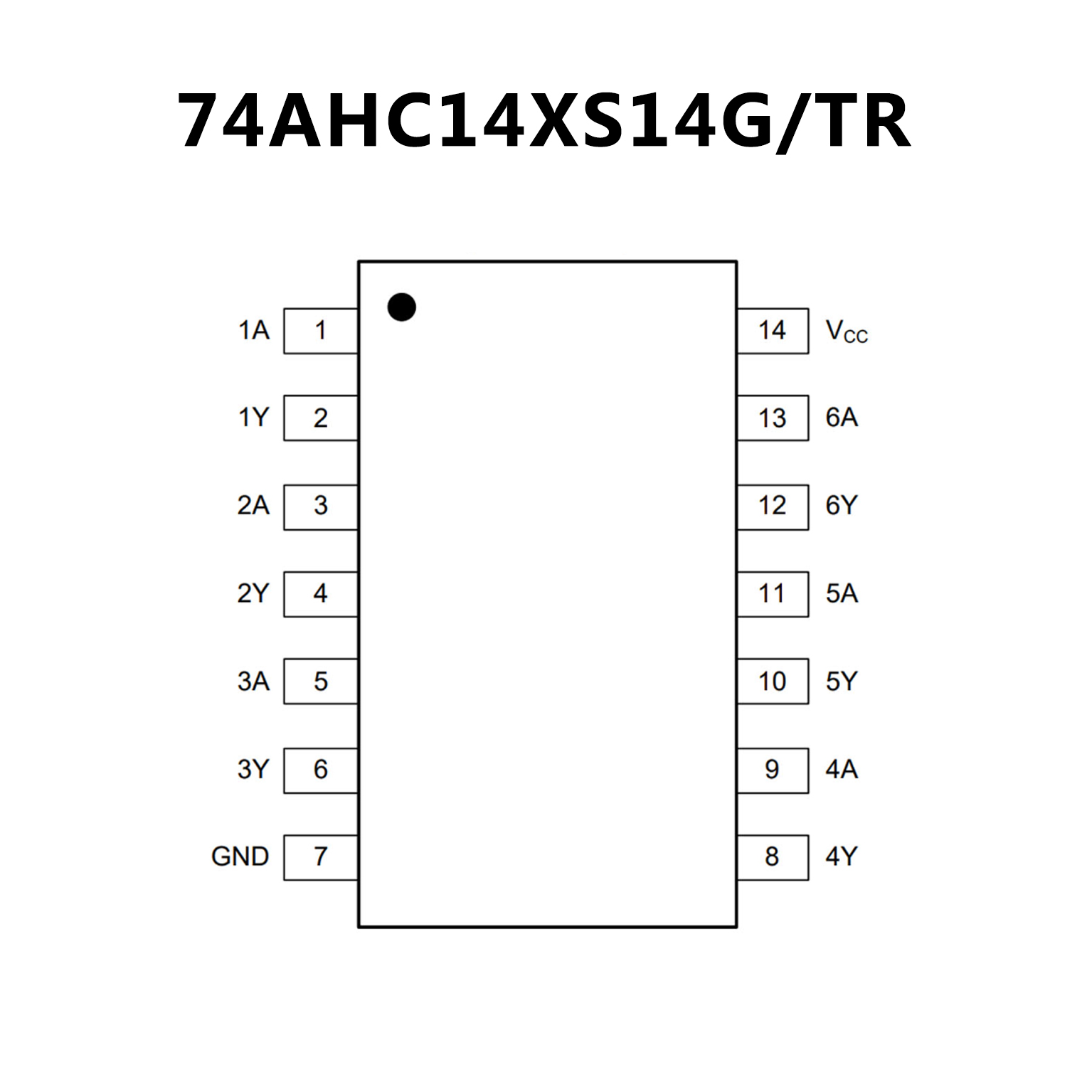

PIN CONFIGUTION
優勢替代
FEATURES
? ICC reduced by 50%
? Outputs source/sink 24mA
? 74ACT14 has TTL-compatible inputs

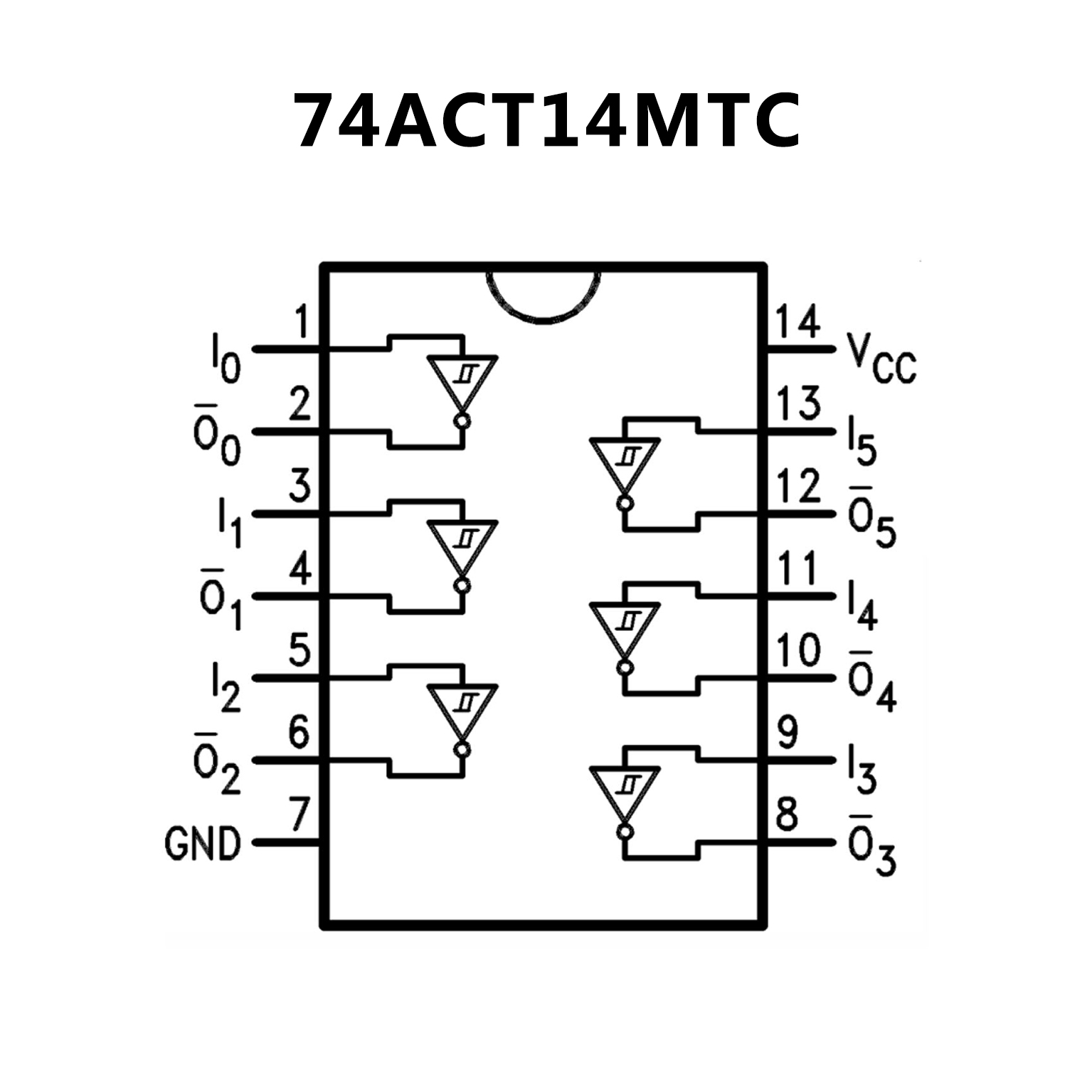

PIN CONFIGUTION
