Hex Inverter with Schmitt Trigger Inputs,74AHC14-Replace-74AHC14D
74AHC14XS14GTR
74AHC14XS14GTR.pdf
74AHC14XS14GTR.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

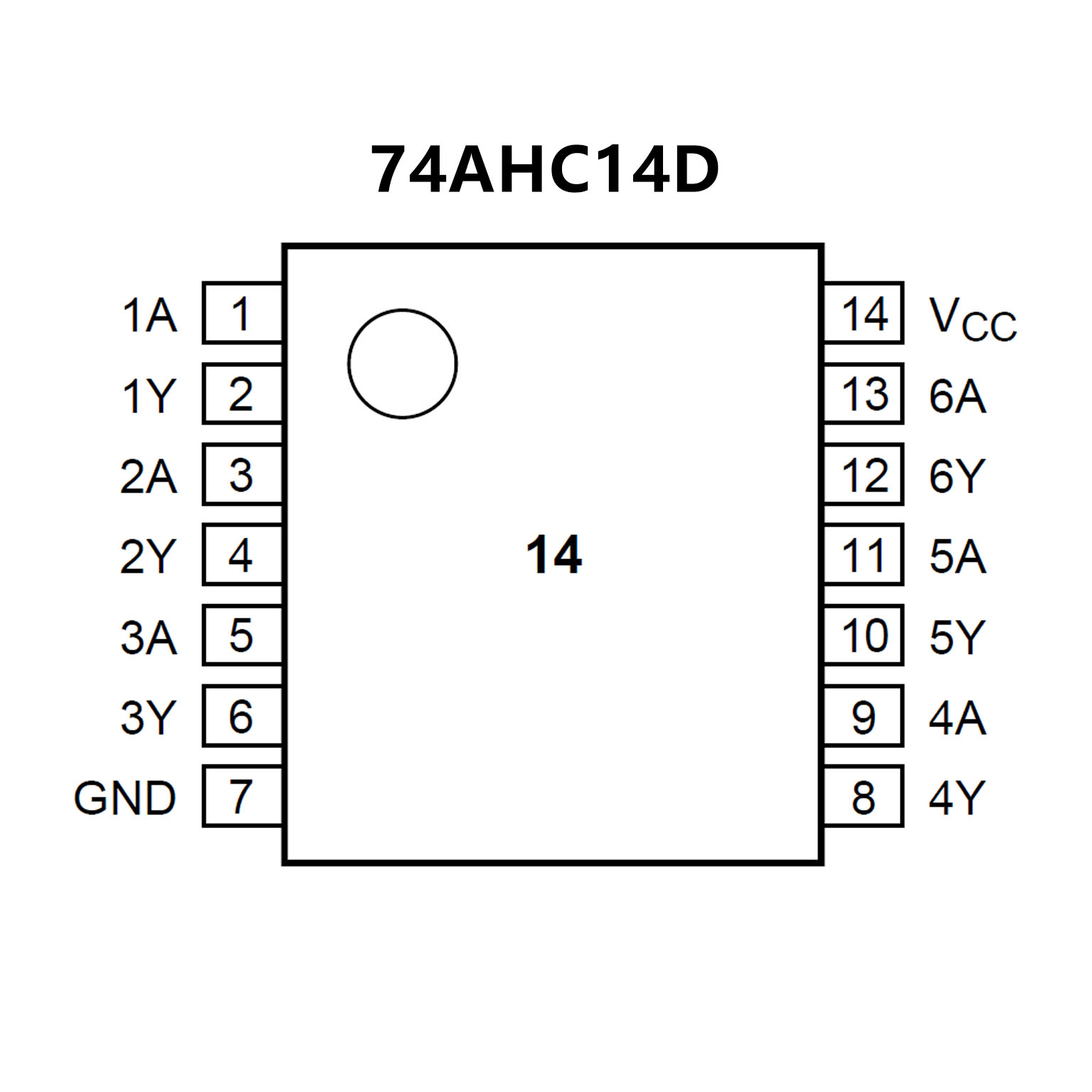

PIN CONFIGUTION
優勢替代
FEATURES
? Balanced propagation delays
? All inputs have Schmitt-trigger actions
? Inputs accept voltages higher than VCC
? Input levels:
For 74AHC14: CMOS level
For 74AHCT14: TTL level
? ESD protection:
HBM EIA/JESD22-A114E exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101C exceeds 1000 V
? Multiple package options
? Specified from ?40 °C to +85 °C and from ?40 °C to +125 °C

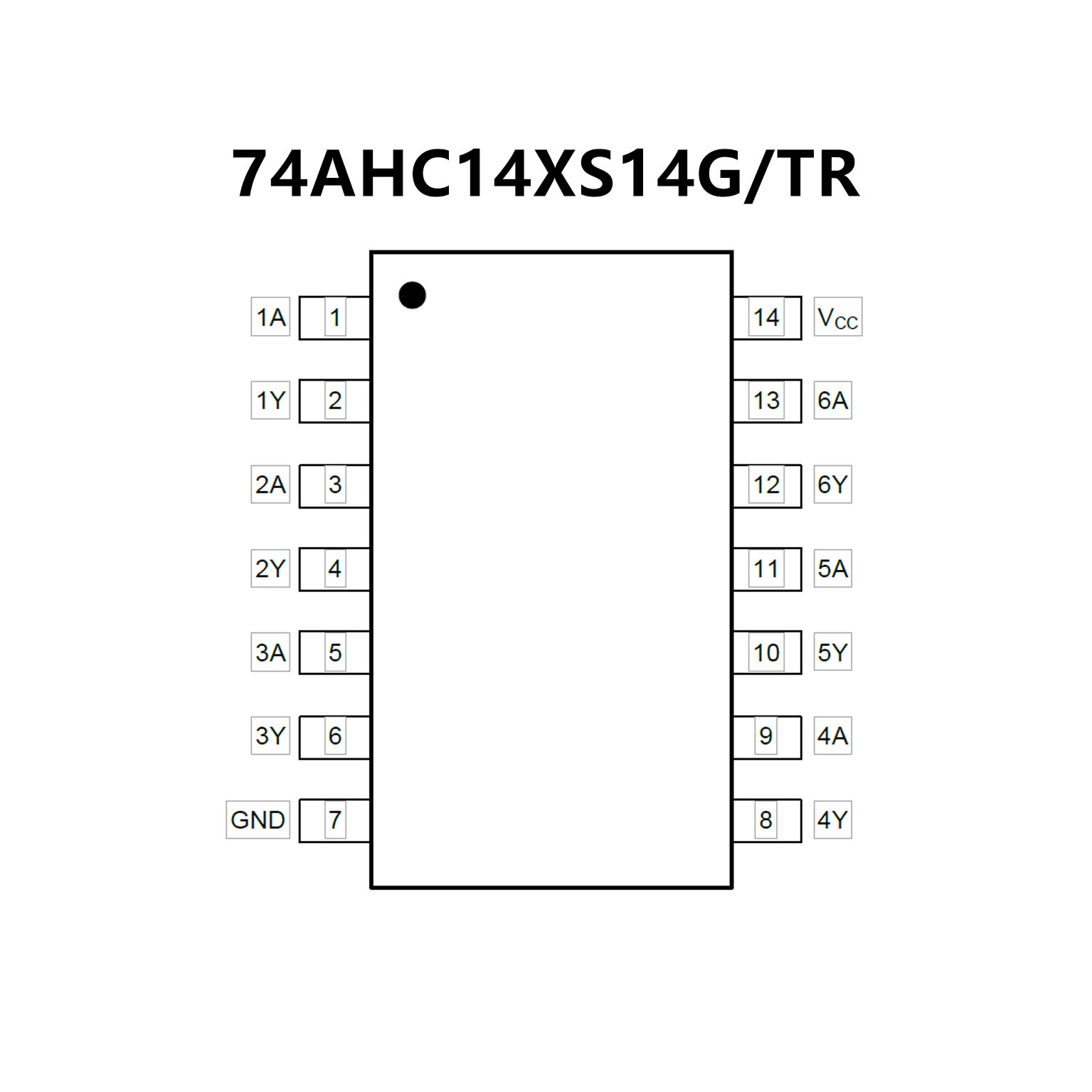

PIN CONFIGUTION
