2 input AND gate, 74AHC1G08QC5G Replace 74AHC1G08GW
74AHC1G08Q.pdf優勢替代
FEATURES
? Automotive product qualification
in accordance with AEC-Q100 (Grade 1)
? Specified from -40 °C to
+85 °C and from -40 °C to +125 °C
? Wide supply voltage range from 2.0 to 5.5 V
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? Latch-up performance exceeds
100 mA per JESD 78 Class II Level A
? Symmetrical output impedance
? Balanced propagation delays
? Input levels:
? For 74AHC1G08-Q100: CMOS level
? For 74AHCT1G08-Q100: TTL level
? ESD protection:
? MIL-STD-883, method 3015 exceeds 2000 V
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A
exceeds 200 V (C = 200 pF, R = 0 Ω)

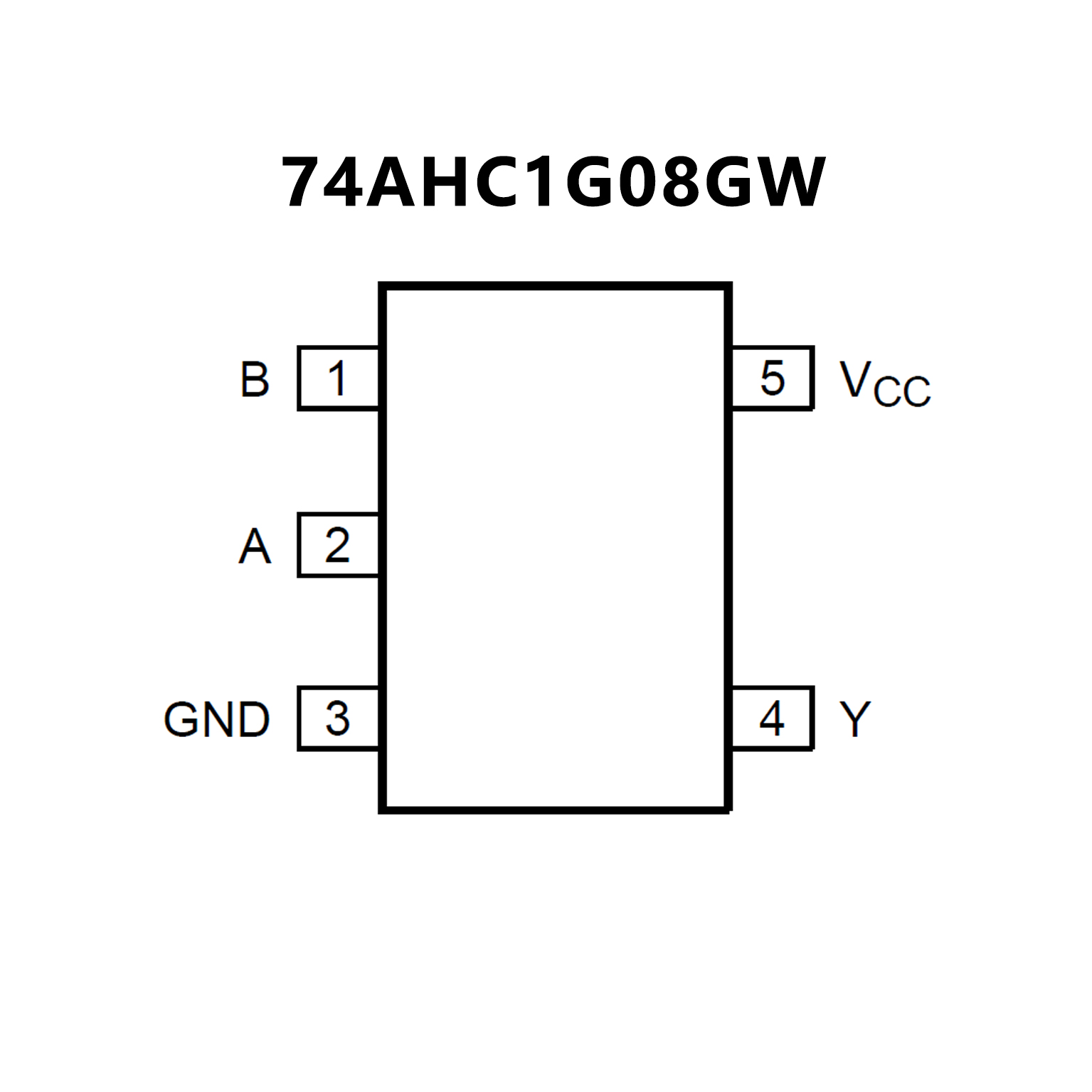

PIN CONFIGUTION
