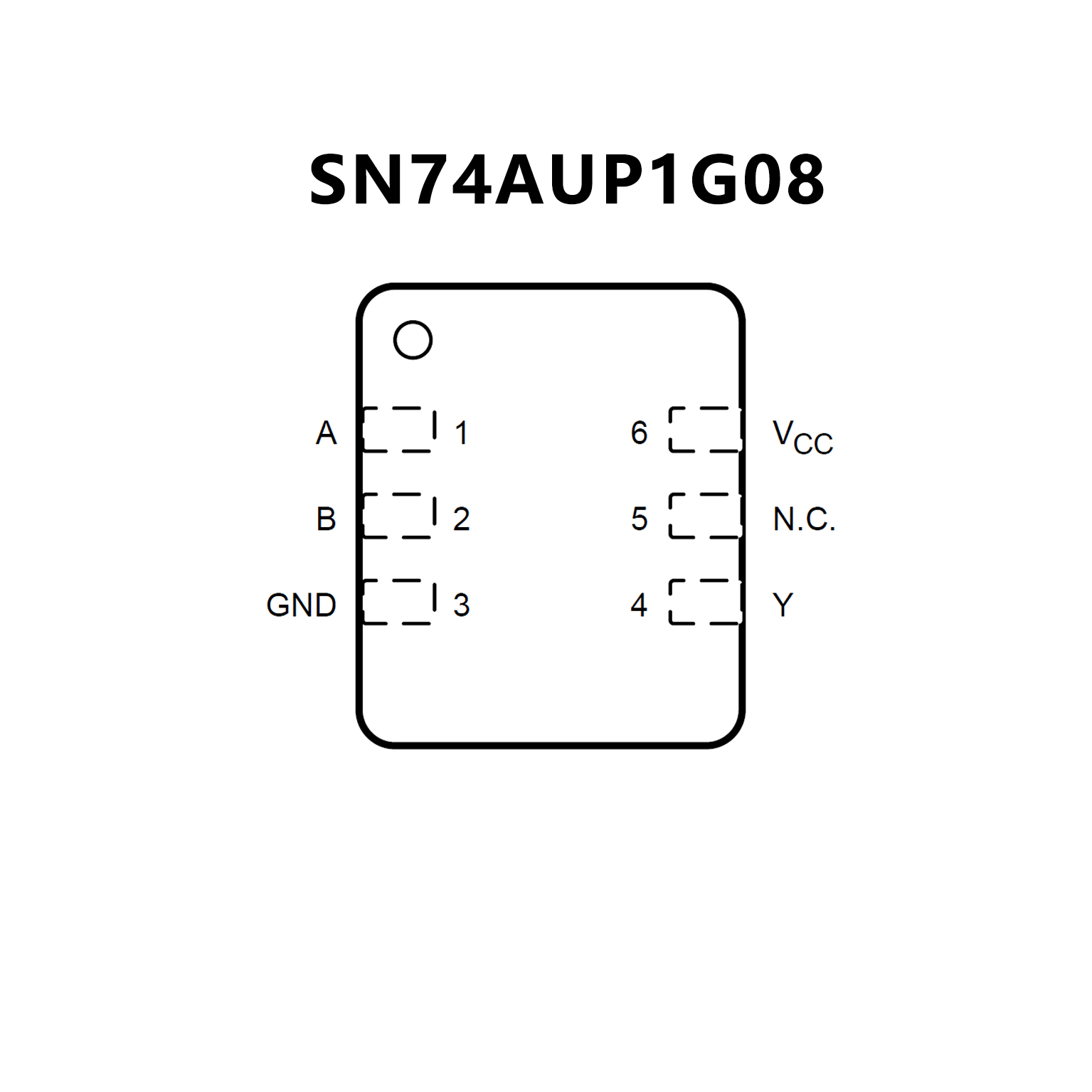

74AUP1G08XN5G.pdf? Available in the Ultra Small 0.64 mm2 Package
? (DPW) With 0.5-mm Pitch
? Low Static-Power Consumption:
? ICC = 0.9 μA Maximum
? Low Dynamic-Power Consumption:
? Cpd = 4.3 pF Typical at 3.3 V
? Low Input Capacitance: Ci = 1.5 pF Typical
? Low Noise: Overshoot and
Undershoot<10% of VCC
? Ioff Supports Live Insertion, Partial-
Power-Down Mode, and Back Drive Protection
? Schmitt-Trigger Action Allows Slow Input
Transition and Better Switching Noise
Immunity at the Input (Vhys = 250 mV Typical at 3.3 V)
? Wide Operating VCC Range of 0.8 V to 3.6 V
? Optimized for 3.3-V Operation
? 3.6-V I/O Tolerant to Support
Mixed-Mode Signal Operation
? tpd = 4.3 ns Maximum at 3.3 V
? Suitable for Point-to-Point Applications
? Latch-Up Performance Exceeds 100
mA Per JESD 78, Class II
? ESD Performance Tested Per JESD 22
2000-V Human-Body Model(A114-B, Class II)
1000-V Charged-Device Model (C101)
