Octal bus transceiver; 3 state, 74HC245TXS Replace 74HC245PW.
74HC245TXS.pdf優(yōu)勢替代
FEATURES
? Complies with JEDEC standard JESD7A
? Input levels:
? For 74HC245: CMOS level
? For 74HCT245: TTL level
? Octal bidirectional bus interface
? Non-inverting 3-state outputs
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from ?40 ?Cto+85?C and from ?40 ?Cto+125 ?C

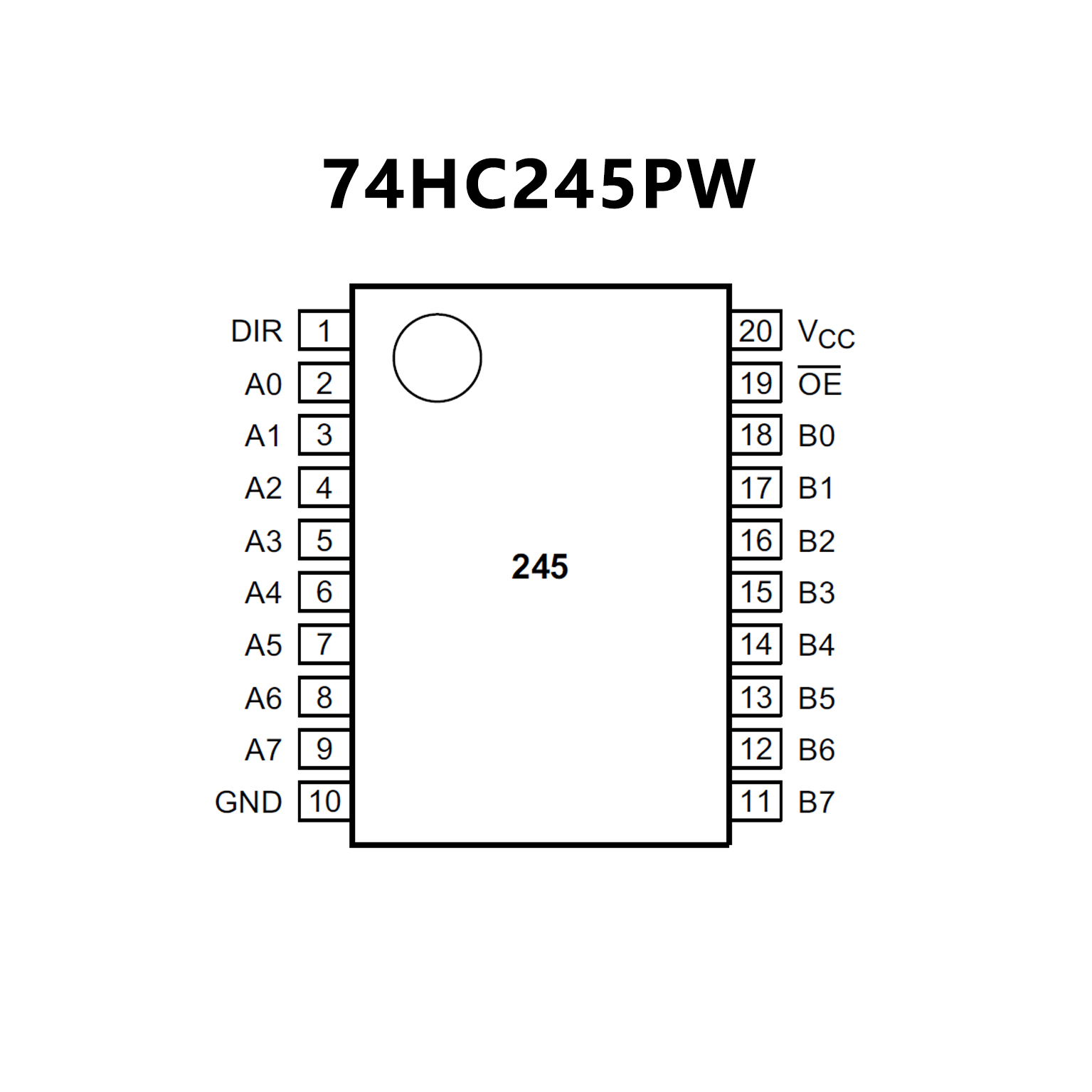

PIN CONFIGUTION
