Single 2-Input Translating AND Gate,74LV1T08 Replace NC7ST08.
74LV1T08
74LV1T08.pdf
74LV1T08.pdfFEATURES
? Single Supply Voltage Translator at 1.8V,
2.5V,3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC= 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

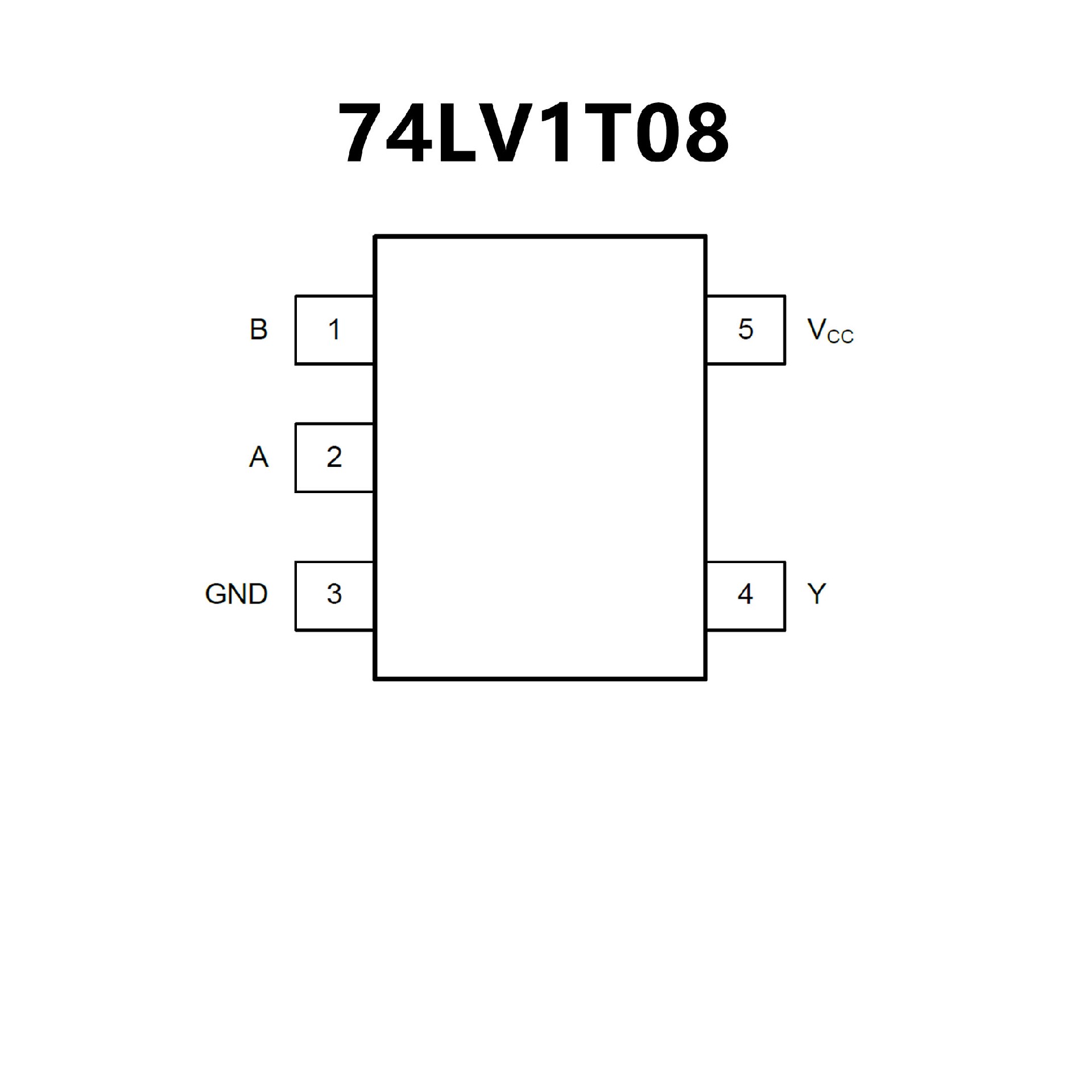

PIN CONFIGUTION
優勢替代
FEATURES
? Space Saving SC?74A and SC?88A 5?Lead Package
? Ultra Small MicroPak? Leadless Package
? High Speed: tPD = 6 ns (Typ),
VCC = 5 V, CL = 15 pF, TA = 25°C
? Low Quiescent Power: ICC < 1μA Typ, VCC = 5.5 V
? Balanced Output Drive: 2 mA IOL, ?2 mA IOH
? TTL?compatible Inputs
? These Devices are Pb?Free,
Halogen Free/BFR Free and are RoHSCompliant

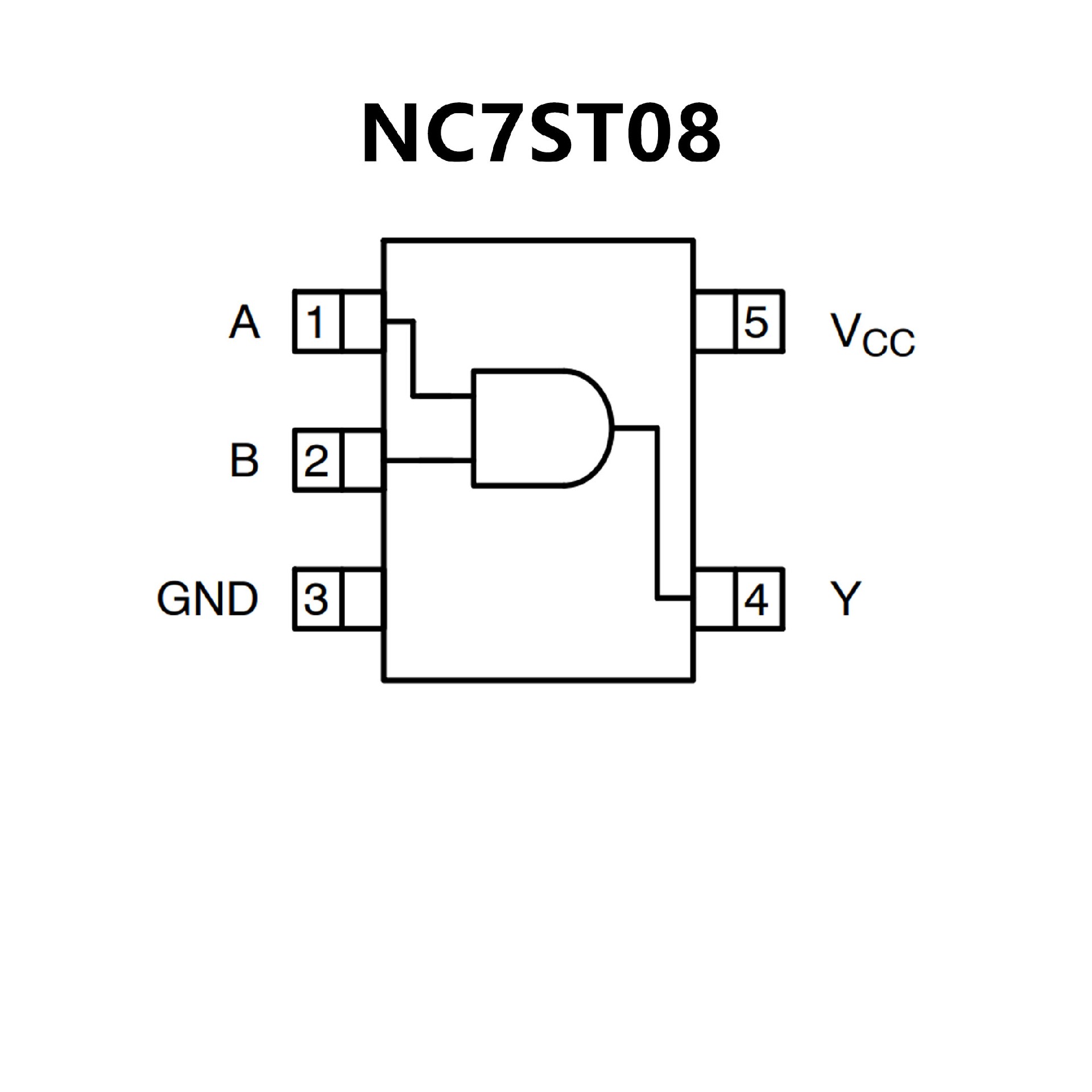

PIN CONFIGUTION
