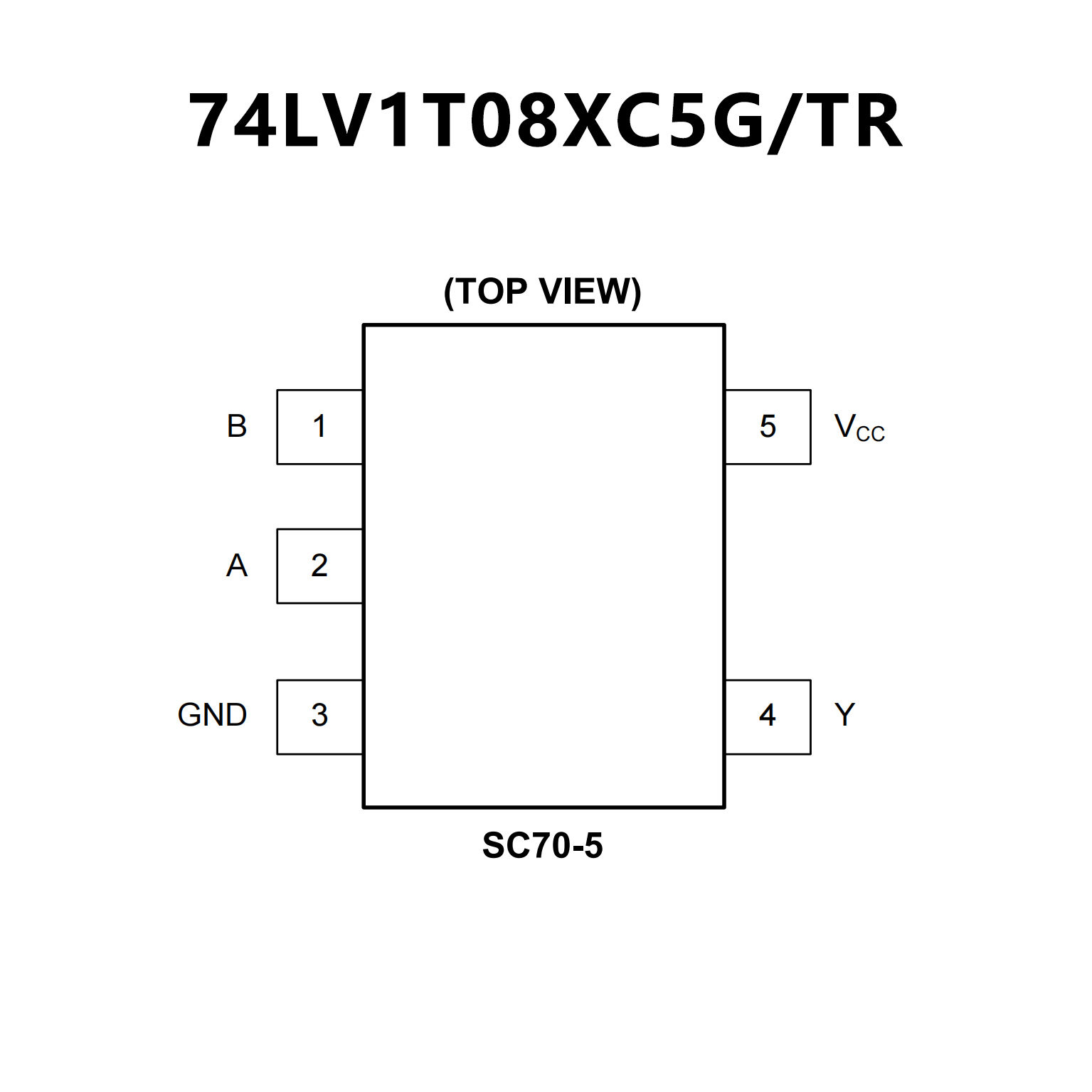

74LV1T08.pdf? Single Supply Voltage Translator at 1.8V, 2.5V,
3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package
? Wide supply voltage range from 2.0 V to 6.0 V
? CMOS low power dissipation
? High noise immunity
? Symmetrical output impedance
? Balanced propagation delays
? Latch-up performance exceeds 100 mA per JESD
78 Class II Level B
? Input levels:

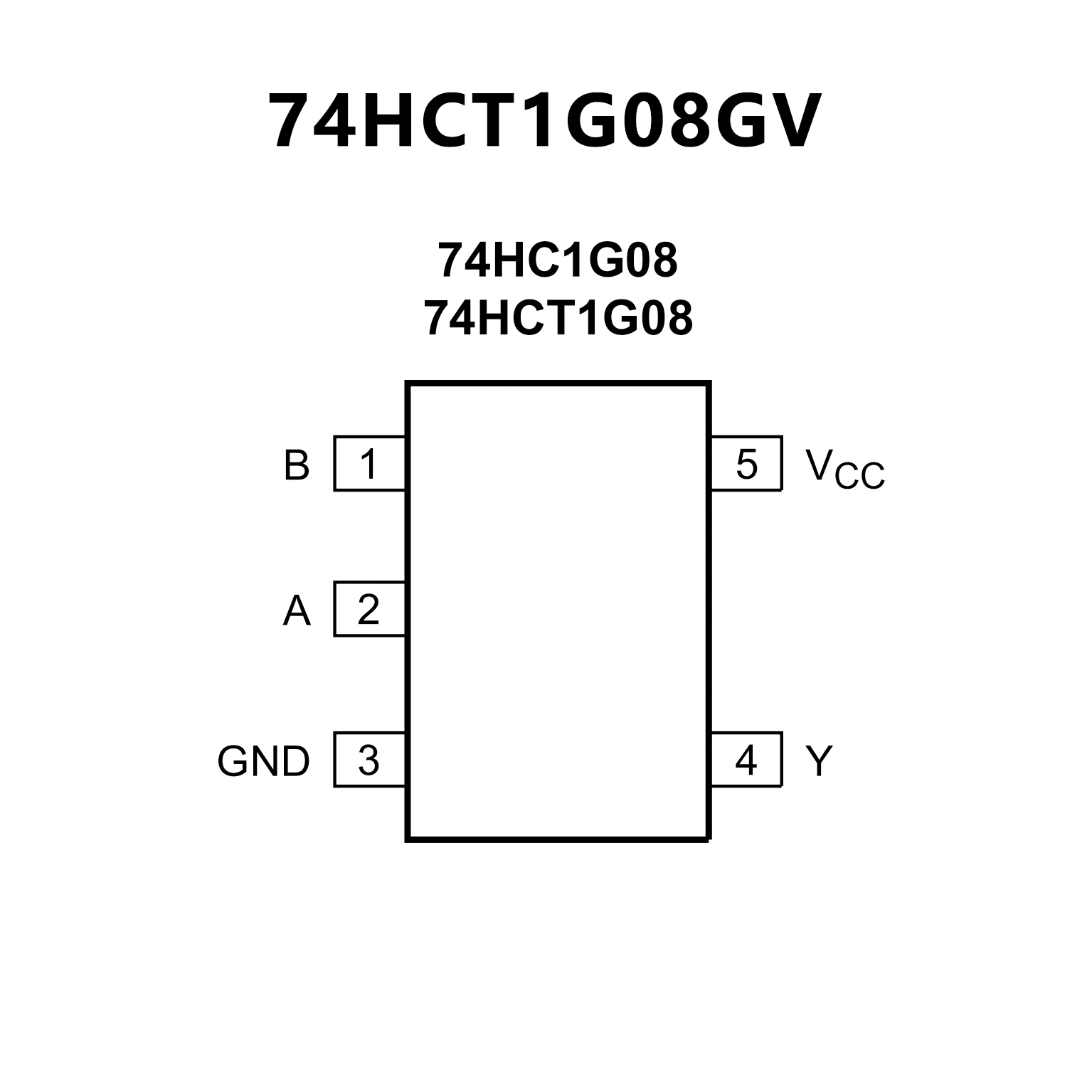

? For 74HC1G08: CMOS level
? For 74HCT1G08: TTL level
? Complies with JEDEC standards:
? JESD8C (2.7 V to 3.6 V)
? JESD7A (2.0 V to 6.0 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? Specified from ?40 °C to +85 °C and
?40 °C to +125 °C
