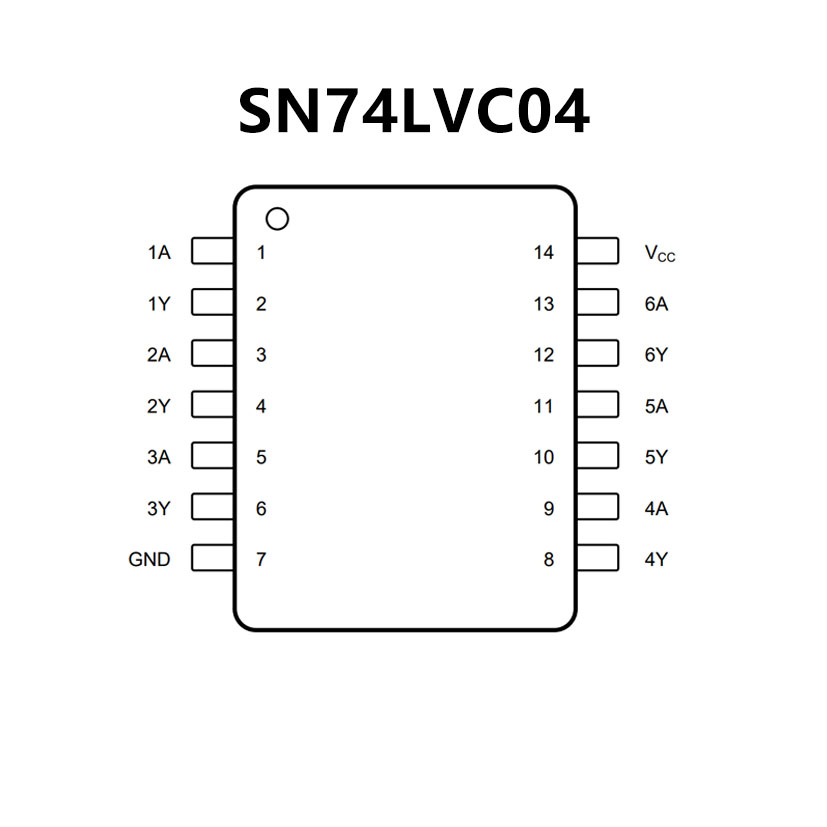

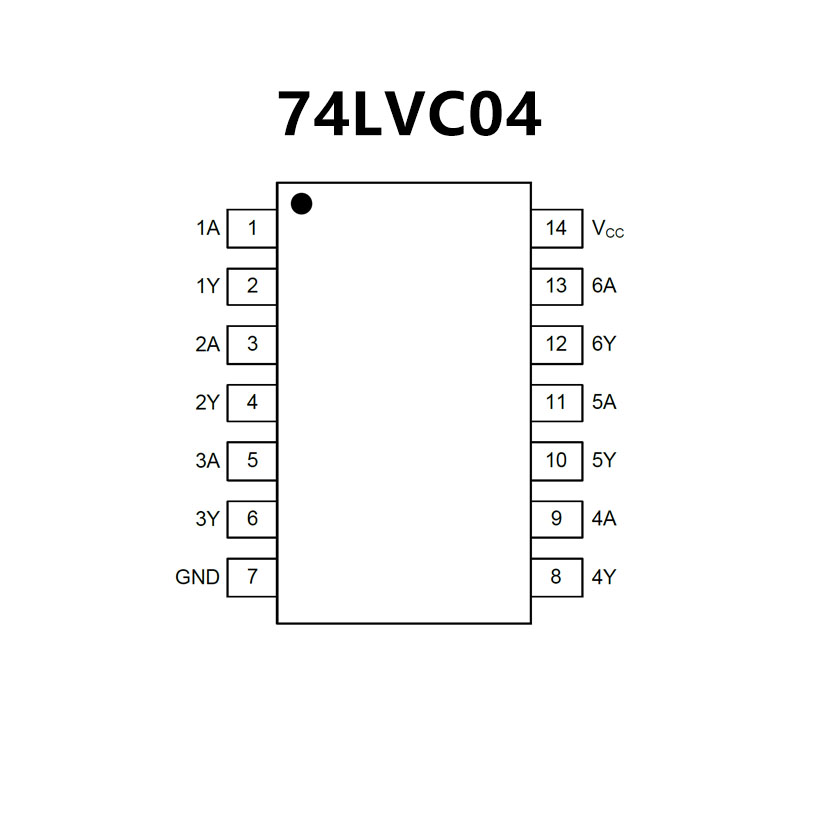

74LVC04XS14G.pdf? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package
? Operate From 1.65 V to 3.6 V
? Specified From –40°C to 85°C,
–40°C to 125°C, and –55°C to 125°C
? Inputs Accept Voltages to 5.5 V
? Maximum tpd of 4.5 ns at 3.3 V
? Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
? Latch-Up Performance Exceeds 250 mA Per
JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
