Hex Inverter,74LVC04XS14GTR-Replace-74AHC04D.
74LVC04XS14GTR
74LVC04XS14GTR.pdf
74LVC04XS14GTR.pdfFEATURES
?5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
?CMOS Low Power Consumption
?Direct Interface with TTL Levels
?Inputs Accept Voltages up to 5.5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

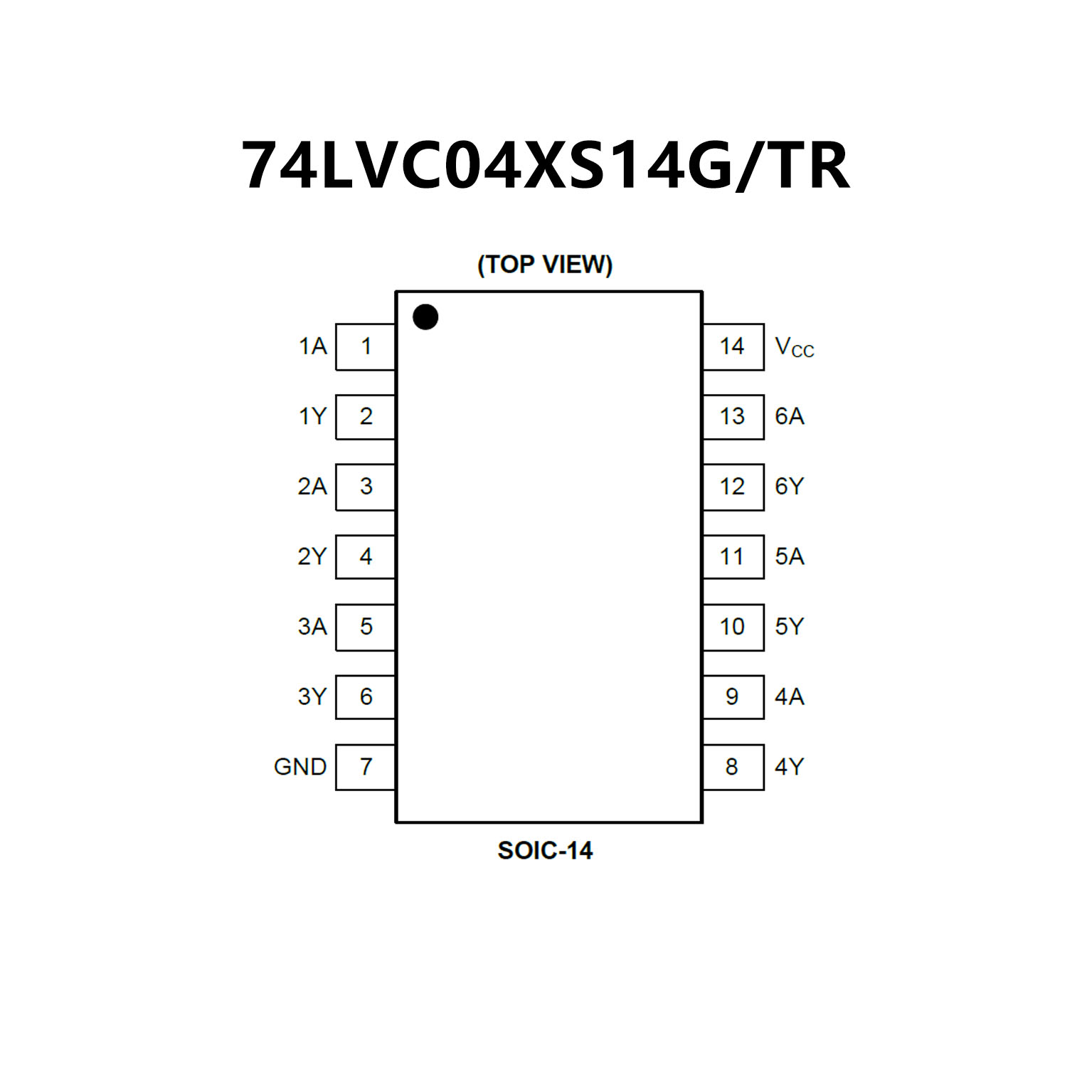

PIN CONFIGUTION
優勢替代
FEATURES
? Balanced propagation delays
?Inputs accept voltages higher than VCC
? Input levels:
For 74AHC04: CMOS level
For 74AHCT04: TTL level
?ESD protection:
HBM EIA/JESD22-A114F exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
CDM EIA/JESD22-C101C exceeds 1000 V
?Multiple package options
?Specified from-40℃ to +85℃ and from ?40 ?C to +125 ℃

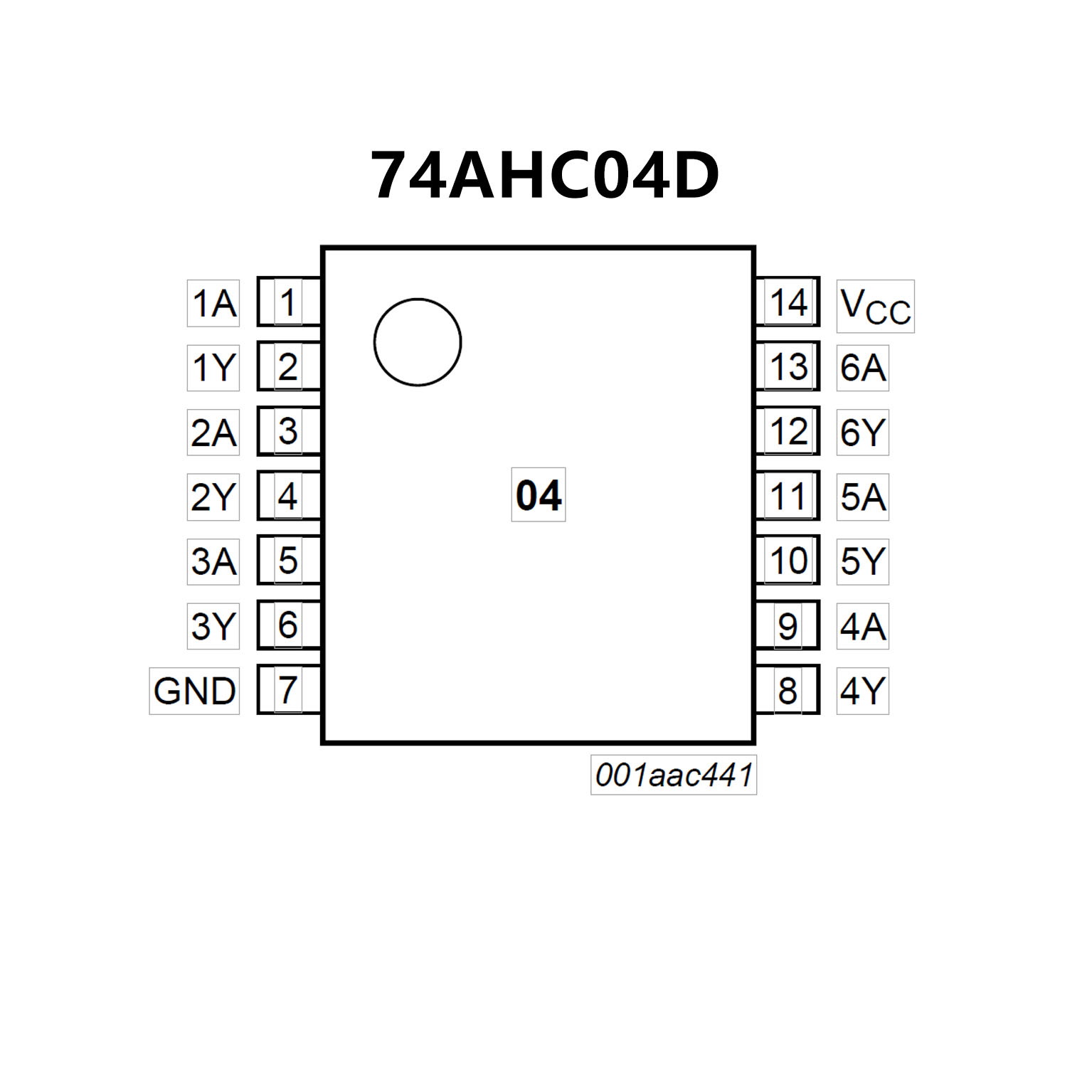

PIN CONFIGUTION
