Bus Buffer/Line Driverwith 3-State Output,74LVC1G125 Replace M74VHC1GT125DF1G.
74LVC1G125
74LVC1G125.pdf
74LVC1G125.pdfFEATURES
? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Inputs Accept Voltages Up to 5V
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

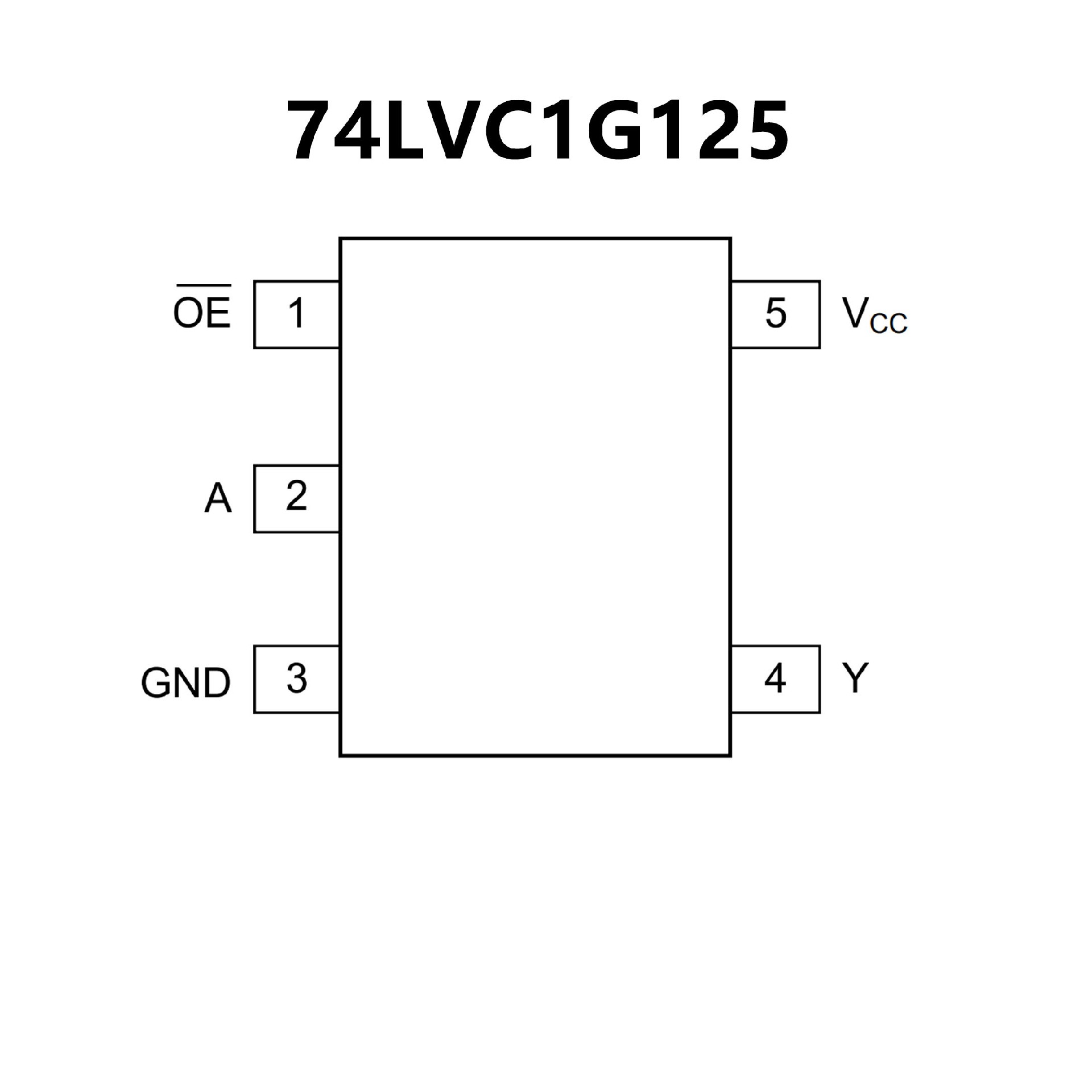

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? High Speed: tPD = 3.5 ns (Typ) at VCC = 5 V
? Low Power Dissipation: ICC = 1μA (Max) at TA = 25°C
? TTL?Compatible Inputs: VIL = 0.8 V; VIH = 2 V
? CMOS?Compatible Outputs:
VOH > 0.8 VCC; VOL < 0.1 VCC @Load
? Power Down Protection Provided on Inputs and Outputs
? Balanced Propagation Delays
? Pin and Function Compatible
with Other Standard Logic Families
? Chip Complexity: FETs = 62; Equivalent Gates = 16
? Pb?Free Packages are Available

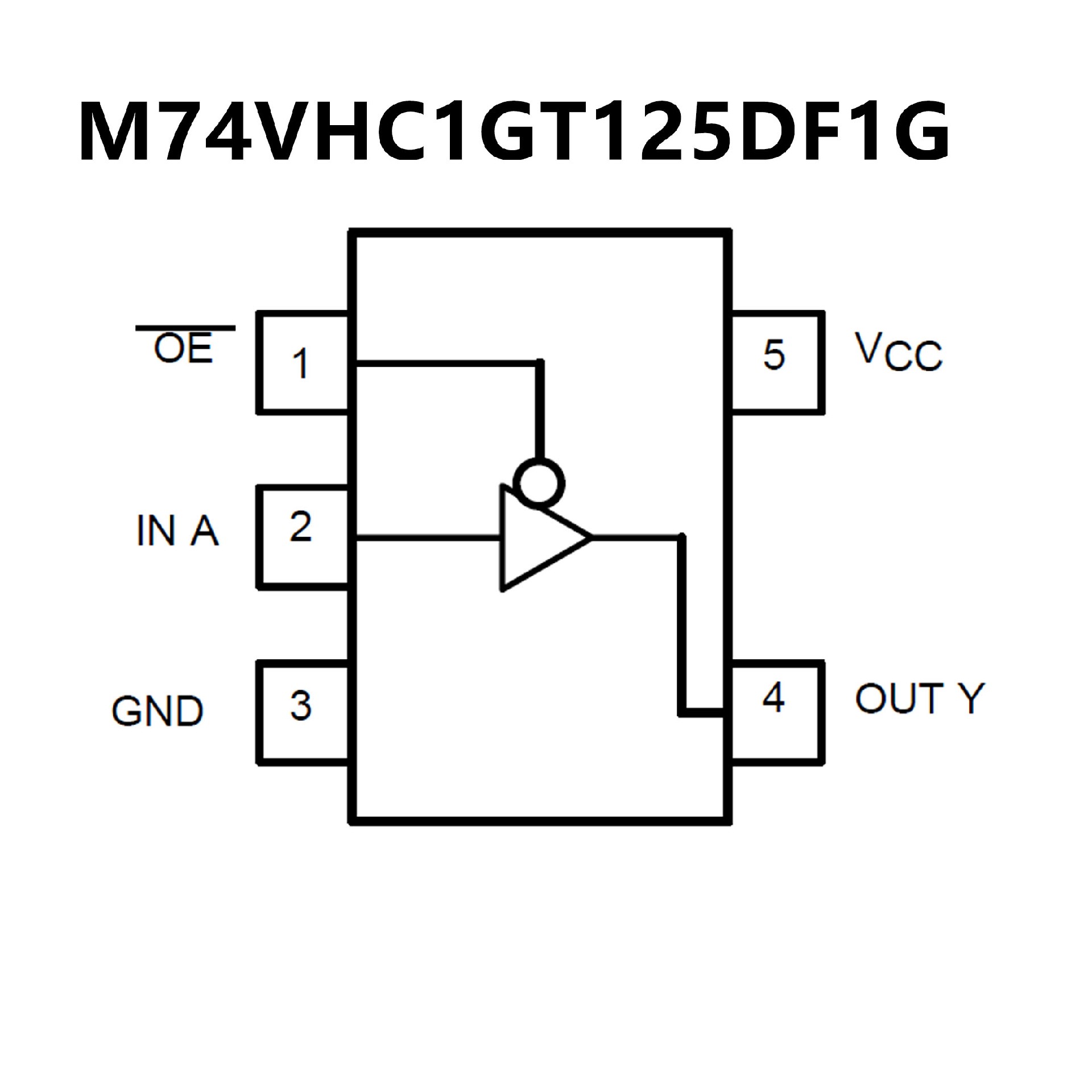

PIN CONFIGUTION
