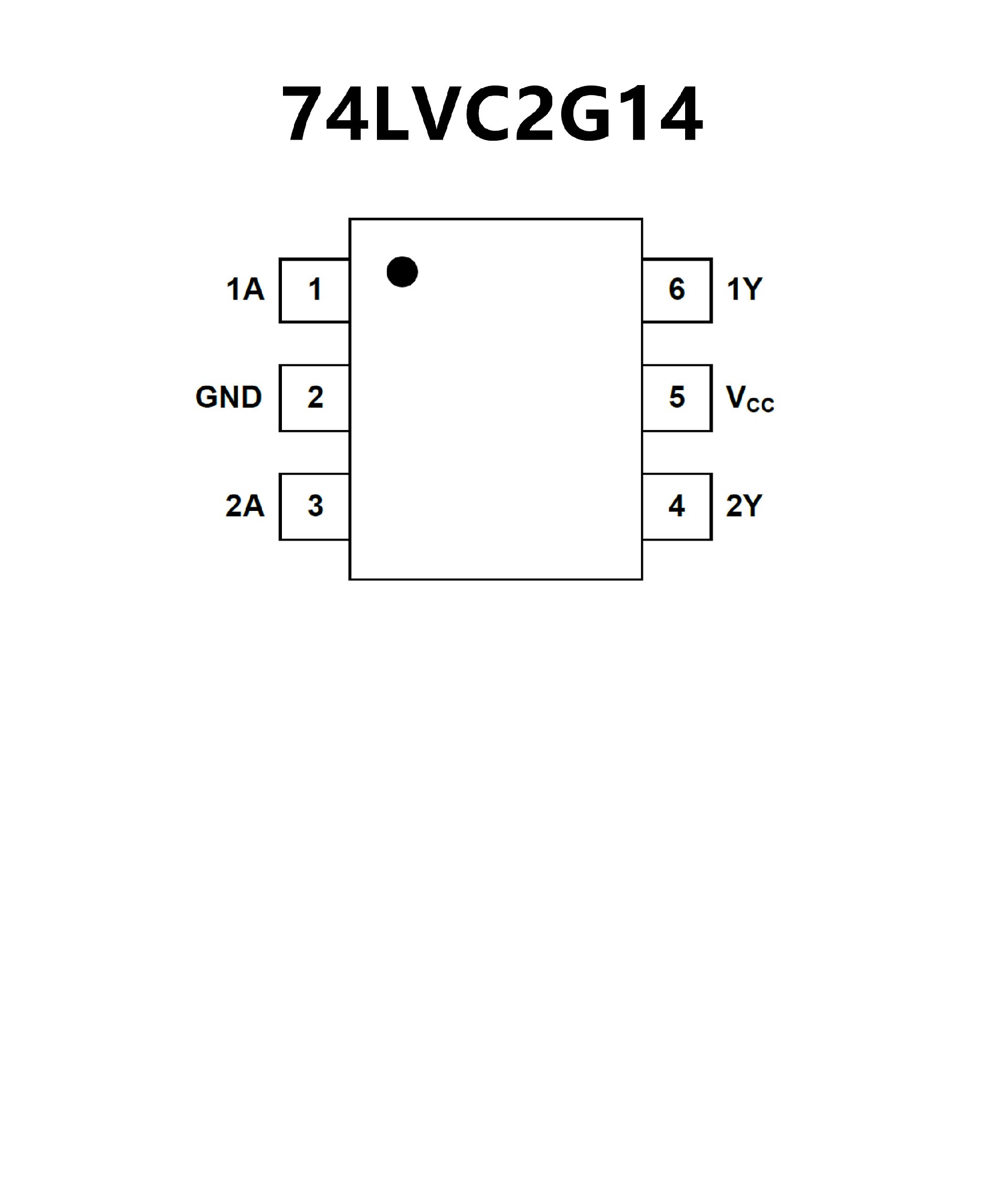

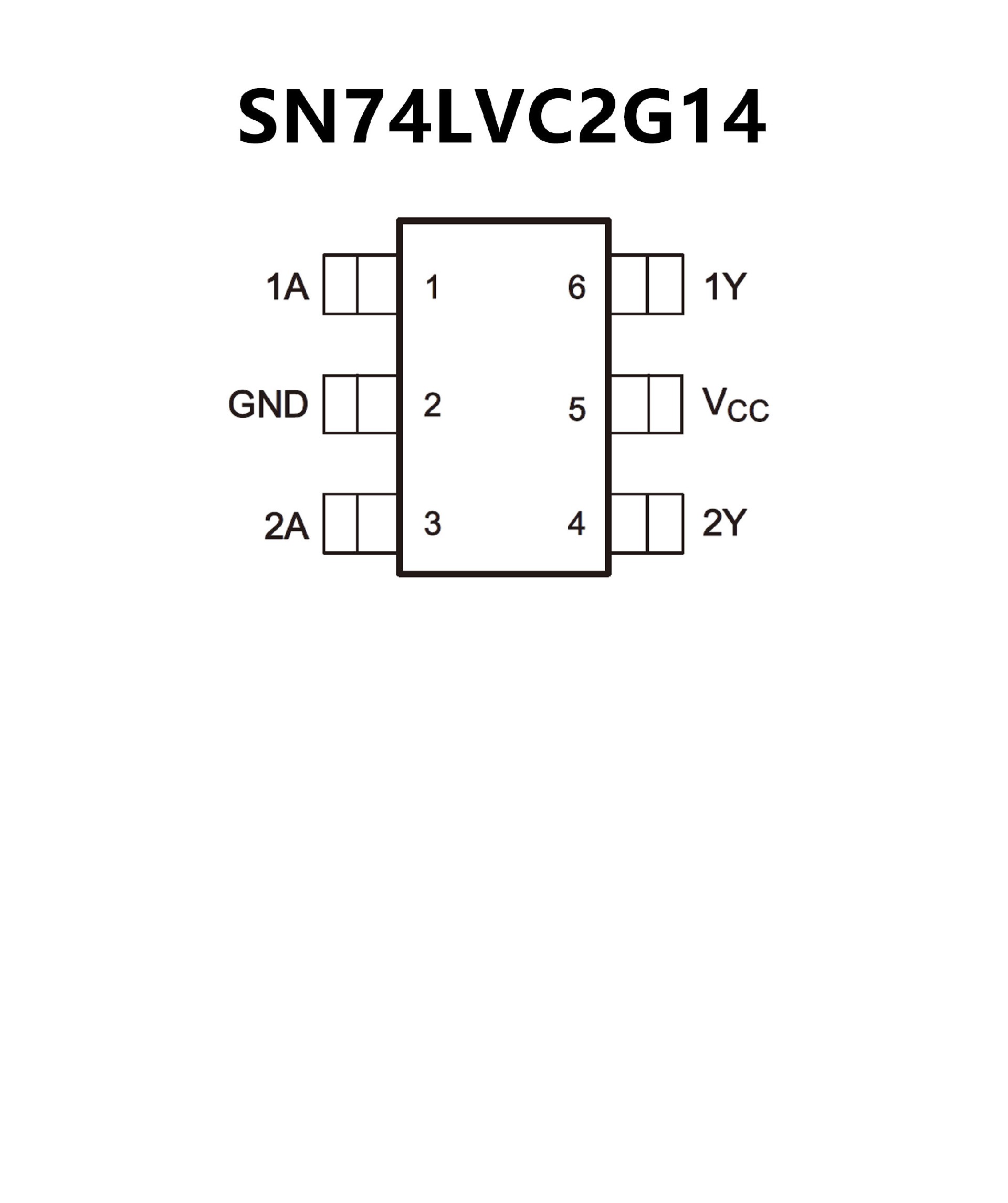

74LVC2G14.pdf? Wide Supply Voltage Range: 1.65V to 5.5V
? 5V Tolerant Inputs for Interfacing with 5V Logic
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Unlimited Rise and Fall Times
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-6 Package
? Available in the TI NanoFree Package
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 5.4 ns at 3.3 V
? Low-Power Consumption, 10-μA Maximum ICC
? ±24-mA Output Drive at 3.3 V
? Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
2 V at VCC = 3.3 V, TA = 25°C
? Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
? Support Translation Down
(5 V to 3.3 V; 3.3 V to 1.8 V)
? Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
