16-Bit D-Type Transparent Latch with 3-State Outputs,74LVCN16373-Replace-74LVC16373ADGG-118.
74LVCN16373
74LVCN16373.pdf
74LVCN16373.pdfFEATURES
? 5V Tolerant Inputs/Outputs for Interfacing with
5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? High-Impedance State When VCC = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-48 Package

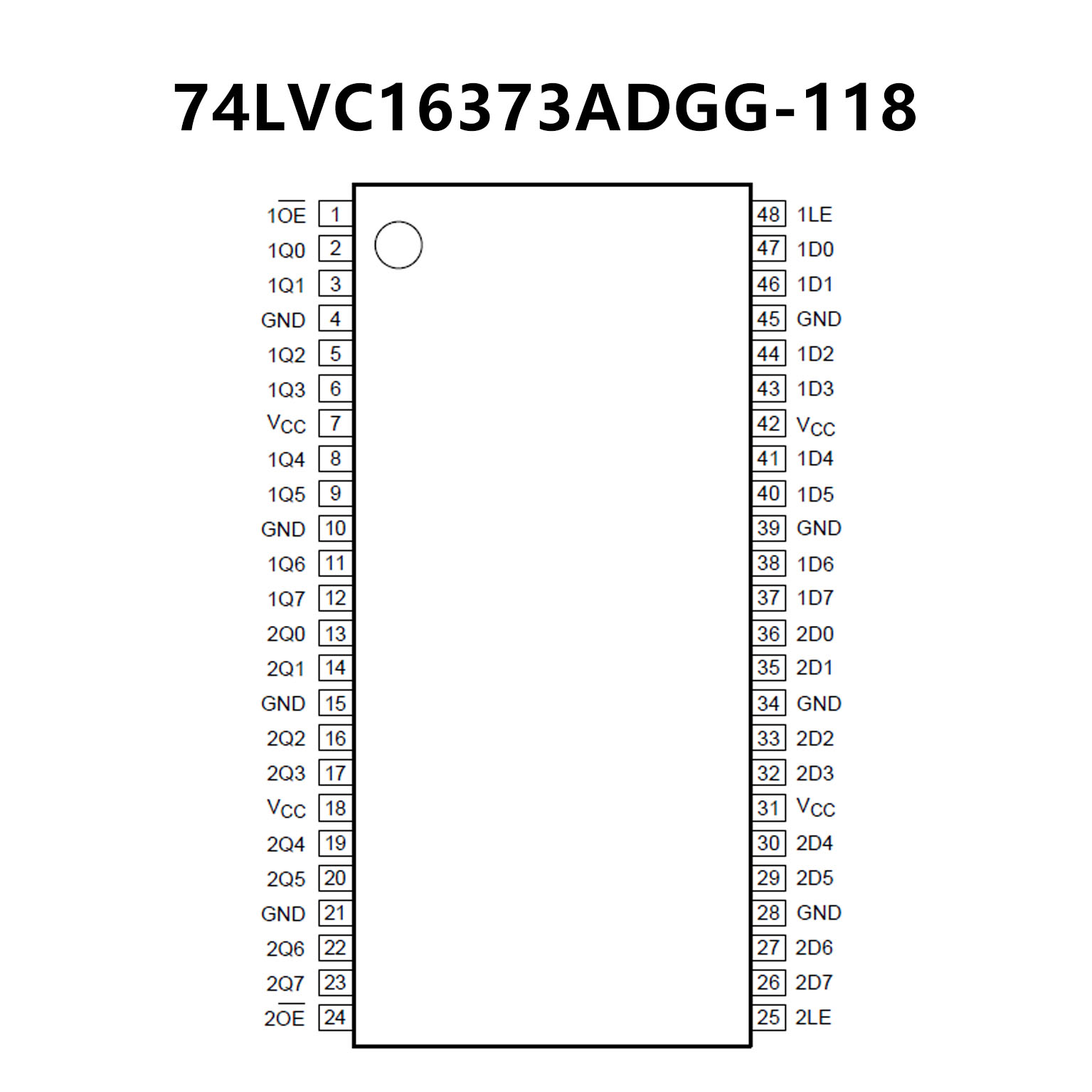

PIN CONFIGUTION
優勢替代
FEATURES
? Overvoltage tolerant inputs to 5.5 V
? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low power dissipation
? MULTIBYTE flow-through standard pinout architecture
? Multiple low inductance supply pins for minimum noise and ground bounce
? Direct interface with TTL levels
? All data inputs have bus hold (74LVCH16373A only)
? IOFF circuitry provides partial Power-down mode operation
? Complies with JEDEC standards:
? JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? CDM ANSI/ESDA/Jedec JS-002 exceeds 1000 V
? Specified from -40 °C to +85 °C and -40 °C to +125 °C

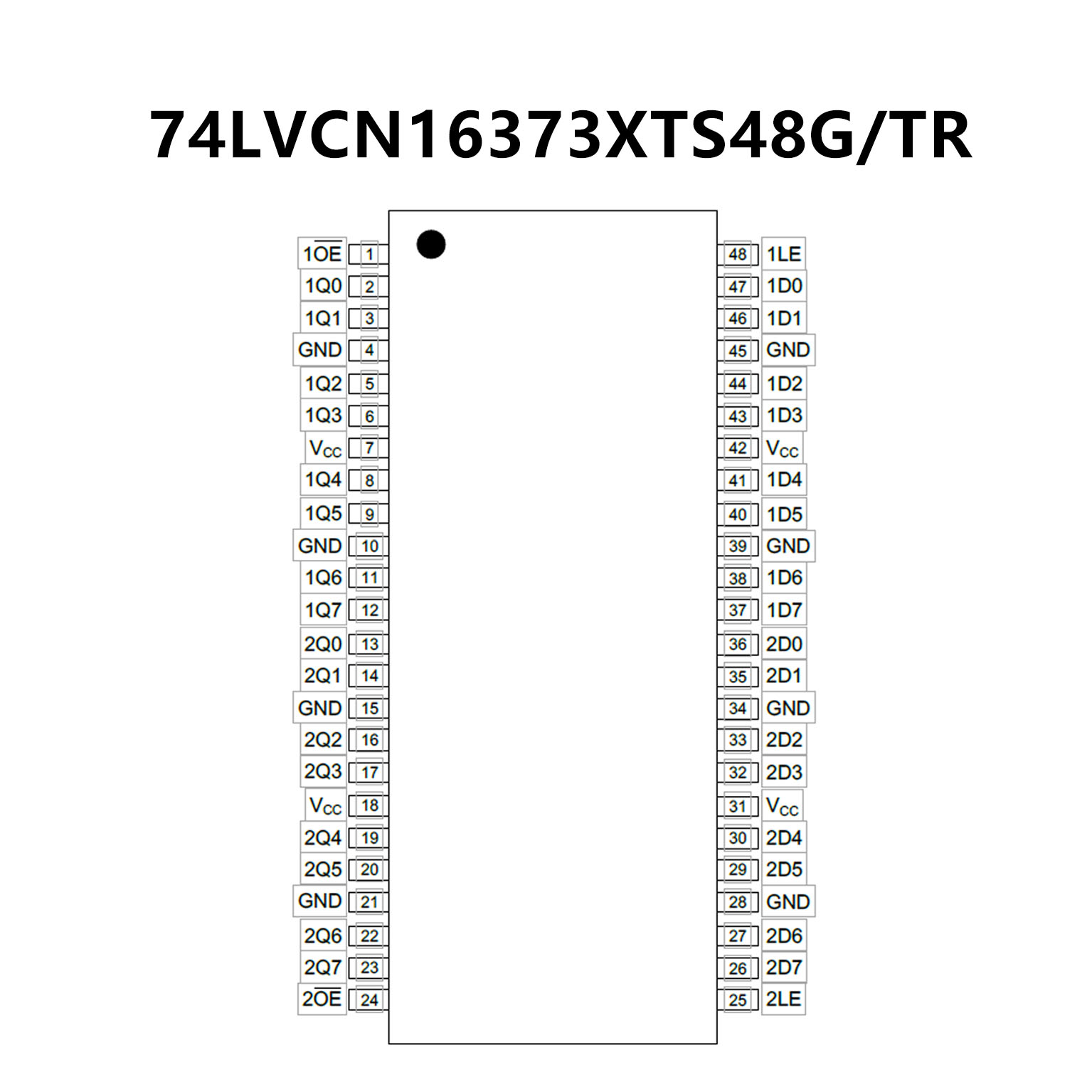

PIN CONFIGUTION
