Octal Buffer/Line Driver with 3-State Outputs,74LVCN244XS20GTR Replace 74ABT244D-623.
74LVCN244
74LVCN244.pdf
74LVCN244.pdfFEATURES
?5V Tolerant Inputs/Outputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
?CMOS Low-Power Consumption
?Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? High-Impedance When VCC = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-20 Packag

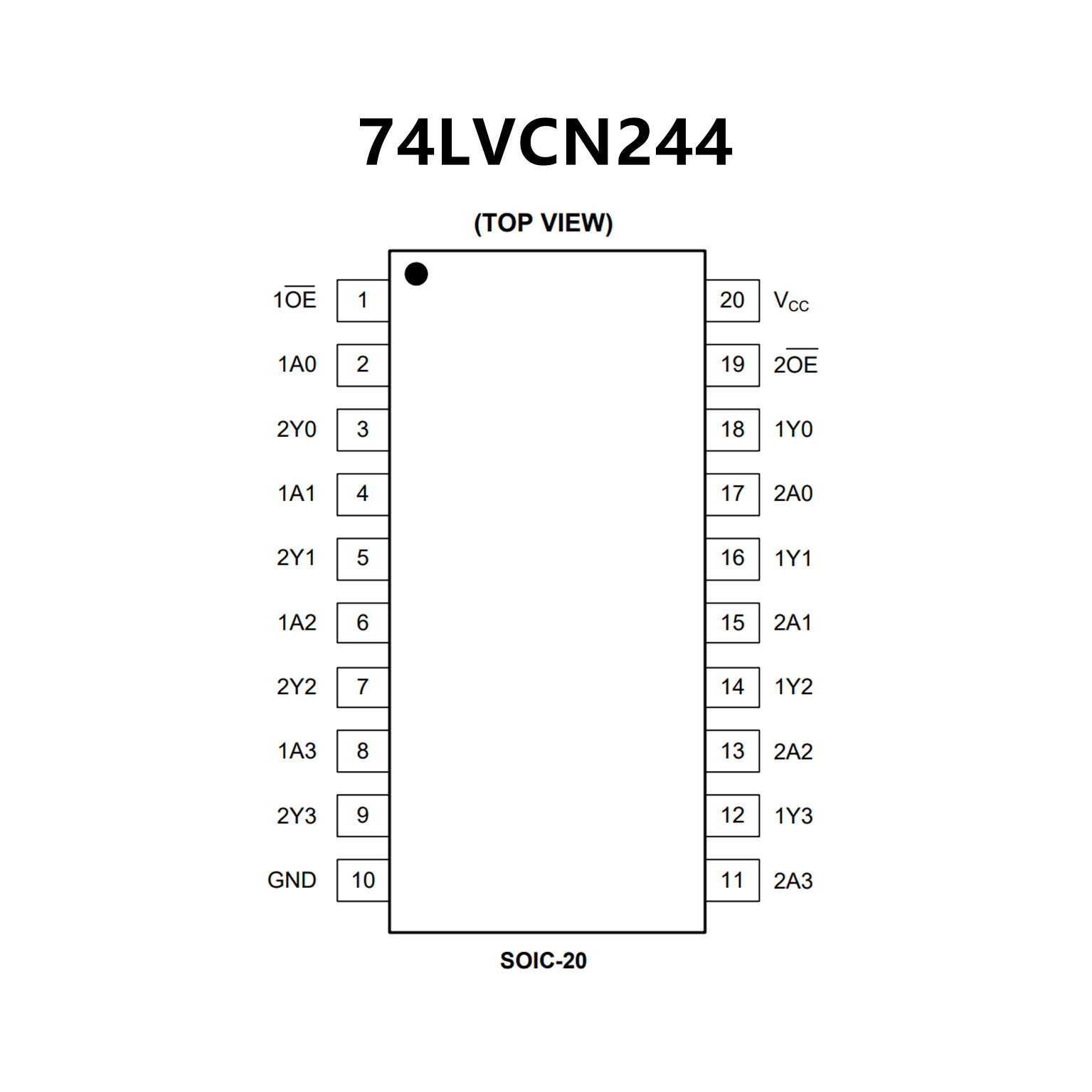

PIN CONFIGUTION

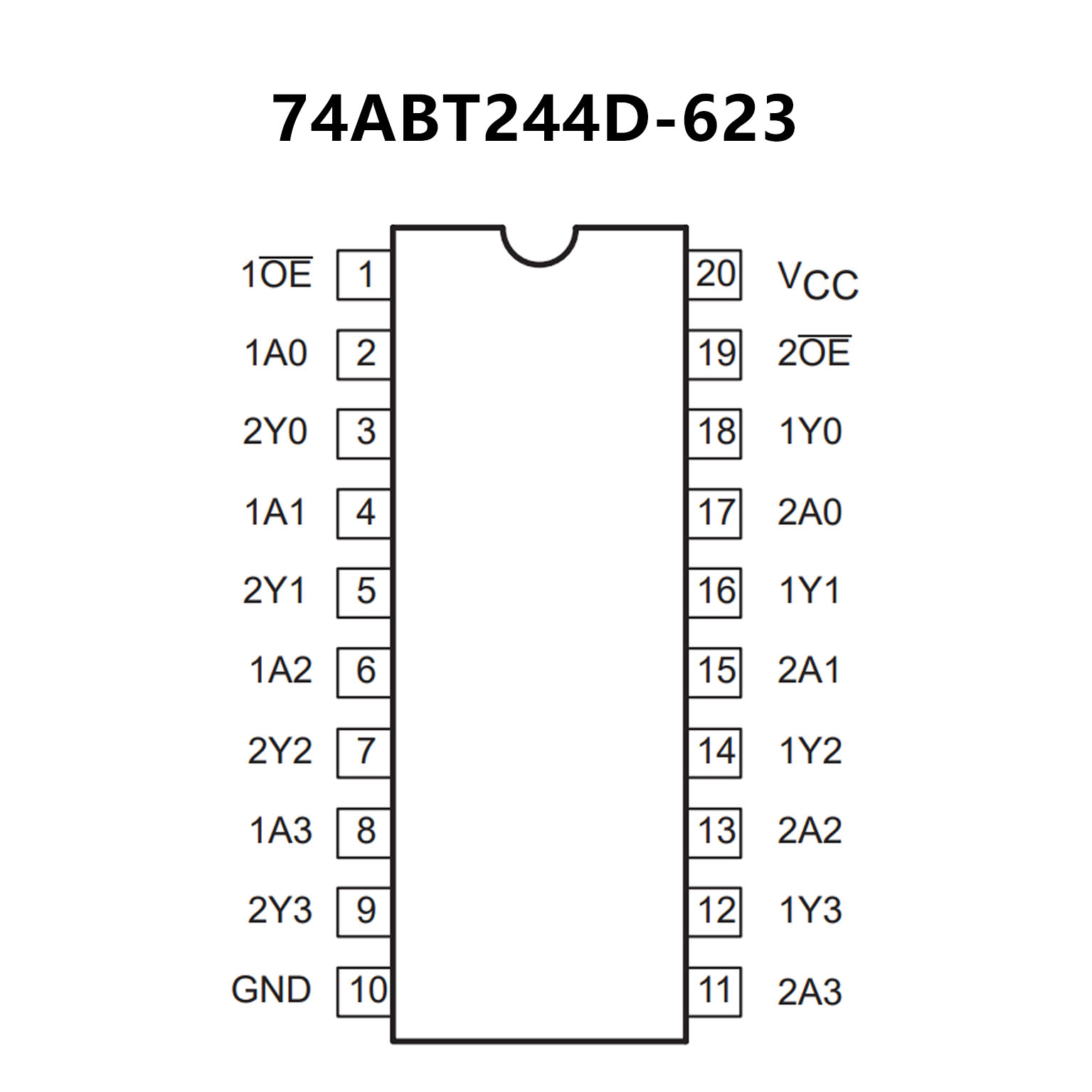

優勢替代
FEATURES
? Octal bus interface
? 3-State buffers
? Output capability: +64mA/–32mA
? Latch-up protection exceeds 500mA per Jedec Std 17
?ESD protection exceeds 2000 V per MIL STD 883
Method 3015 and 200 V per Machine Model
? Power-up 3-State
?Live insertion capacity
? Inputs are disabled during 3-State mod
PIN CONFIGUTION
