3.3V, Quad Buffer/Line Driver with 3-State Outputs,74LVTH125-Replace-74HC125D.
74LVTH125
74LVTH125.pdf
74LVTH125.pdfFEATURES
? Quad Bus Interface
? 3-State Buffers
? Output Capability: +64mA/-32mA
? TTL Input and Output Switching Levels
? Input and Output Interface Capability to
Systems at 5V Supply
? Bus Hold on Data Inputs Eliminates the Need
for External Pull-Up/Pull-Down Resistors
? Live Insertion and Extraction Permitted
? Power-Up 3-State
? No Bus Current Loading When Output is Tied to
5V Bus
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

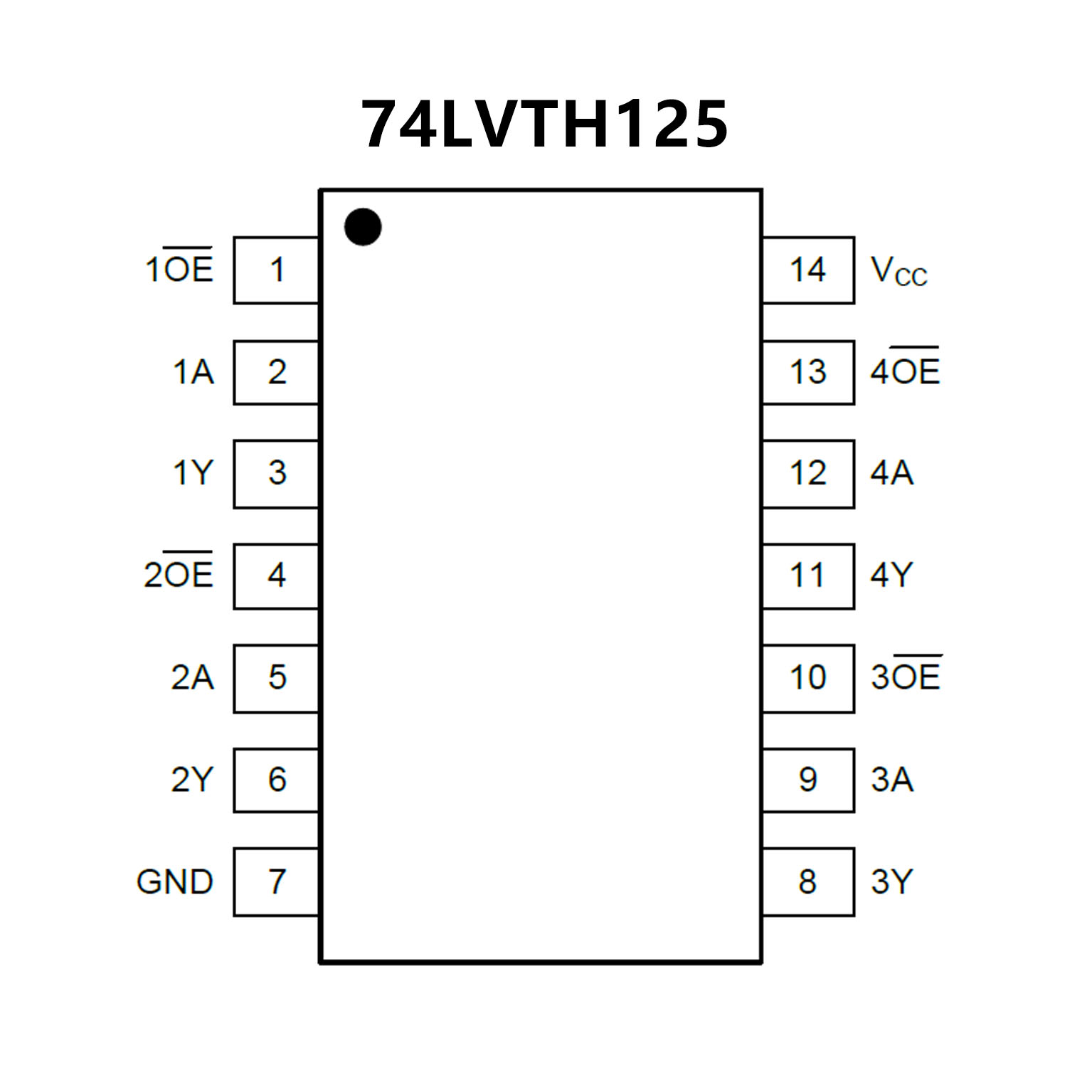

PIN CONFIGUTION
優勢替代
FEATURES
? Complies with JEDEC standard no. 7A
? Input levels:
The 74HC125: CMOS levels
The 74HCT125: TTL levels
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from-40 ℃ to +85 ℃ and from -40℃ to +125 ℃

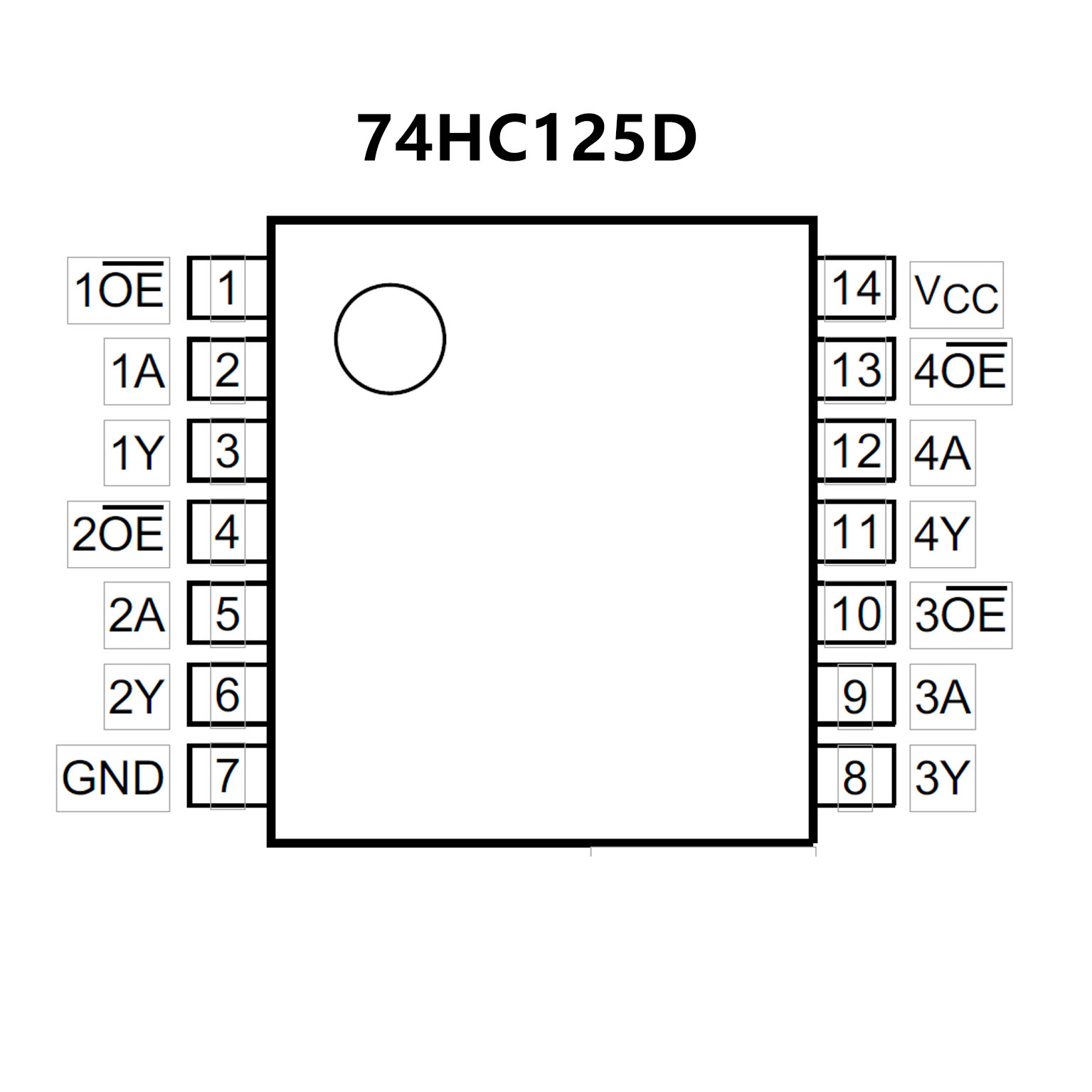

PIN CONFIGUTION
