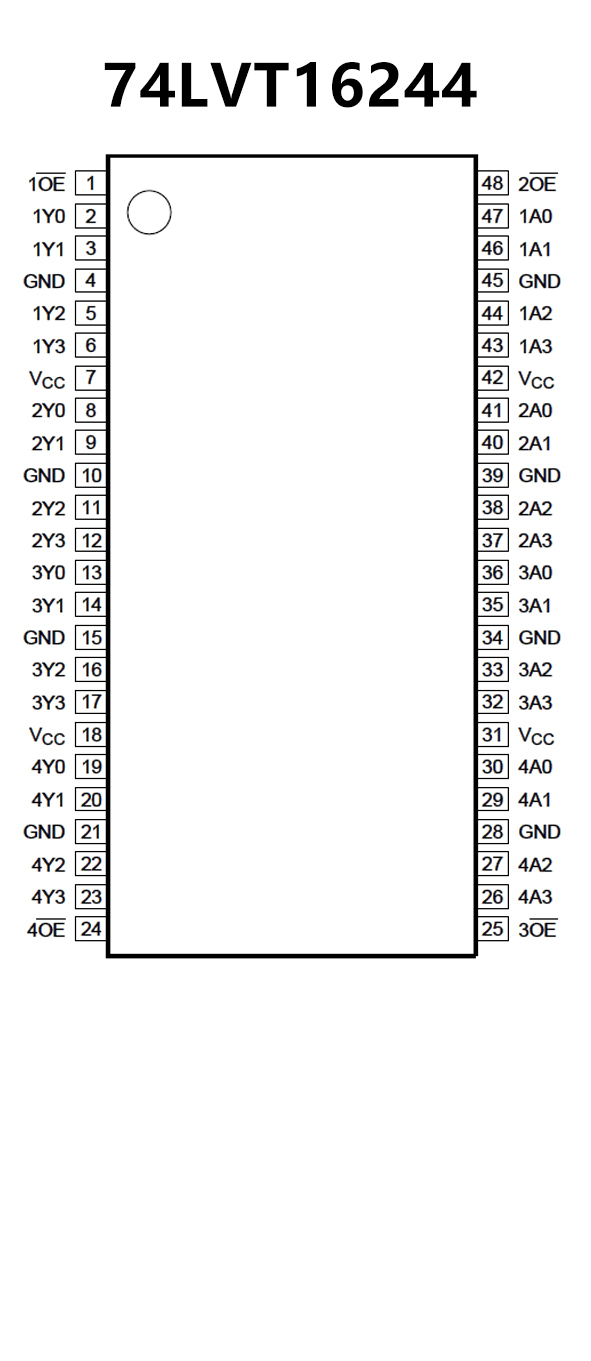

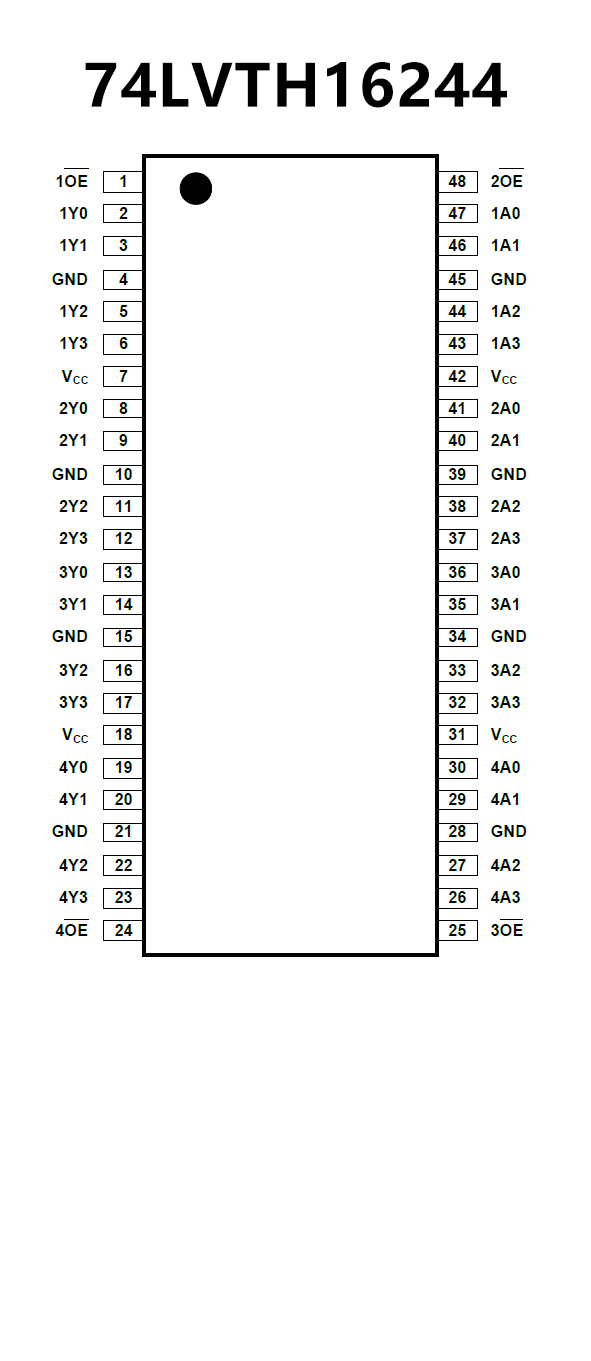

74LVTH16244.pdf? 16-Bit Bus Interface
? 3-State Buffers
? Output Capability: +64mA/-32mA
? TTL Input and Output Switching Levels
? Input and Output Interface Capability to Systems
at 5V Supply
? 74LVTH16244: Bus Hold on Data Inputs
Eliminates the Need for External
Pull-Up/Pull-Down Resistors
? Live Insertion and Extraction Permitted
? Power-Up 3-State
? No Bus Current Loading When Output is Tied to
5V Bus
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-48 Package
? 16-bit bus interface
? 3-state buffers
? Wide supply voltage range from 2.7 to 3.6 V
? Overvoltage tolerant inputs to 5.5 V
? BiCMOS high speed and output drive
? Output capability: +64 mA and -32 mA
? Direct interface with TTL levels
? Bus hold data inputs eliminate need for
external pull-up resistors to hold unused inputs
? Power-up 3-state
? Live insertion and extraction permitted
? No bus current loading when
output is tied to 5 V bus
? IOFF circuitry provides partial
Power-down mode operation
? Latch-up performance exceeds 500
mA per JESD 78 Class II Level B
? Complies with JEDEC standard JESD8C (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? Specified from -40 °C to 85 °C
