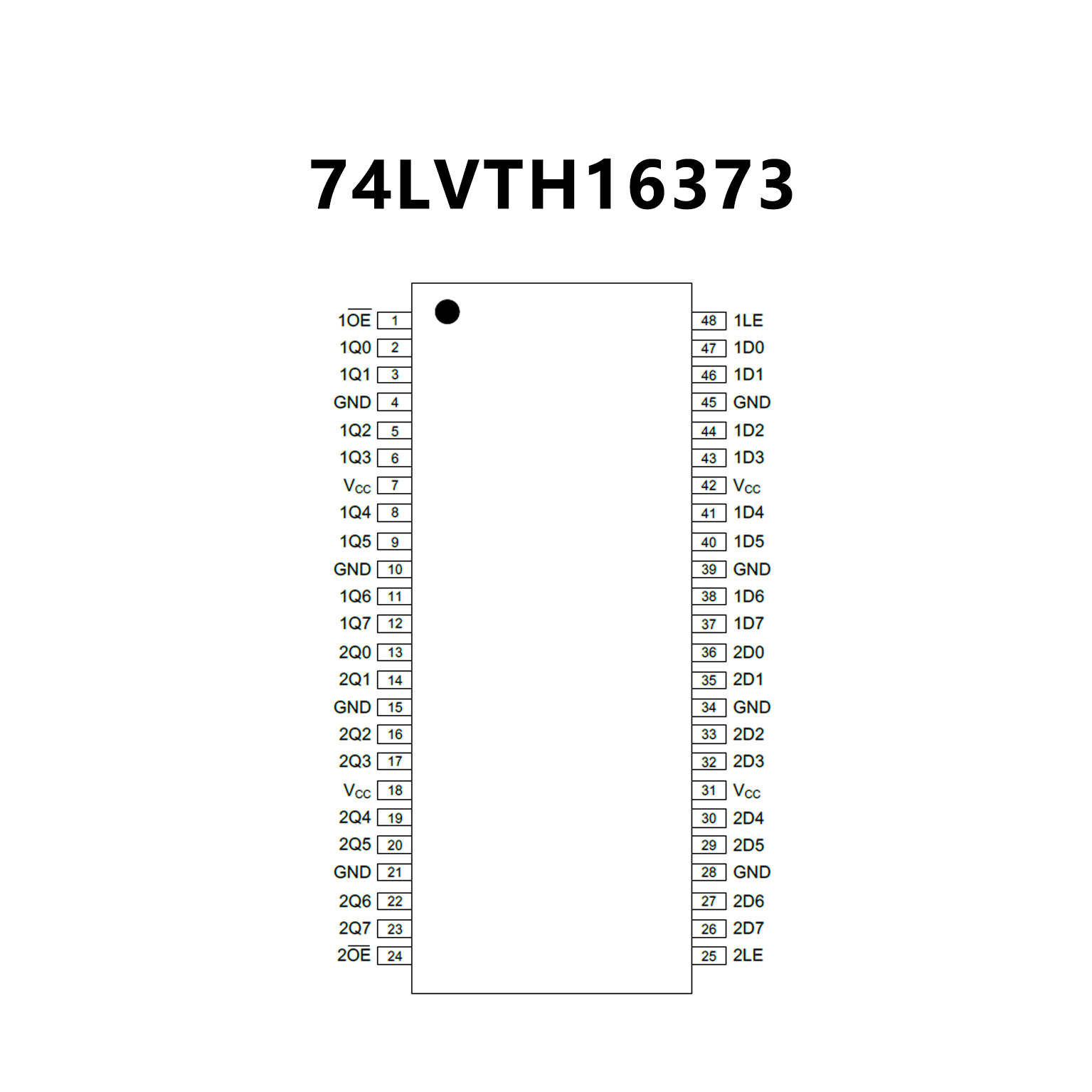

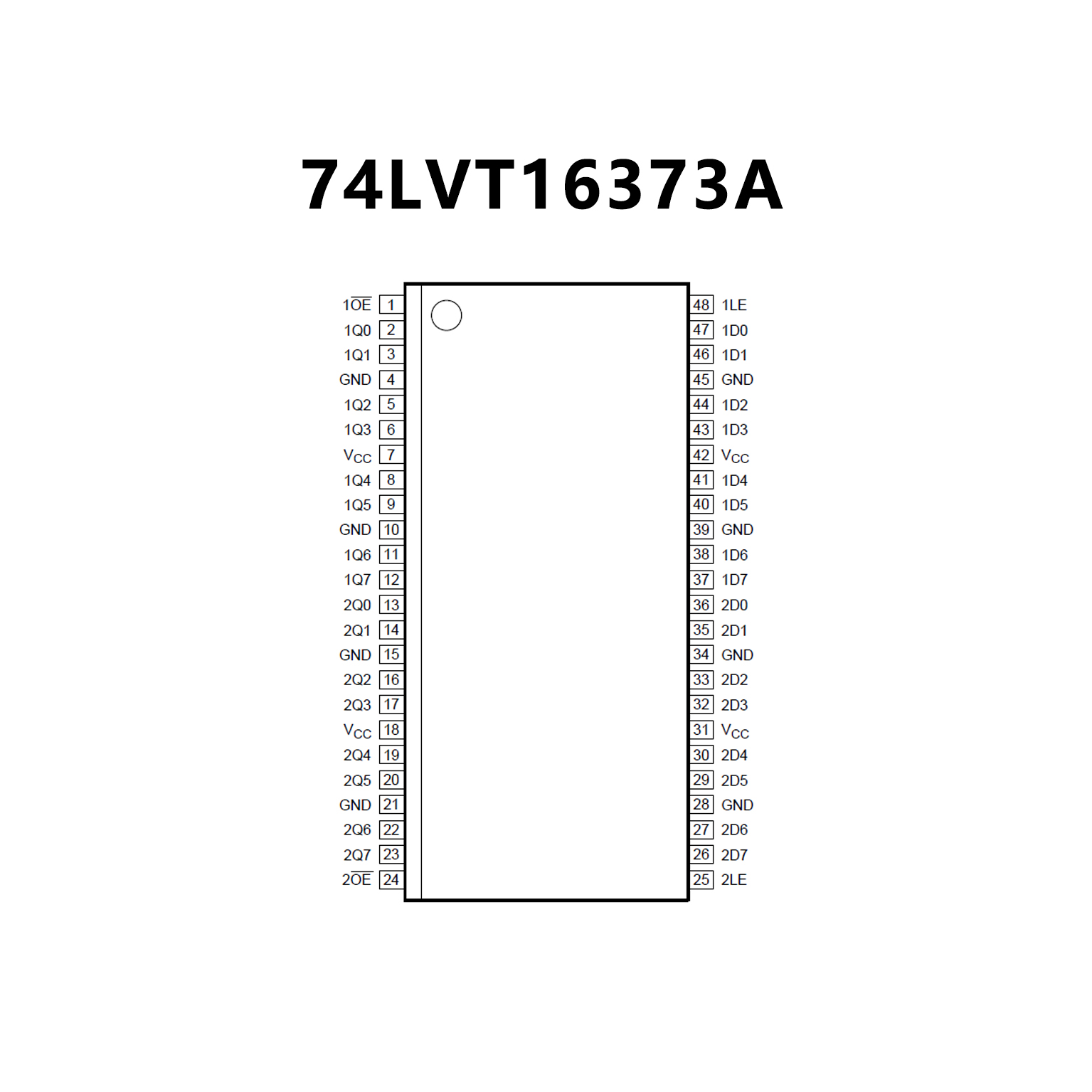

74LVTH16373.pdf? 16-Bit Transparent Latch
? 3-State Buffers
? Output Capability: +64mA/-32mA
? TTL Input and Output Switching Levels
? Input and Output Interface Capability to
Systems at 5V Supply
? Bus Hold on Data Inputs Eliminates
the Need for External Pull-Up/Pull-Down Resistors
? Live Insertion and Extraction Permitted
? Power-Up Reset
? Power-Up 3-State
? No Bus Current Loading When Output is Tied to 5V Bus
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-48 Package
? 16-bit transparent latch
? 3-state buffers
? Wide supply voltage range from 2.7 to 3.6 V
? BiCMOS high speed and output drive
? Output capability: +64 mA/–32 mA
? Direct interface with TTL levels
? Overvoltage tolerant inputs to 5.5 V
? Bus-hold data inputs eliminate the
need for external pull-up resistors to hold unused inputs
? Live insertion/extraction permitted
? Power-up reset
? Power-up 3-state
? No bus current loading when output is tied to 5 V bus
? IOFF circuitry provides partial Power-down mode operation
? Latch-up performance exceeds 500 mA per
JESD 78 Class II Level B
? Complies with JEDEC standard JESD8C (2.7 V to 3.6 V)
? ESD protection:
? HBM: JESD22-A114F exceeds 2000 V
? MM: JESD22-A115-A exceeds 200 V
? Specified from -40 °C to 85 °C
