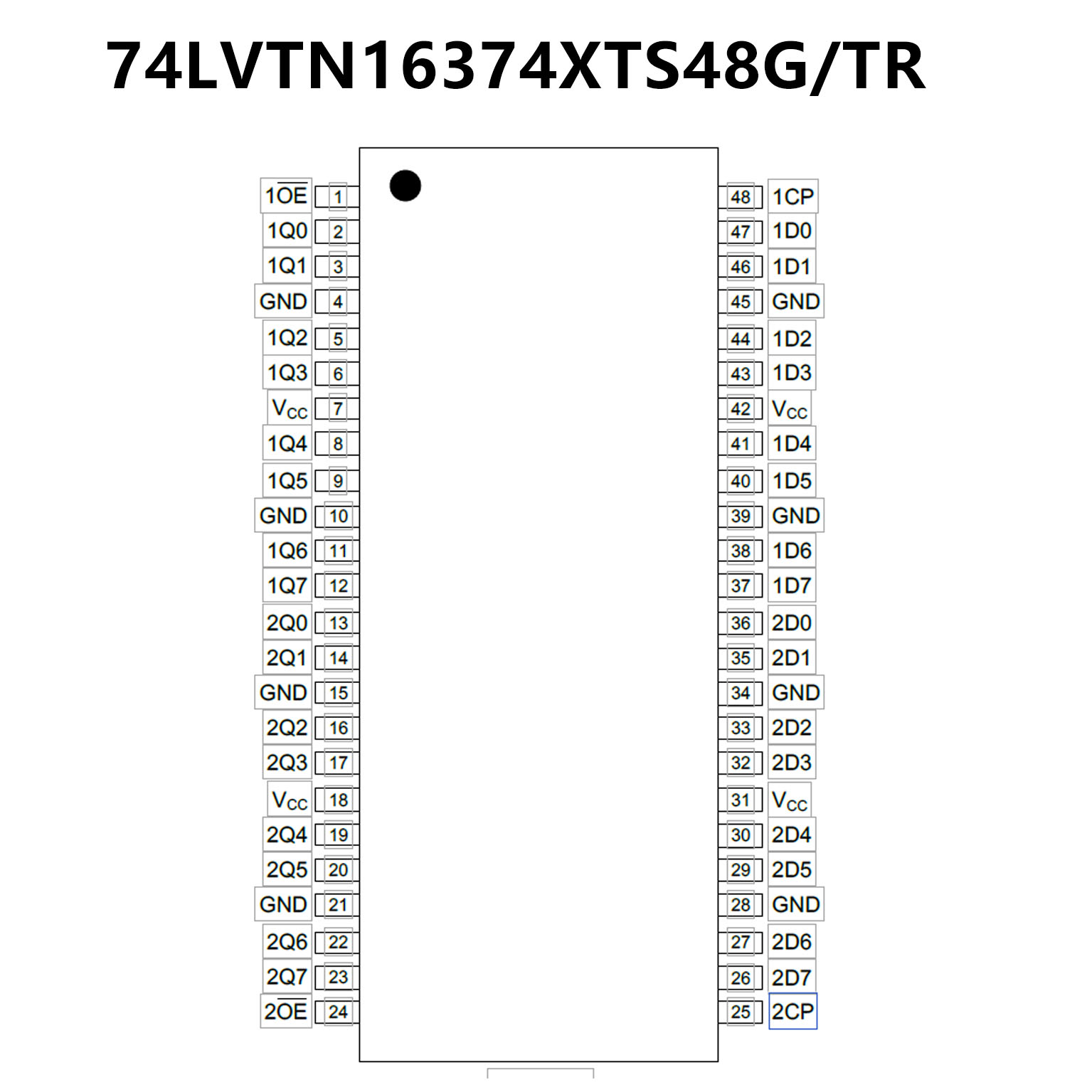

74LVTN16374.pdf?16 Bit Edge Triggered Flip-Flop
? 3 State Buffers
? Output Capability: 64mA 32mA
? TTL Input and Output Switching Levels
? Input and Output Interface Capability to Systems at 5V Supply
? Live Insertion and Extraction Permitted
? PowerUp Reset
? PowerUp 3 State
? No Bus Current Loading When Output is Tied to 5V Bus
? 40℃ to 125℃ Operating Temperature Range
? Available in a Green TSSOP 48 Package
? 16bit edge triggered flip-flop
? 3 state buffers
? Output capability:
64 mA and 32 mA
? Wide supply voltage range from 2.7 to 3.6 V
? Overvoltage tolerant inputs to 5.5 V
? BiCMOS high speed and output drive
? Direct interface with TTL levels
? Input and output interface capability to systems at 5 V supply
? Bus hold data inputs eliminate the need for external pull up
resistors to hold unused inputs. (74LVTH16374A only)
? Live insertion and extraction permitted
? Power-up reset
? Powerup 3 state
? No bus current loading when output is tied to 5 V bus
? IOFF circuitry provides partial Power-down mode operation
? Latch up performance exceeds 500 mA per JESD 78 Class II Level B
? Complies with JEDEC standard JESD8C (2.7 V to 3.6 V)
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Specified from 40 °C to 85 °C
