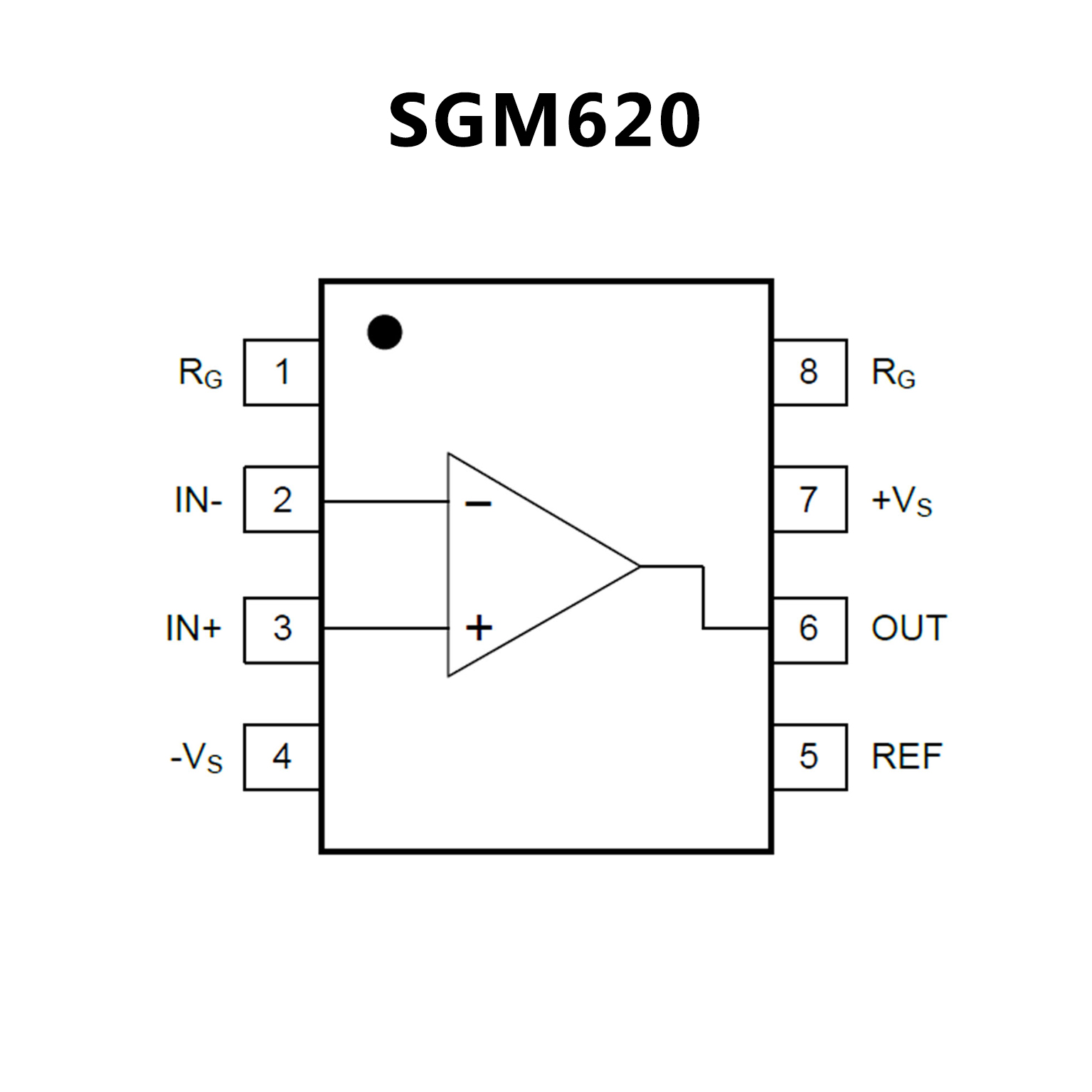

SGM620.pdf? Single External Resistor Gain Set (Set Gain from 1 to 10000)
? Input Offset Voltage: 150μV (MAX)
? Input Bias Current: 15nA (TYP)
? Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
? Input Voltage Noise: 6nV/√Hz at 1kHz
? 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
? Bandwidth: 140kHz (G = 100)
? Settling Time to 0.01%: 10μs (G = 100)
? Rail-to-Rail Output
? Support Single or Dual Power Supplies: 4.6V to 36V or ±2.3V to ±18V
? Low Power Supply Current: 1.3mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

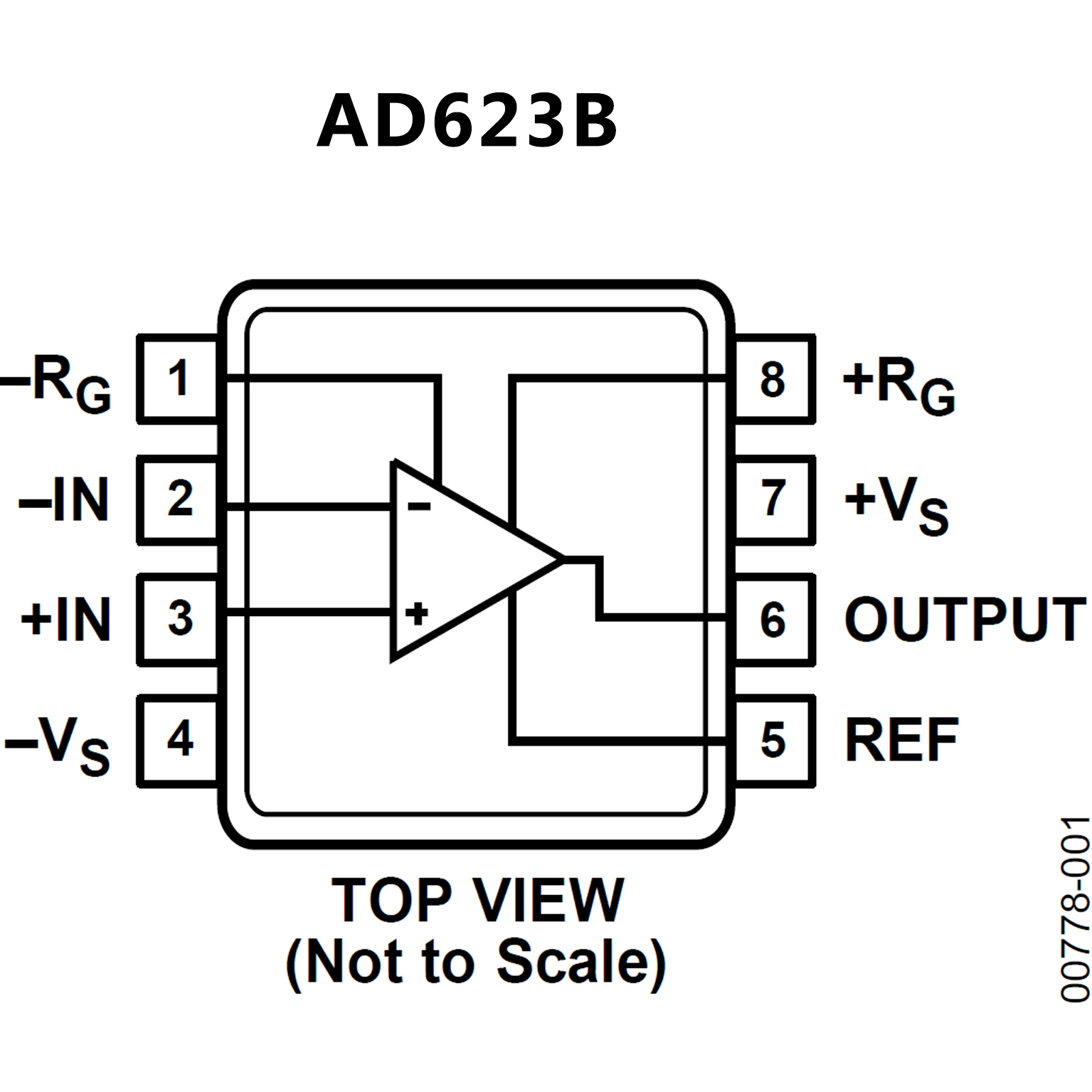

? Easy to use
? Rail-to-rail output swing
? Input voltage range extends 150 mV below ground
(single supply)
? Low power, 550 μA maximum quiescent current
? Gain set with one external resistor
Gain range: 1 to 1000
? High accuracy dc performance
0.10% gain error (G = 1)
0.35% gain error (G > 1)
? Noise: 35 nV/√Hz RTI noise at 1 kHz
? Optimal dynamic specifications
800 kHz bandwidth (G = 1)
20 μs settling time to 0.01% (G = 10)
