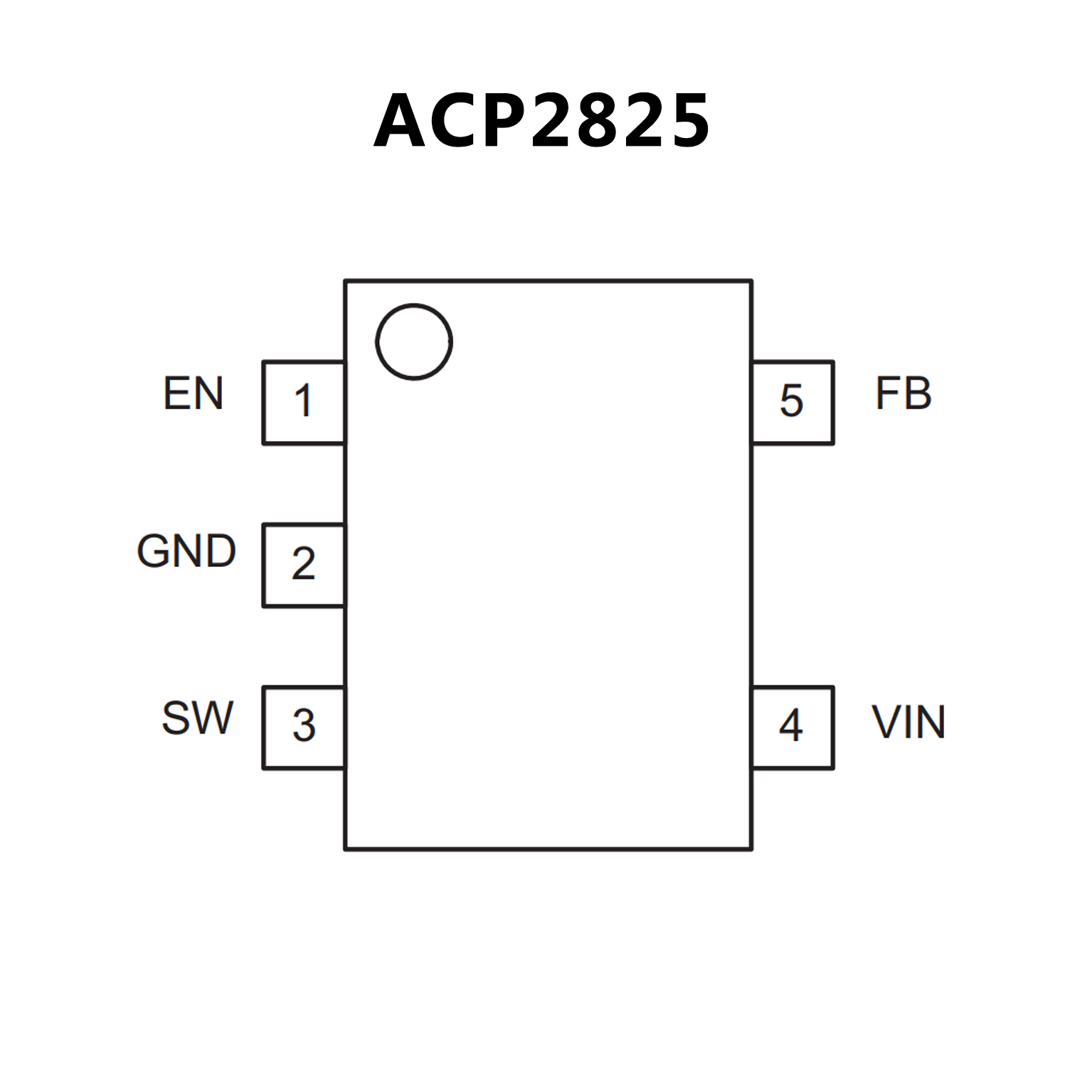

ACP2825.pdf? Input Voltage Range: 2.5V to 6V
? Output Current: 1.2A
? Adjustable Output with 0.6V Reference Voltage
? Automatic PFM Mode at Light Load
? Low Dropout 100% Duty Operation
? 1.5MHz Programmable Frequency
? Maximum 65μA Quiescent Current
? Internal Soft Start Function
? Excellent Line and Load Transient Response
? Short Circuit Protection
? Input Over Voltage Protection
? Under Voltage Lockout Protection
? Efficiency Up to 95%

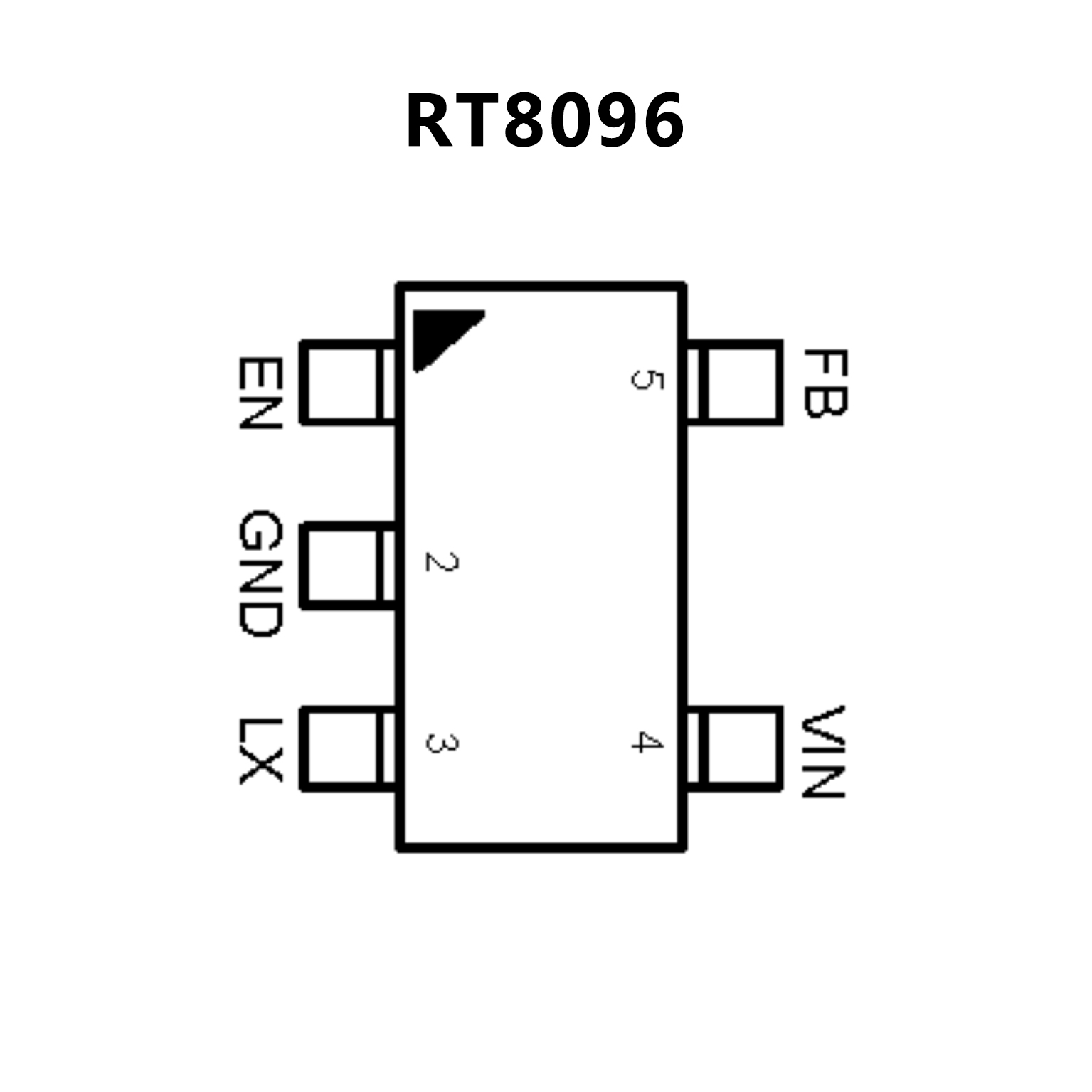

? RDSON 160mΩHS / 110mΩ LS
? VIN Range 2.5V to 6V
? VREF 0.6V with ±2% Accuracy
? CMCOT? Control Loop Design for Best
Transient Response, Robust Loop Stability with
Low-ESR (MLCC) COUT
? Cycle-by-Cycle Over-Current Protection
? Input Under-Voltage Lockout
? Output Under-Voltage Protection (UVP Hiccup)
? Thermal Shutdown Protection
? Power Saving at Light Load
