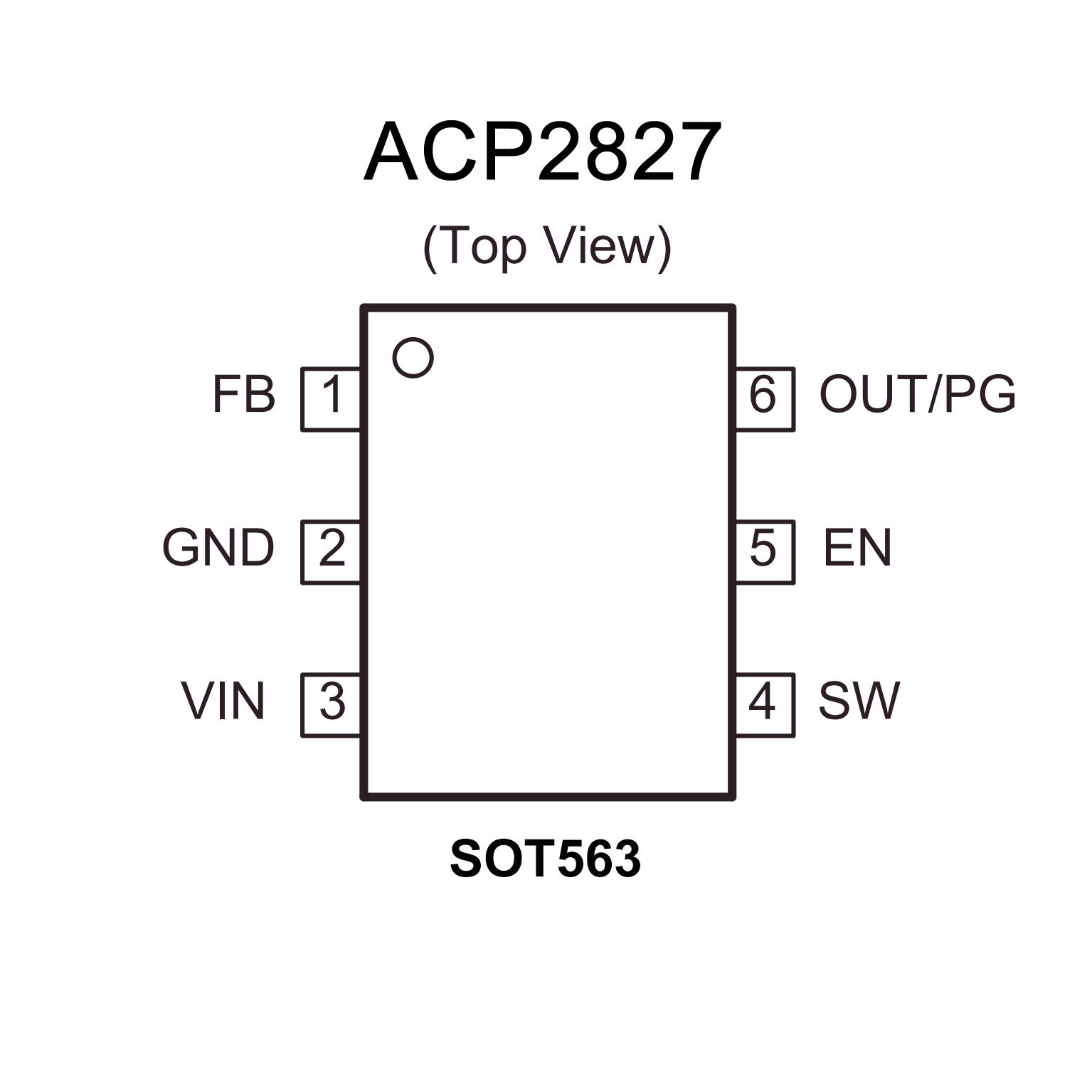

ACP2827.pdf? VIN : 2.3V to 5.5V
? Output Voltage (VOUT) : 0.6V to 3.6V
? 1A Continuous Output Current
? 0.6V ± 2% Reference Voltage
? 15μA Low Quiescent Current
? 2.2MHz Switching Frequency (VIN = 5V, VOUT= 1.8V)
? Up to 89% Efficiency at 5mA Light Load
? Programmable PFM/PWM Mode Through EN Pin
? Power Good Indicator(ACP2827B)
? Under Voltage Lockout (UVLO)
? VIN Over Voltage Protection (OVP)
? Peak Current Limit
? Valley Current Limit
? Thermal Shutdown
? Low IQ: 11μA
? 2.2MHz Switching Frequency
? EN for Power Sequencing
? Wide 2.3V to 5.5V Operating Input Range
? Output Adjustable from 0.6V
? Up to 2A Output Current
? 120m? and 80m? Internal Power MOSFET Switches
? Output Discharge
? Short-Circuit Protection (SCP) with Hiccup Mode
? Stable with Low ESR Output Ceramic Capacitors

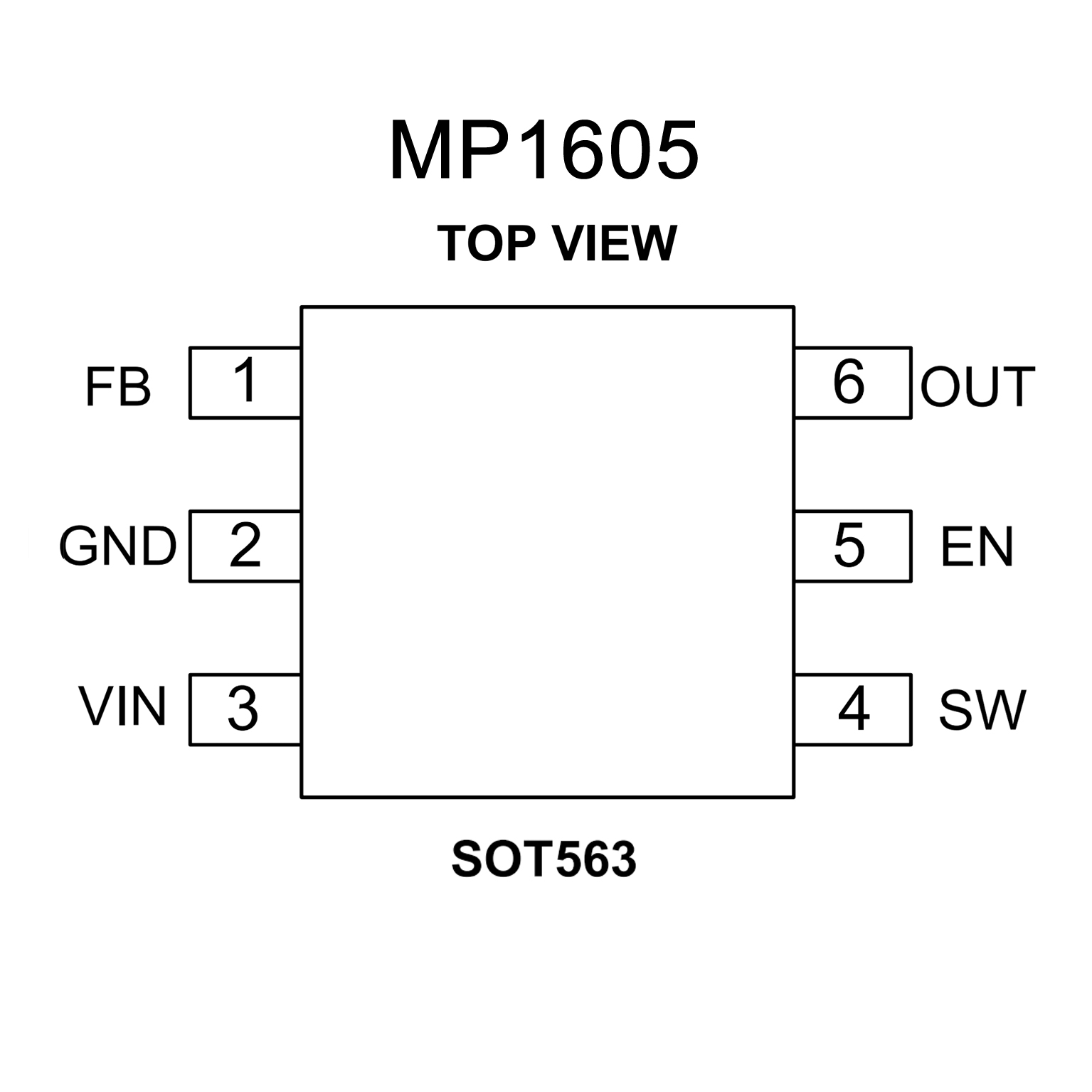

? Available in a SOT563 Package
? 100% Duty Cycle
