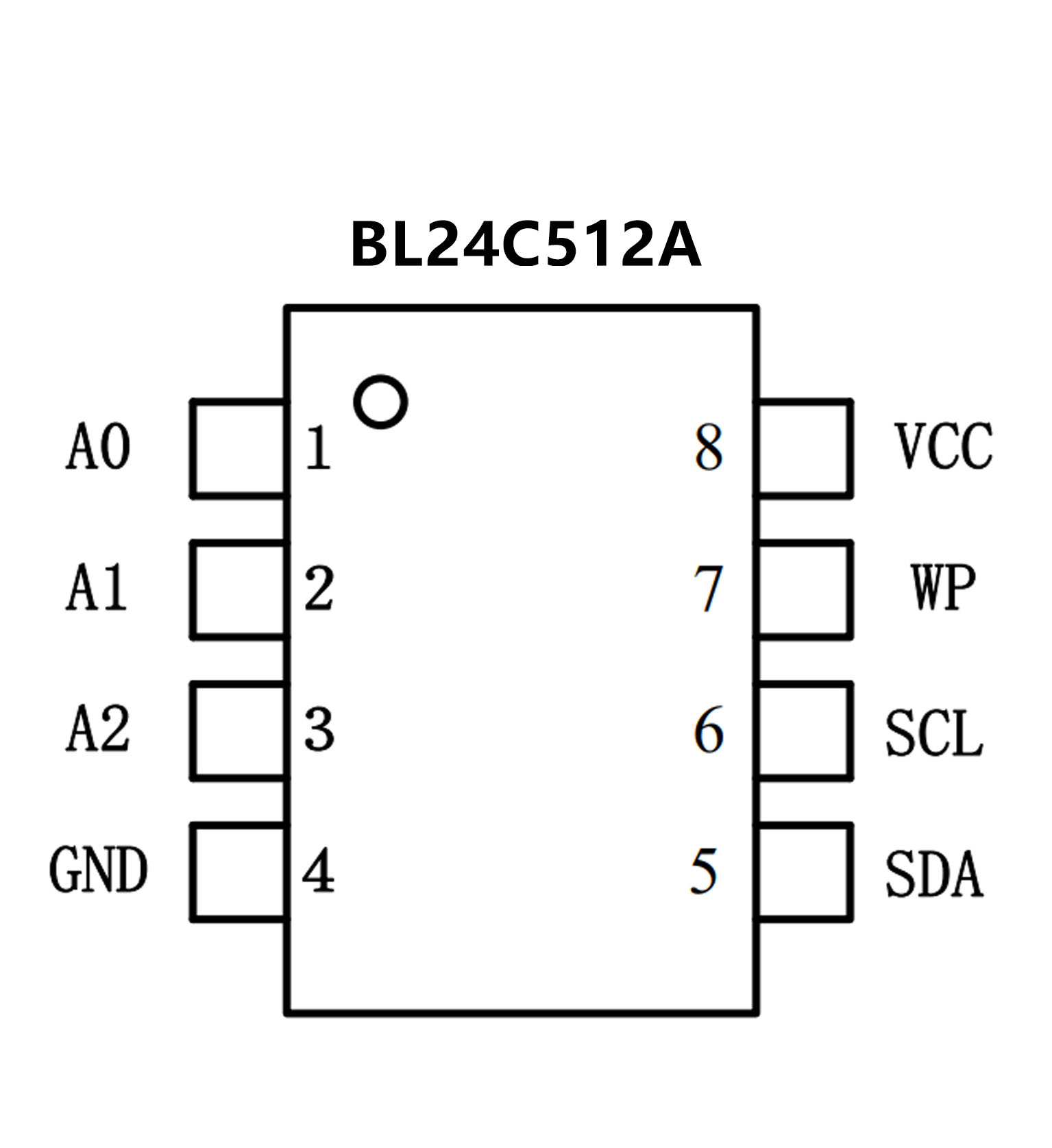

BL24C512A.pdf?Compatible with all I2C bidirectional
data transfer protocol
? Memory array:
512 Kbits (64 Kbytes) of EEPROM
Page size: 128 bytes
Additional Write lockable page
? Single supply voltage and high speed:
1 MHz
? Random and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Write Protect Pin for Hardware Data Protection
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? High-reliability
Endurance: 4 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
HBM 8000V
? 8-lead PDIP/SOP/TSSOP/UDFN packages

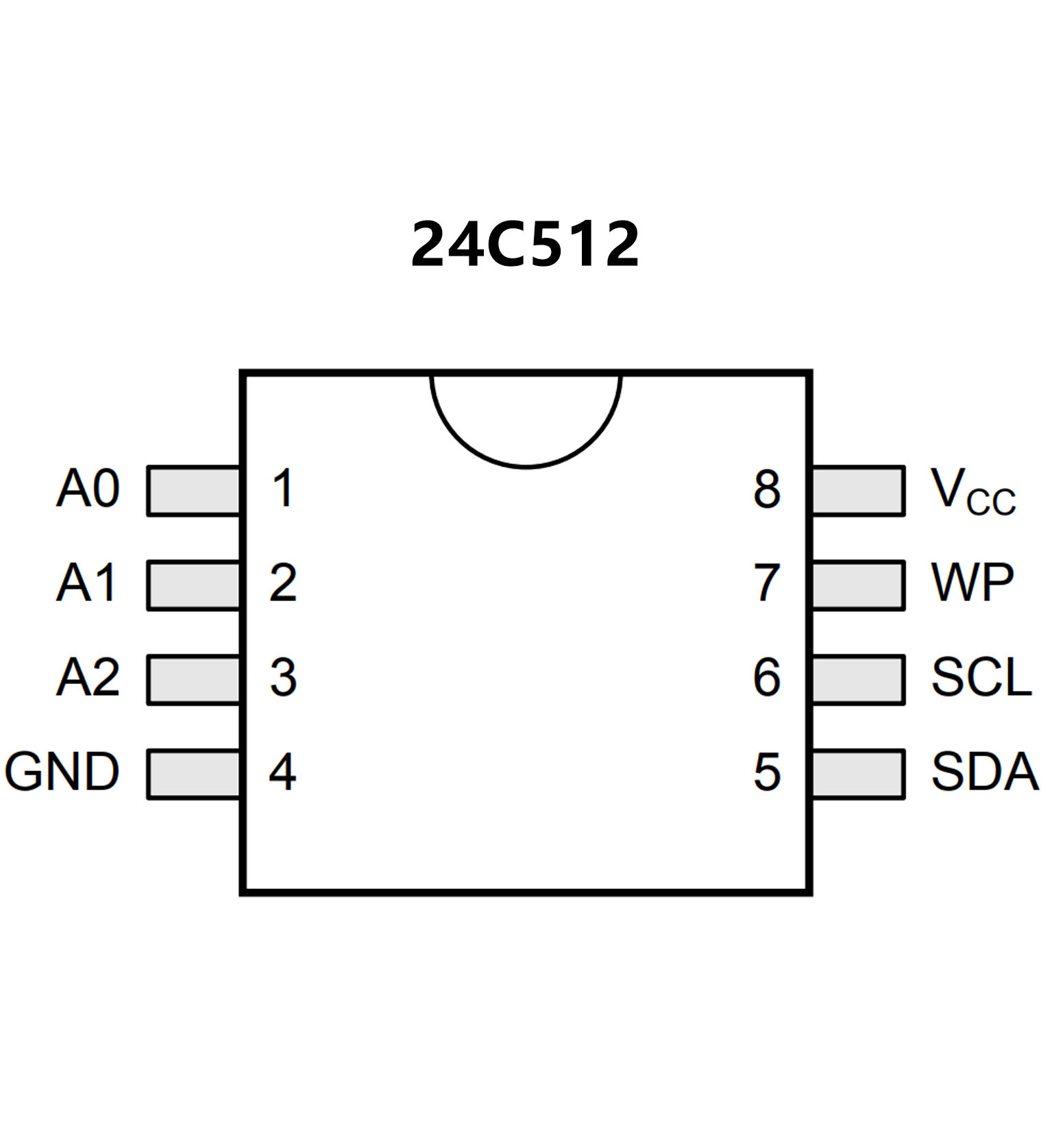

? Two-Wire Serial Interface, I2 CTM Compatible
Bi-directional data transfer protocol
? Wide-voltage Operation
VCC = 1.7V to 5.5V
? Speed: 400 KHz (1.7V) and 1 MHz (2.5V~5.5V)
? Standby current (max.): 1μA, 1.7V
? Operating current (max.): 2 mA, 1.7V
? Hardware Data Protection
Write Protect Pin
? Sequential & Random Read Features
? Memory organization: 65,536 x 8 bits
? Page Size: 128 bytes
? Page write mode
Up to 128 bytes per page write
? Self timed write cycle with auto clear: 5ms (max.)
? Filtered inputs for noise suppression
? High-reliability
Endurance: 1 million cycles
Data retention: 100 years
? Industrial temperature grades
? Packages: SOIC, TSSOP, DFN and CSP
? Lead-free, RoHS, Halogen free, Green
