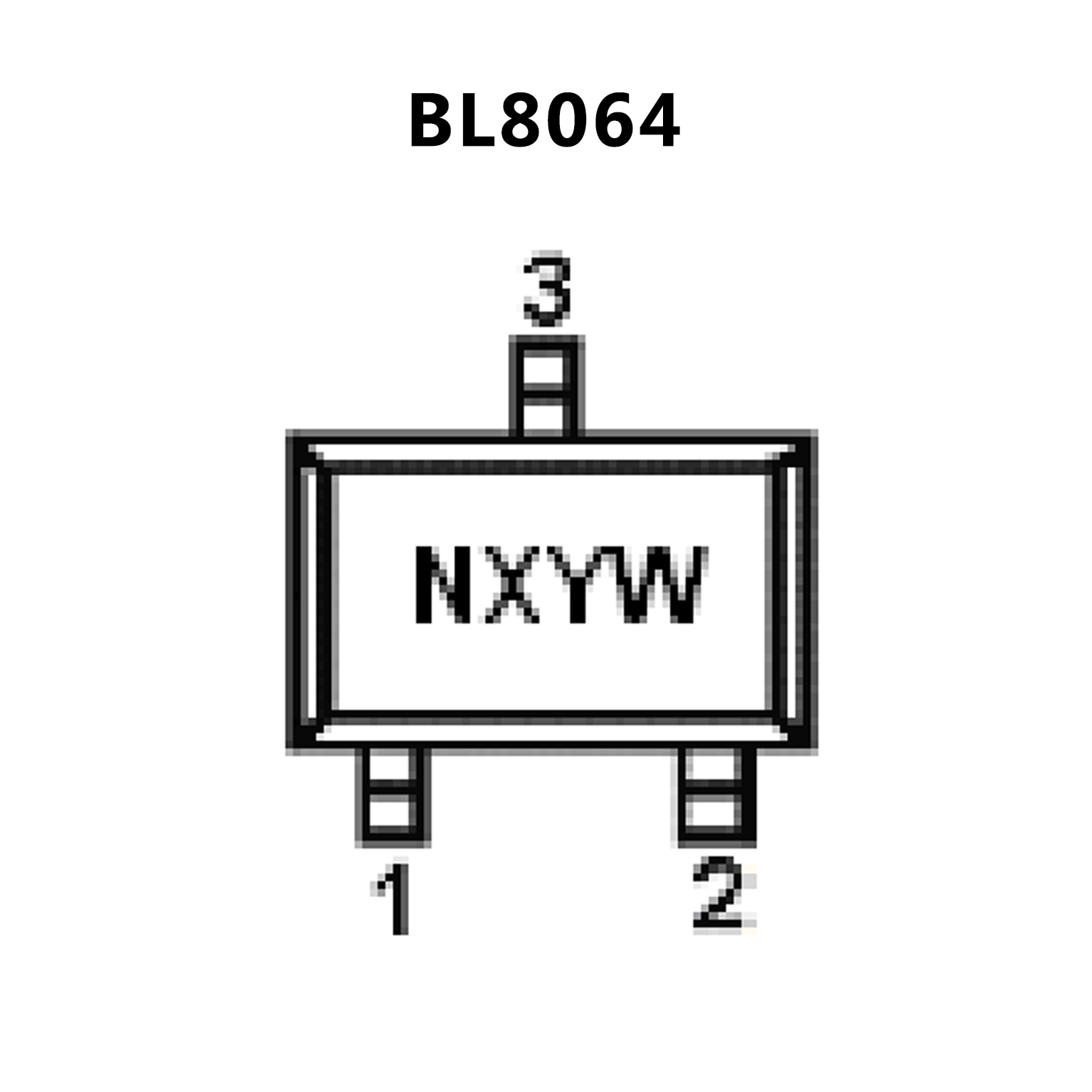

BL8064.pdf? Low Power Consumption:1.0μA（Typ.）
? Maximum Output Current:200mA
? Small Dropout Voltage
? 210mV@100mA (VOUT=2.8V)
? 430mV@200mA (VOUT=2.8V)
? Input Voltage Range:1.5V~6V
? Output Voltage Range:1.1V~5.5V
(customizedon command in 0.1V steps)
? Highly Accurate:±2% (±1% customized）
? Output Current Limit
? Maximum Output Current: 200mA (3.0V type)
? Dropout Voltage : 250mV @ 100mA (3.0V type)
? Maximum Operating Voltage : 6.0V
? Output Voltage Range: 1.2V ~ 5.0V (0.1V increments)
? Highly Accurate :±2%@VOUT≧1.5V
+30mV@VOUT<1.5V(+1% @VOUT>2.0V)
? Low Power Consumption : 1.0μA (TYP.)
? Low ESR Capacitor : Ceramic capacitor compatible
? Protection: Current Limit Circuit Built-in
? Operating Ambient Temperature : -40℃~ +85℃
? Packages: SOT-23SOT-89USP-6B
? Environmentally Friendly: EU RoHS Compliant, Pb Free
