600 V高邊和低邊驅(qū)動器IC, 具有關(guān)斷功能, BLD2113 Replace IR2113.
BLD2113.pdf優(yōu)勢替代
FEATURES
? Floating channel designed for bootstrap operation
Fully operational to +500V or +600V
Tolerant to negative transient voltage dV/dt immune
? Gate drive supply range from 10 to 20V
? Undervoltage lockout for both channels
? 3.3V logic compatible Separate logic supply range
from 3.3V to 20V Logic and power ground ±5V offset
? CMOS Schmitt-triggered inputs with pull-down
? Cycle by cycle edge-triggered shutdown logic
? Matched propagation delay for both channels
? Outputs in phase with inputs

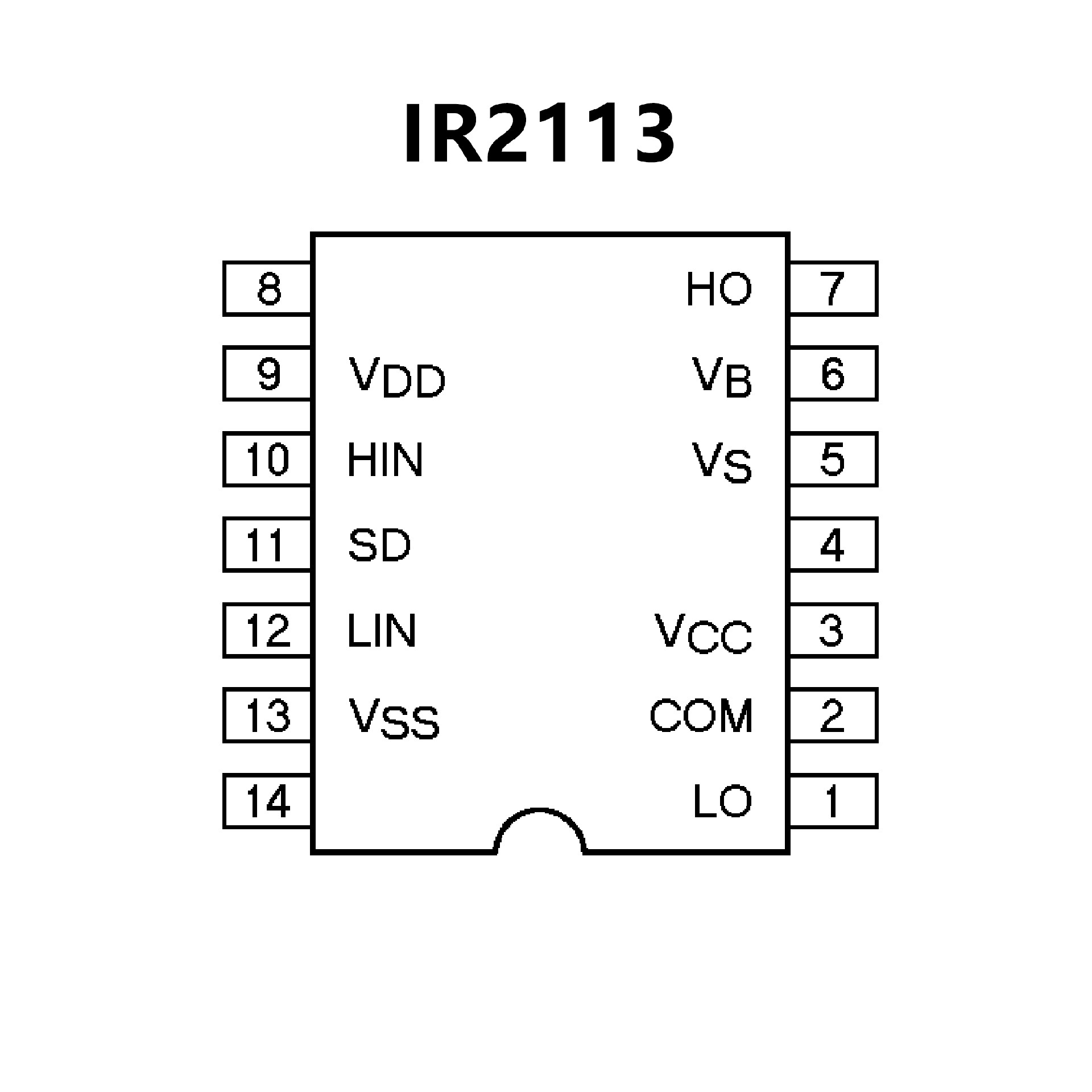

PIN CONFIGUTION
