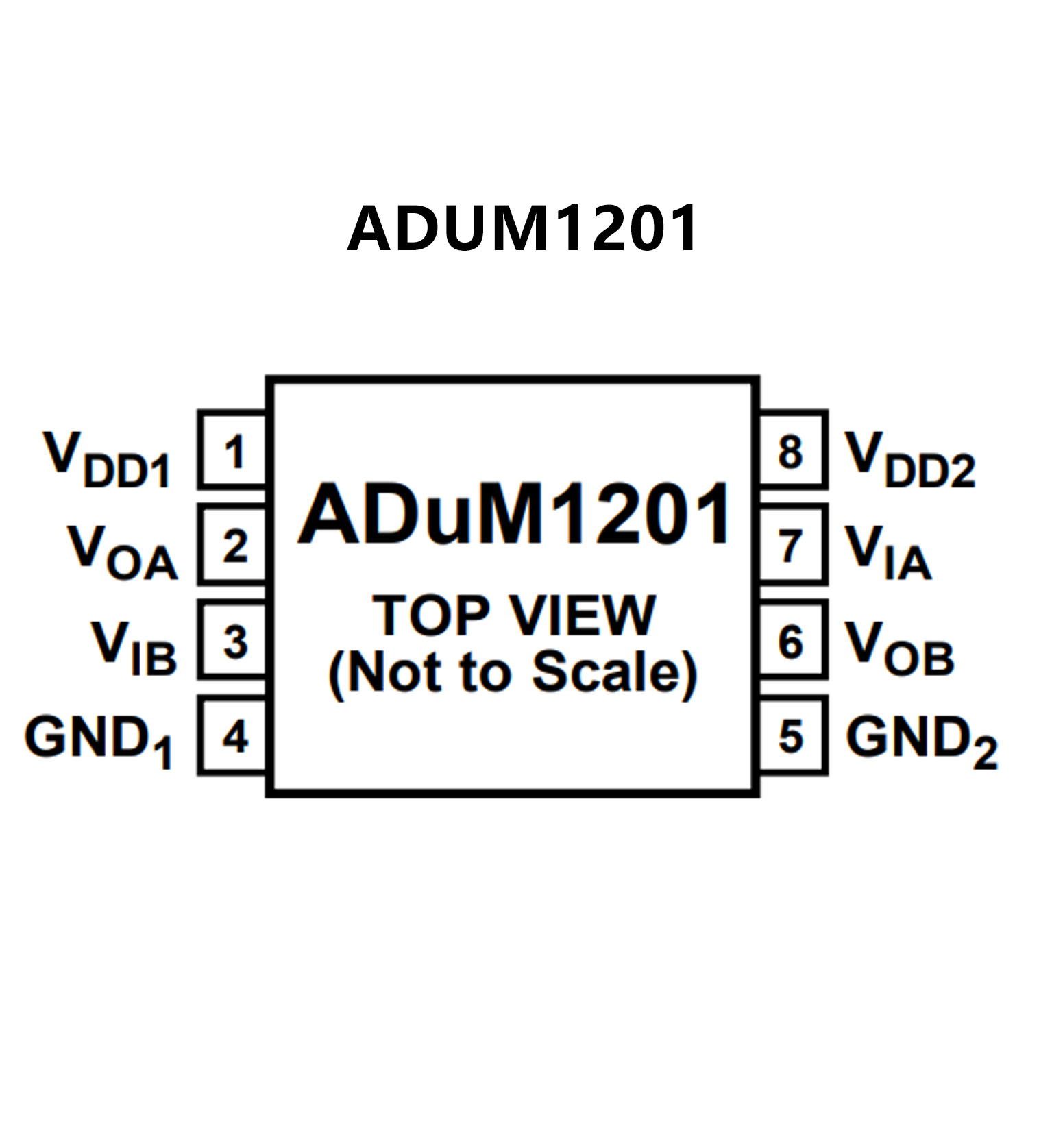

BLD7721.pdf? Narrow body, RoHS-compliant, SOIC 8-lead package
? Low power operation
? 5 V operation
? 1.1 mA per channel maximum at 0 Mbps to 2 Mbps
? 3.7 mA per channel maximum at 10 Mbps
? 8.2 mA per channel maximum at 25 Mbps
? 3 V operation
? 0.8 mA per channel maximum at 0 Mbps to 2 Mbps
? 2.2 mA per channel maximum at 10 Mbps
? 4.8 mA per channel maximum at 25 Mbps
? Bidirectional communication
? 3 V/5 V level translation
? High temperature operation: 125°C
? High data rate: dc to 25 Mbps (NRZ)
? Precise timing characteristics
? 3 ns maximum pulse width distortion
? 3 ns maximum channel-to-channel matching
? High common-mode transient immunity: >25 kV/μs
? Safety and regulatory approvals
? UL recognition
? 2500 V rms for 1 minute per UL 1577
? CSA Component Acceptance Notice 5A
? VDE Certificate of Conformity
? DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
? VIORM = 560 V peak
? Qualified for automotive applications
