EUA2310B.pdf? Wide Supply Voltage: 5.5V to 26V
? Unique Modulation Scheme Reduces EMI Emission
? 15-W/ch into an 8-? Load From a 16-V Supply
? 10-W/ch into an 8-? Load From a 13-V Supply
? 30W into a 4-? Mono Load From a 16-V Supply
? 87% Efficient Class-D Operation Eliminates
Need for Heat Sinks
? Four Selectable, Gain Settings
? Differential Inputs
? Speaker Protection Circuitry
? Auto Gain Control and Power Clamp
? Thermal and Short-Circuit Protection

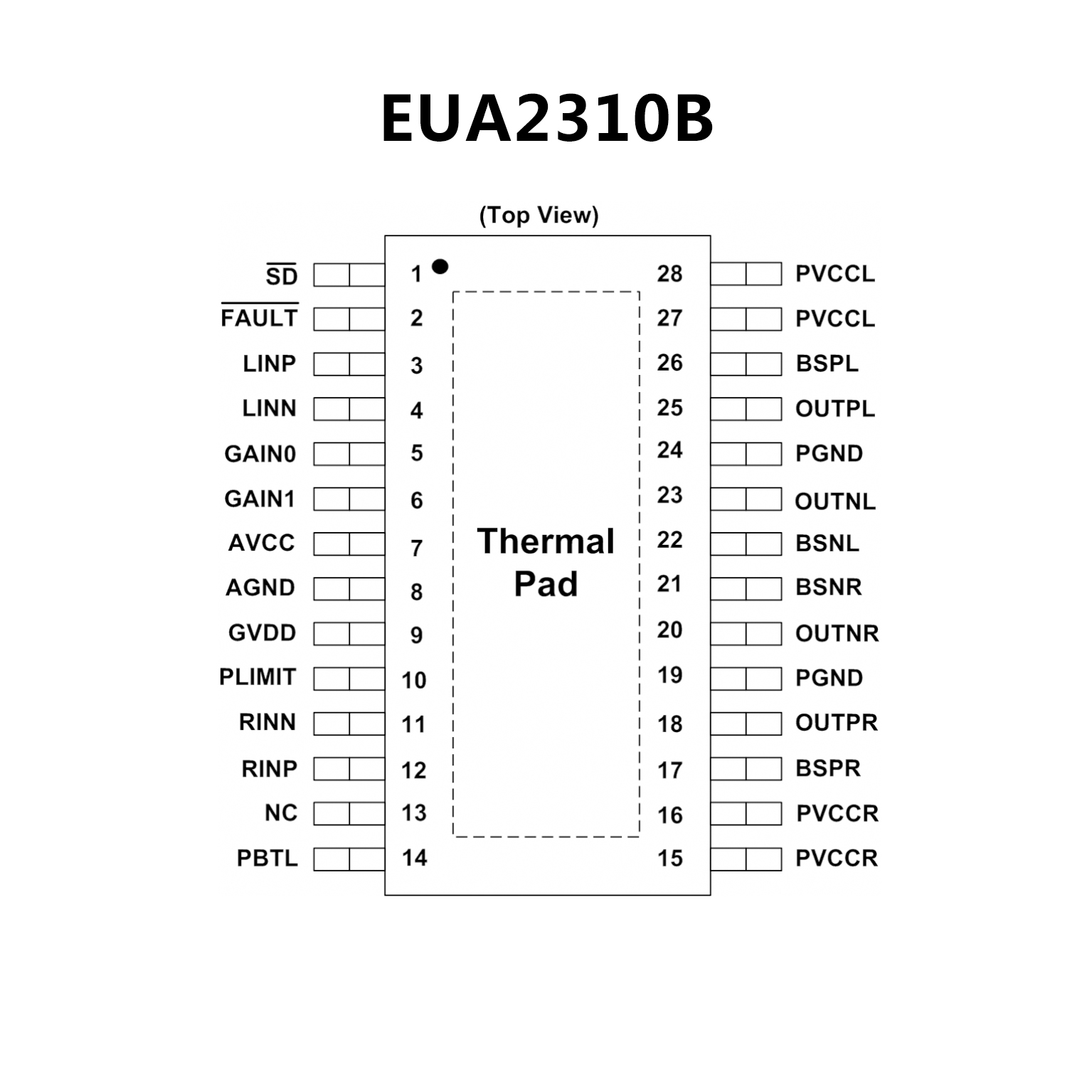

? 28-pin TSSOP Package with Thermal Pad
? RoHS compliant and 100% lead(Pb)-free
Halogen-Free
? 15-W/ch into an 8-? Loads at 10% THD+N From
a 16-V Supply
? 10-W/ch into 8-? Loads at 10% THD+N From a
13-V Supply
? 30-W into a 4-? Mono Load at 10% THD+N From
a 16-V Supply
? 90% Efficient Class-D Operation Eliminates Need
for Heat Sinks
? Wide Supply Voltage Range Allows Operation
From 8 V to 26 V
? Filter-Free Operation
? SpeakerGuardTM Speaker Protection Includes
Adjustable Power Limiter Plus DC Protection
? Flow Through Pin Out Facilitates Easy Board
Layout
? Robust Pin-to-Pin Short Circuit Protection and
Thermal Protection With Auto Recovery Option
? Excellent THD+N / Pop-Free Performance
? Four Selectable, Fixed Gain Settings
? Differential Inputs
