EUA2380.pdf? Wide Supply Voltage: 4.5V to 14.5V
? Enhanced Modulation Scheme Reduces EMI
Emission
? 10-W/ch into an 6-? Load From a 12-V Supply
? 10-W/ch into an 8-? Load From a 13-V Supply
? Differential Inputs or Single-Ended input
? Speaker Protection Circuitry
? 26-dB Fixed Gain
? Power Limit Function
? Thermal and Short-Circuit Protection

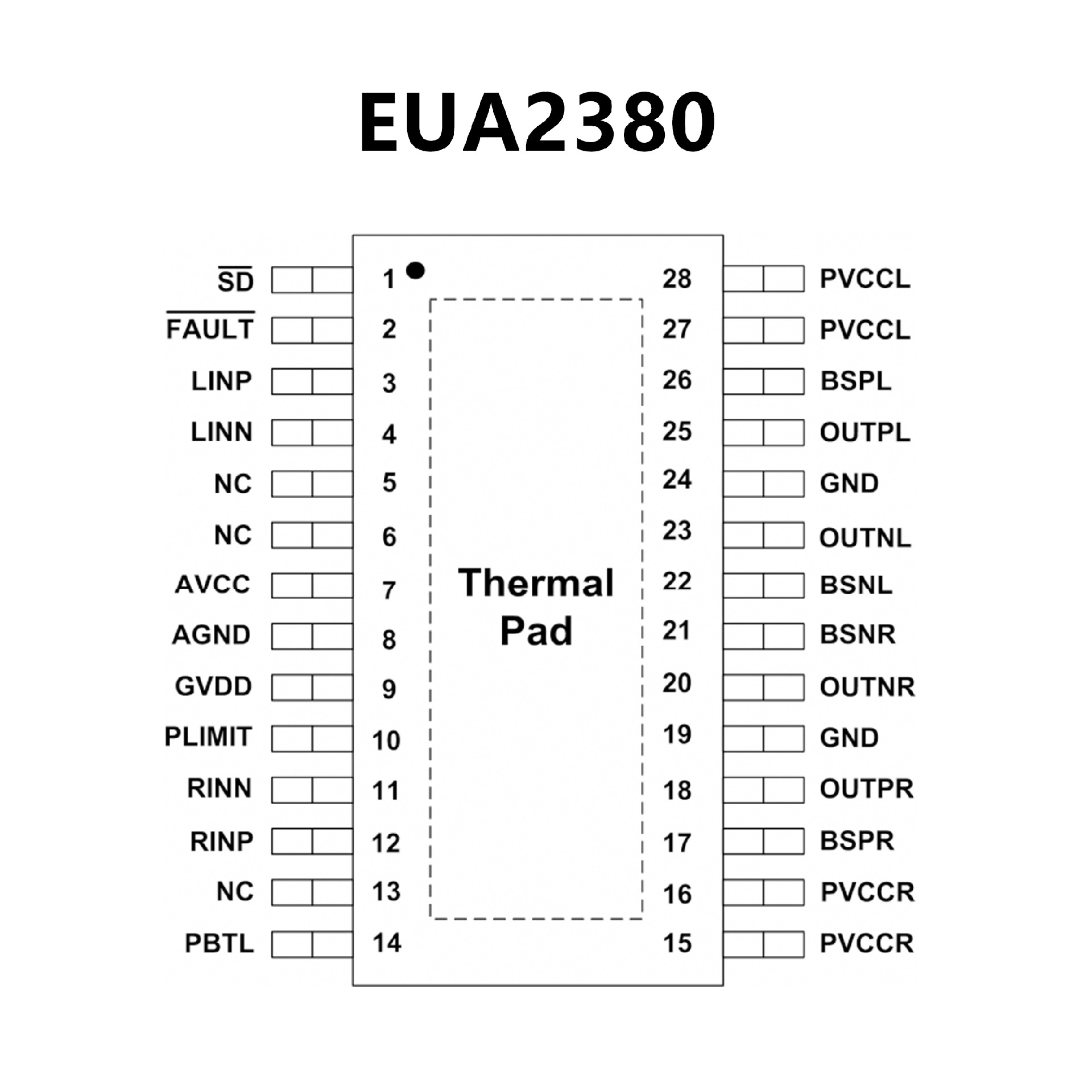

? 28-pin TSSOP Package with Thermal Pad
? RoHS compliant and 100% lead(Pb)-free
Halogen-Free
1? 2 × 10 W/ch into 6-Ω loads at 10% THD+N from a
12-V supply
? 2 × 10 W/ch into 8-Ω loads at 10% THD+N from a
13-V supply
? Up to 90% Efficient class-D operation (8 Ω)
eliminates need for heat sinks
? <0.05% THD+N at 1 W/4 Ω/1 kHz
? Wide supply voltage range allows operation from

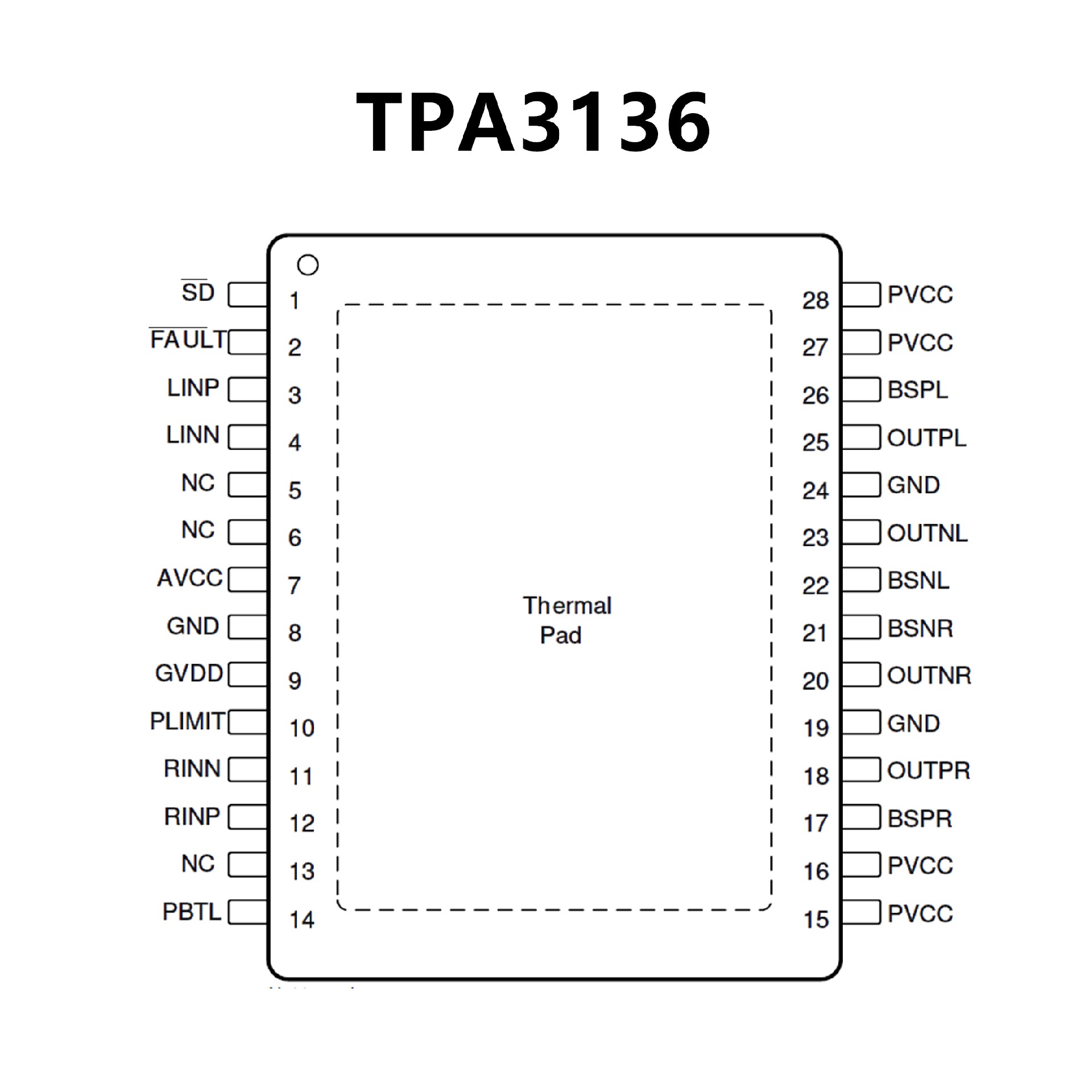

4.5 V (8 V for TPA3136AD2) to 14.4 V
? Inductor-free operation
? Enhanced EMI performance with spread spectrum
? SpeakerGuard? speaker protection includes
power limiter and DC protection
? Robust pin-to-pin, pin-to-ground, and pin-to-power
short circuit protection and thermal protection
? 26-dB Fixed gain
? Single-ended or differential analog inputs
? Click and pop free startup
