2-Vrms Cap-Less Line Driver with Adjustable Gain,EUA6332 Replace AD22653.
EUA6332.pdf優(yōu)勢替代
FEATURES
? Operation Voltage: 3.0V to 3.6V
? Cap-less Output
- Eliminates Output Capacitors
- Improves Low Frequency Response
- Reduces POP/Clicks
- Reduce Board Area and Component Cost
? Low Noise and THD
- SNR > 90dB
- Typical Vn < 15uVrms
- THD+N < 0.02%
? Maximum Output Voltage Swing into 10kΩ Load
- 2Vrms at 3.3V Supply Voltage
? 600Ω Output Load Compliant
? Differential Input, single-Ended Output
? External Gain Setting from 1V/V to 10V/V
? Fast Start-up Time : 0.5ms
? Integrated De-Pop Control
? External Under Voltage Protection
? Thermal Protection
?Active Mute Control for Pop-less Audio
ON/OFF Control
? +/-8kV IEC ESD Protection at line outputs

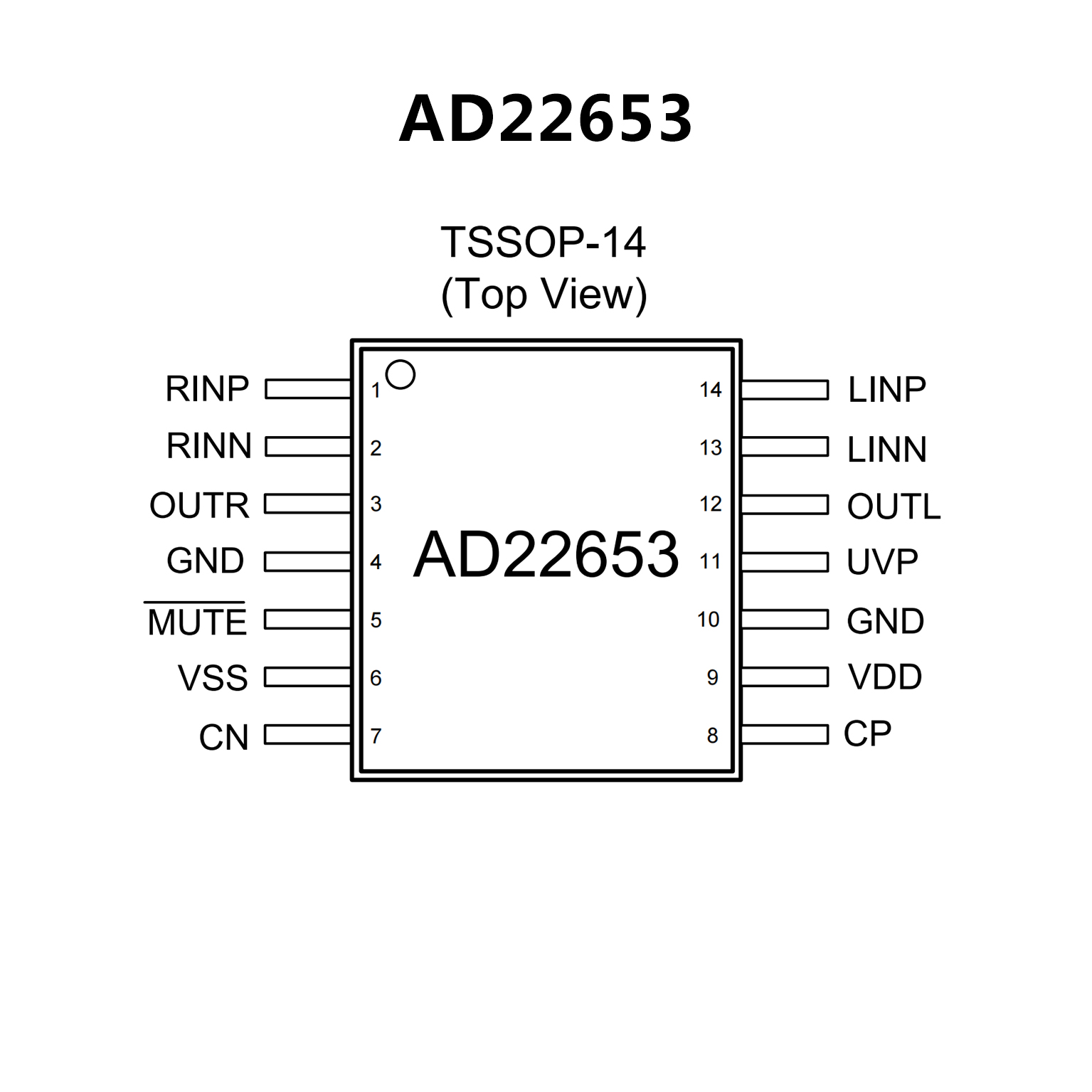

PIN CONFIGUTION
