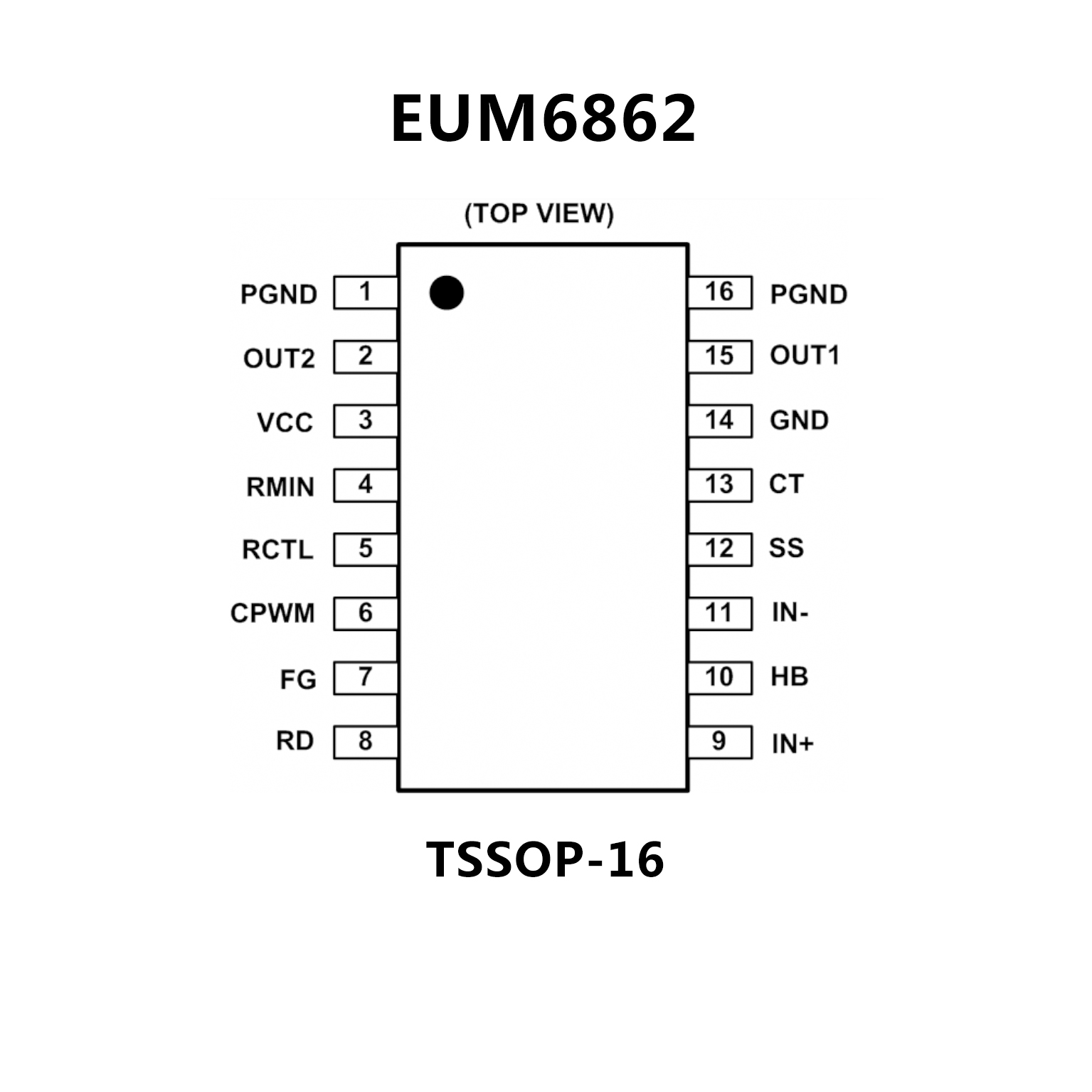

EUM6862.pdf? Built in 24V Full-wave Motor Driver for Fan Motor
? Built in Kickback Voltage Protection, No Zener
Diode Need
? External Programmable Soft Start and Soft
Restart Function
? Wide Input Range 3V~28V
? PWM Fan Speed Control
? Programmable Minimum Fan Speed
? Built in Soft Switching Function
? Built in Hall Bias
? Lock Protection and Auto Restart
? Fan Rotation Speed Feedback FG Output
(EUM6862/B)
? Fan Rotation Detection RD Output
(EUM6862/A)
? Thermal Shutdown Protection
? Available in TSSOP-16 and TDFN-14 Packages
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

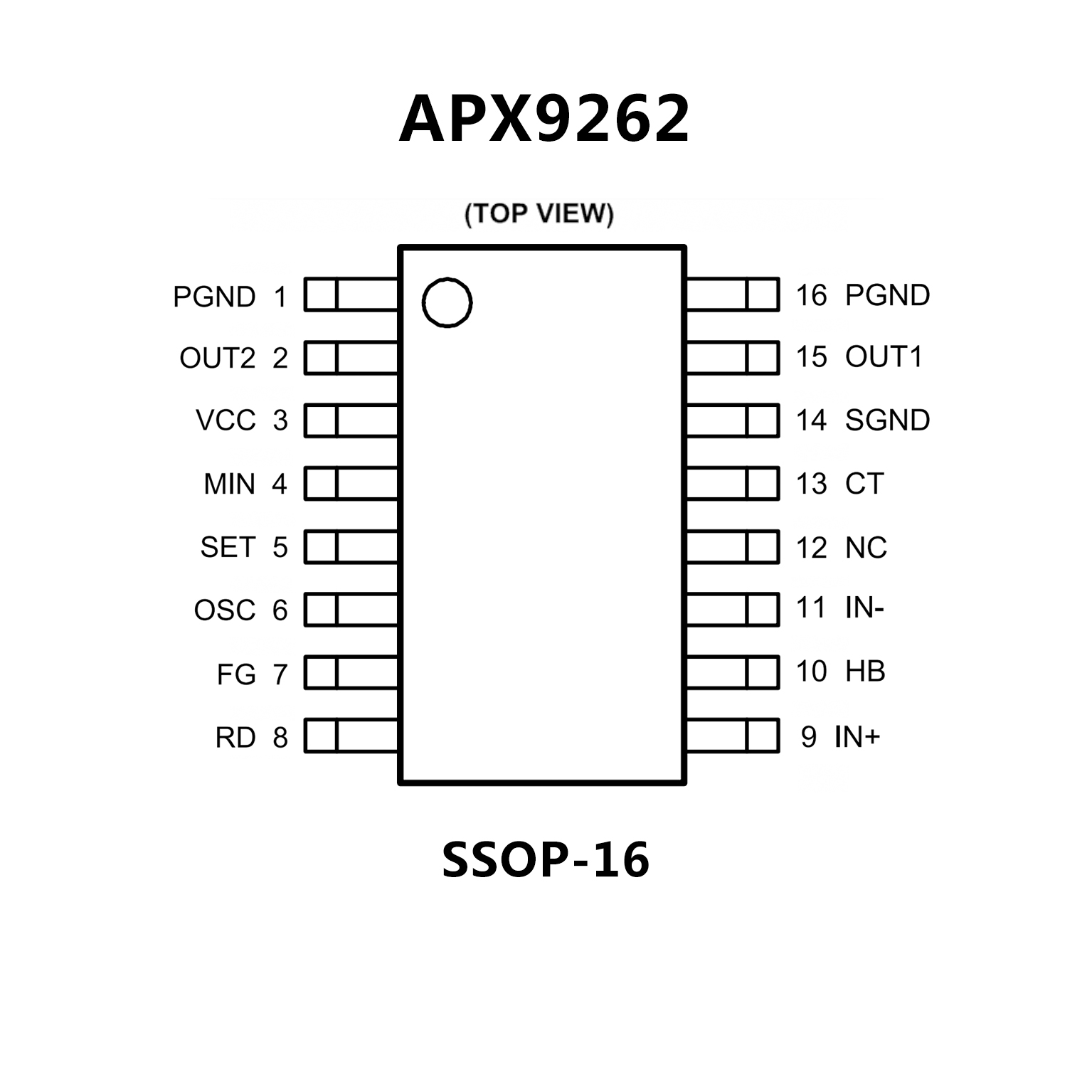

? Single Phase Full Wave Fan Driver
? Low Supply Current
? Built-In Variable Speed Function
? Include Hall Bias Circuit
? Built-In Lock Protection and Auto Restart Func-tion
? FG Output and RD Output Signal available
? Built-In Current Limit Circuit
? Built-In Thermal Protection Circuit
? SSOP-16 Package
? Lead Free and Green Devices Available
(RoHS Compliant)
