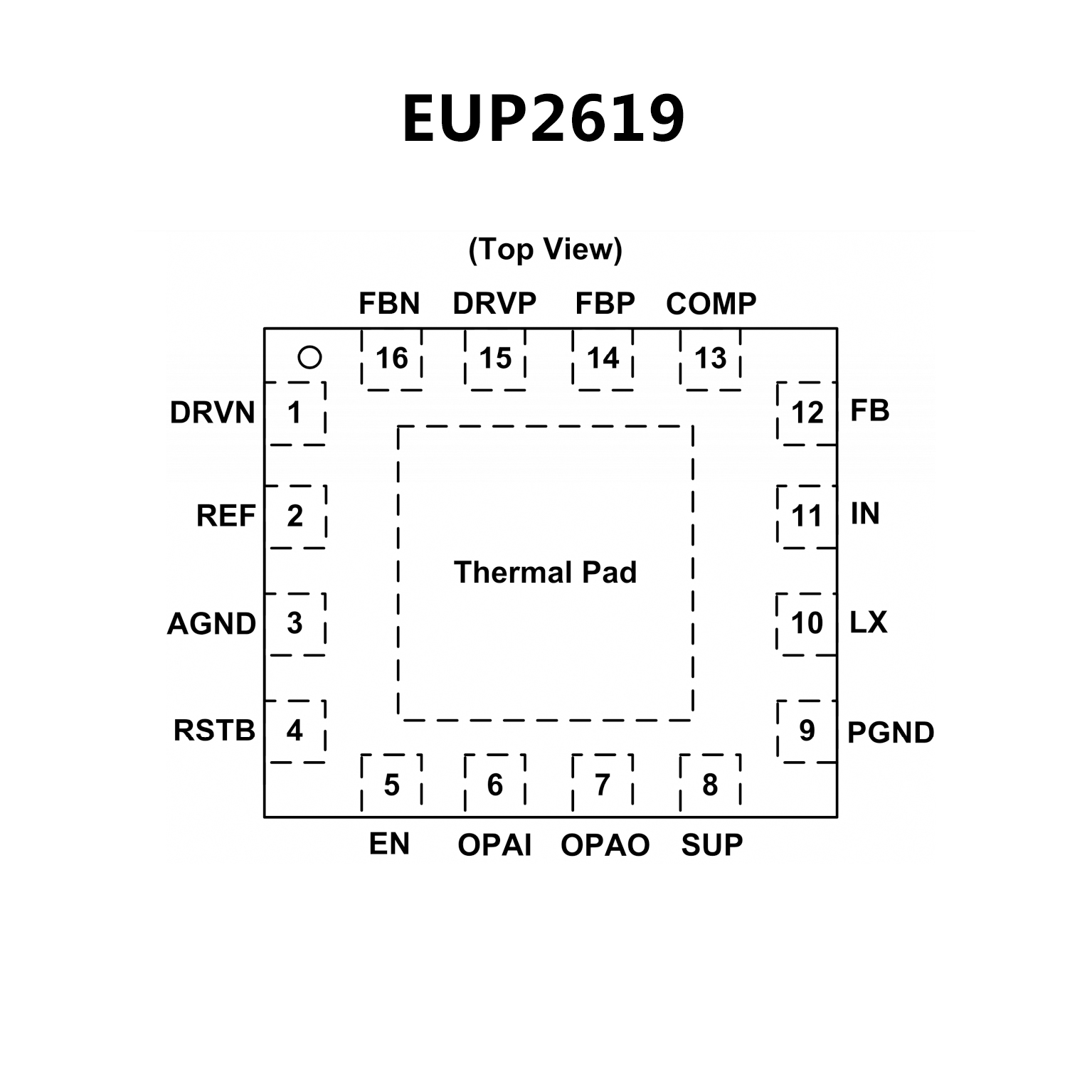

EUP2619.pdf? 2.5V to 5.5V Input Supply Range
? 1.2MHz Current-Mode Step-Up Converter
- Built-In 20V/2.8A, 0.16? N-Channel MOSFET
- High Efficiency Up to 90%
- ±1% Accurate Output Voltage
- Fast Transient Response to Pulse Load
- Over-Current Protection
- Output Under-Voltage Protection
? 600kHz Negative Charge Pump Driver for VGL
? 600kHz Positive Charge Pump Driver for VGH
? High Speed High Current 18V VCOM Buffer
- ±500mA Output Short-Circuit Current
- 45V/μs Slew Rate
- 20MHz, -3dB Bandwidth
- Rail-to-Rail Input and Output
? Power-On Sequence Control
? Thermal-Overload Protection
? 3mm×3mm TQFN-16 Package
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

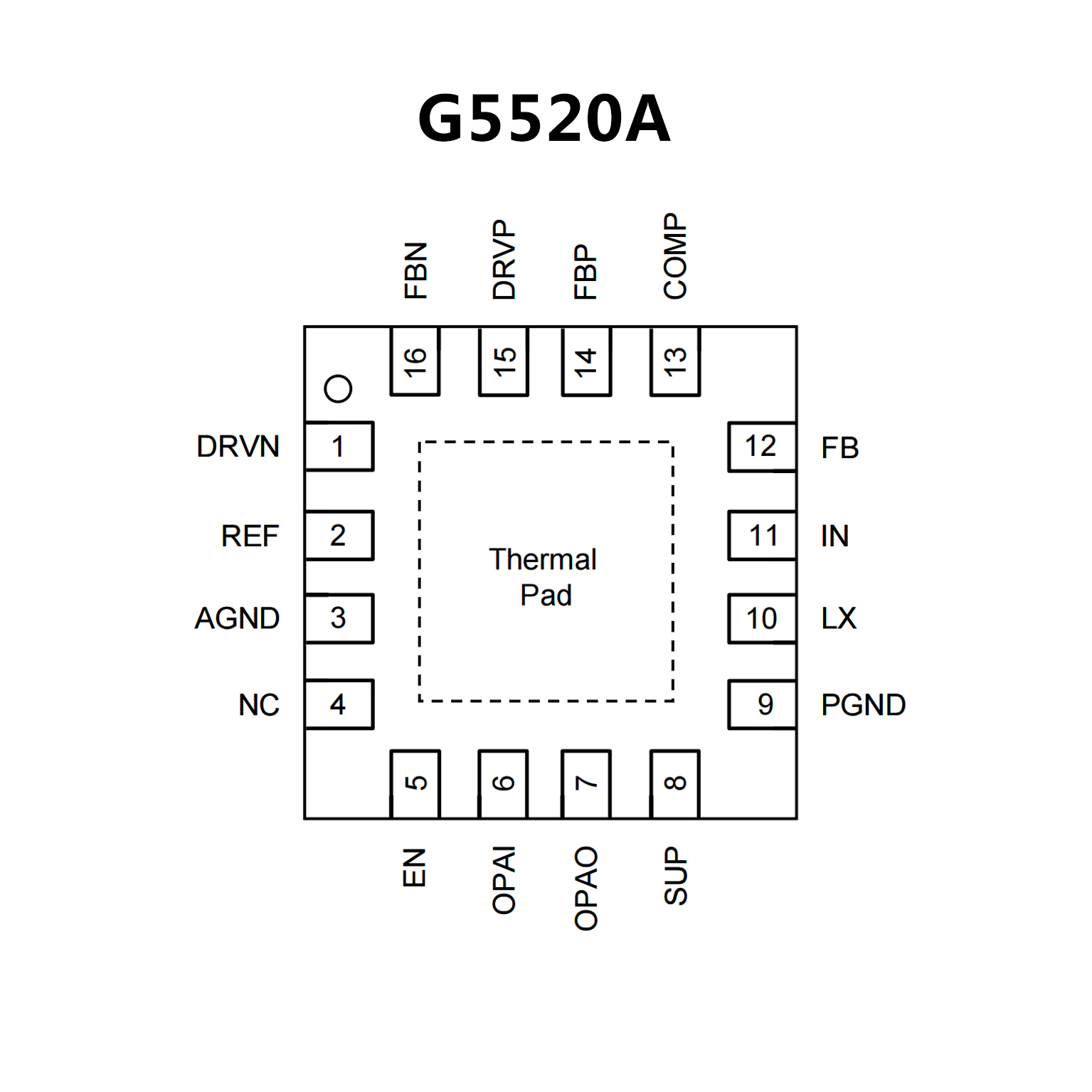

? 2.5V to 5.5V Input Supply Range
? Active-High Enable Control
? 1.2MHz Current-Mode Boost Regulator
- Fast Transient Response to Pulse Load
- ±1% Accurate Output Voltage
- Built-In 20V/1.8A, 0.7Ω N-Channel MOSFET
- High Efficiency up to 90%
- Over-Current Protection
- Output Under-Voltage Protection
? High-Performance Operational Amplifier
- ±150mA Output Short-Circuit Current
- 12V/μs Slew Rate
- 12MHz, -3dB Bandwidth
- Rail-to-Rail Input and Output
? 600kHz Negative Charge Pump Driver for VGL
? 600kHz Positive Charge Pump Driver for VGH
? Power-On Sequence Control
? Thermal-Overload Protection
? TQFN3X3-16 Package
