LED Backlight Controller with PWM to Analog Dimming Mode,EUP2950B Replace OB3353A.
EUP2950B
EUP2950B.pdf
EUP2950B.pdfFEATURES
? 9V to 30V Input Voltage Range
? Current Mode PWM controller with Good Dynamic
? Internal Soft-Start
? PWM to Analog Dimming Mode
? Over Voltage Protection
? Over Current Protection
? Under Voltage Lockout
? Thermal Shutdown Protection
? LED cathode short to GND Protection
? LED Open Protection
? SOP-8 Package
? RoHS Compliant and 100% Lead (Pb)-Free

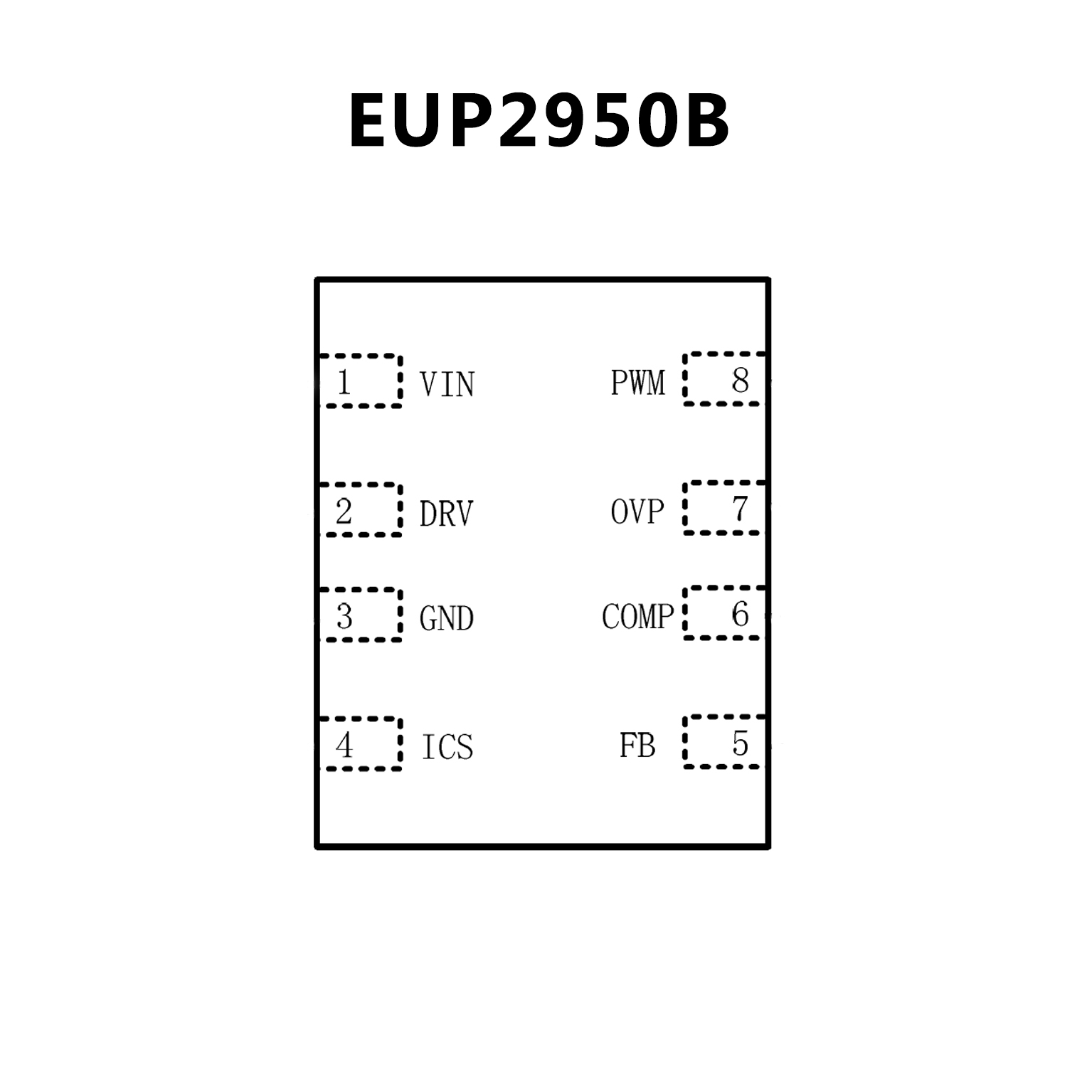

PIN CONFIGUTION
優勢替代
FEATURES
? Current Mode PWM Controller With Good
Dynamic Response
? 9V to 30V Input Voltage Range
? PWM to analog Dimming Mode
? Over Voltage Protection
? Over Current Protection
? Under Voltage Lockout (UVLO)
? Thermal Shutdown
? Diode & Inductor Short Protection
? LED cathode short to GND Protection

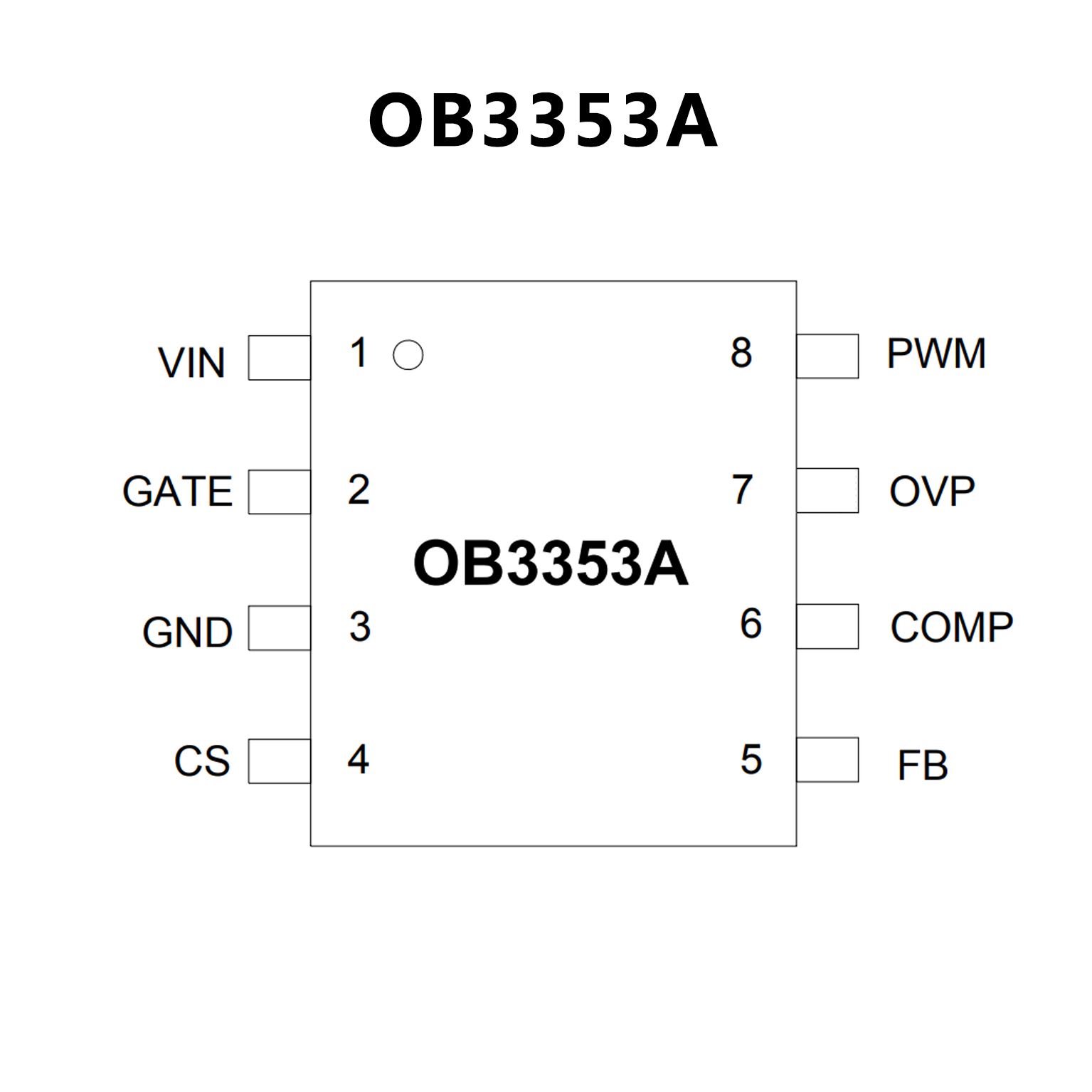

PIN CONFIGUTION
