EUP3453.pdf? 4.75V to 40V Wide Input Operating Range
? Output Adjustable from 0.92V to 15V
? Up to 3A Output Current
? Programmable Output Current Threshold
? Programmable Output Over Voltage Threshold
? 3μA Low Shutdown Current
? 0.1? Internal DMOS Output Switch
? Up to 95% Efficiency
? Fixed 200kHz Switching Frequency
? Internal Soft Start
? Secondary Cycle-by-Cycle Current Limit
? Thermal Shutdown
? Input Supply Undervoltage Lockout

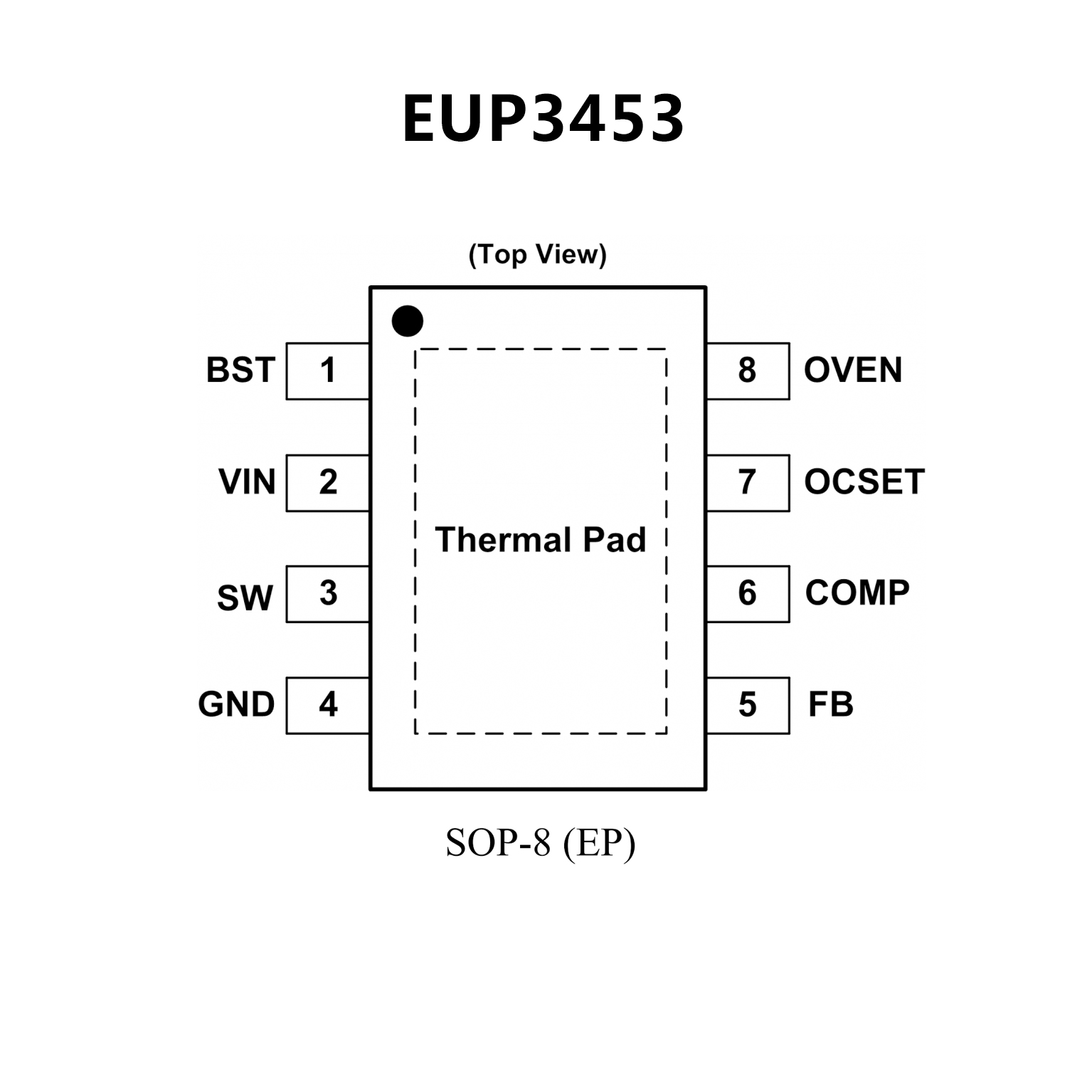

? Available SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free
? Up to 40V Input Voltage
? Up to 2A output current
? Output Voltage up to 12V
? Patent Pending Active CC Sensorless Constant
Current Control
? Integrated Current Control Improves
Efficiency, Lowers Cost, and Reduces
Component Count ? Resistor Programmable
? Current Limit from 750mA to 2A
? Patented Cable Compensation from 0? to
0.5? ? ±7.5% CC Accuracy
? Compensation of Input /Output Voltage Change
? Temperature Compensation
? Independent of inductance and Inductor DCR
? 2% Feedback Voltage Accuracy
? Up to 93% Efficiency
? 210kHz Switching Frequency Eases EMI Design
? Advanced Feature Set
? Integrated Soft Start
? Thermal Shutdown
? Secondary Cycle-by-Cycle Current Limit
? Protection Against Shorted ISET Pin

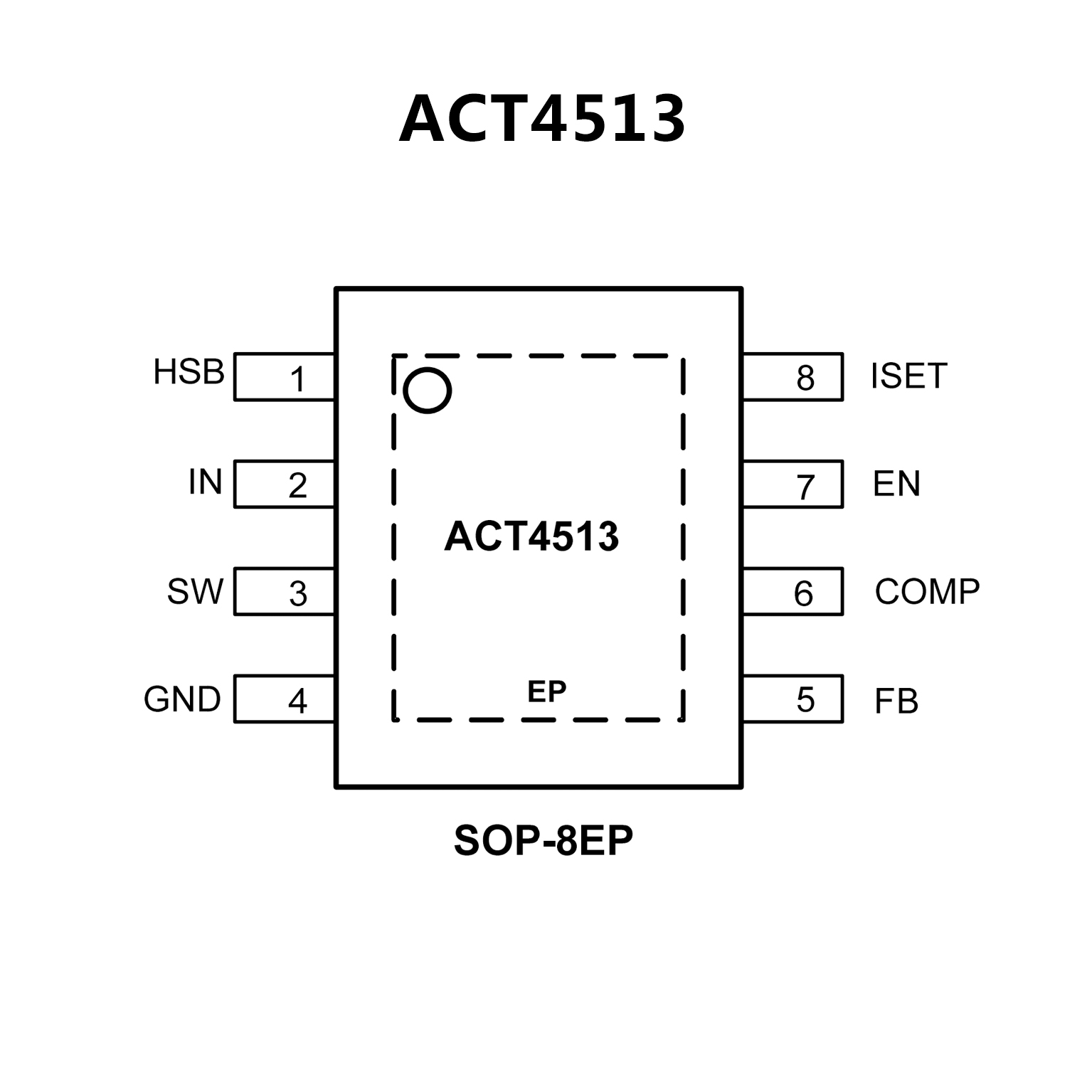

? SOP-8EP Package
