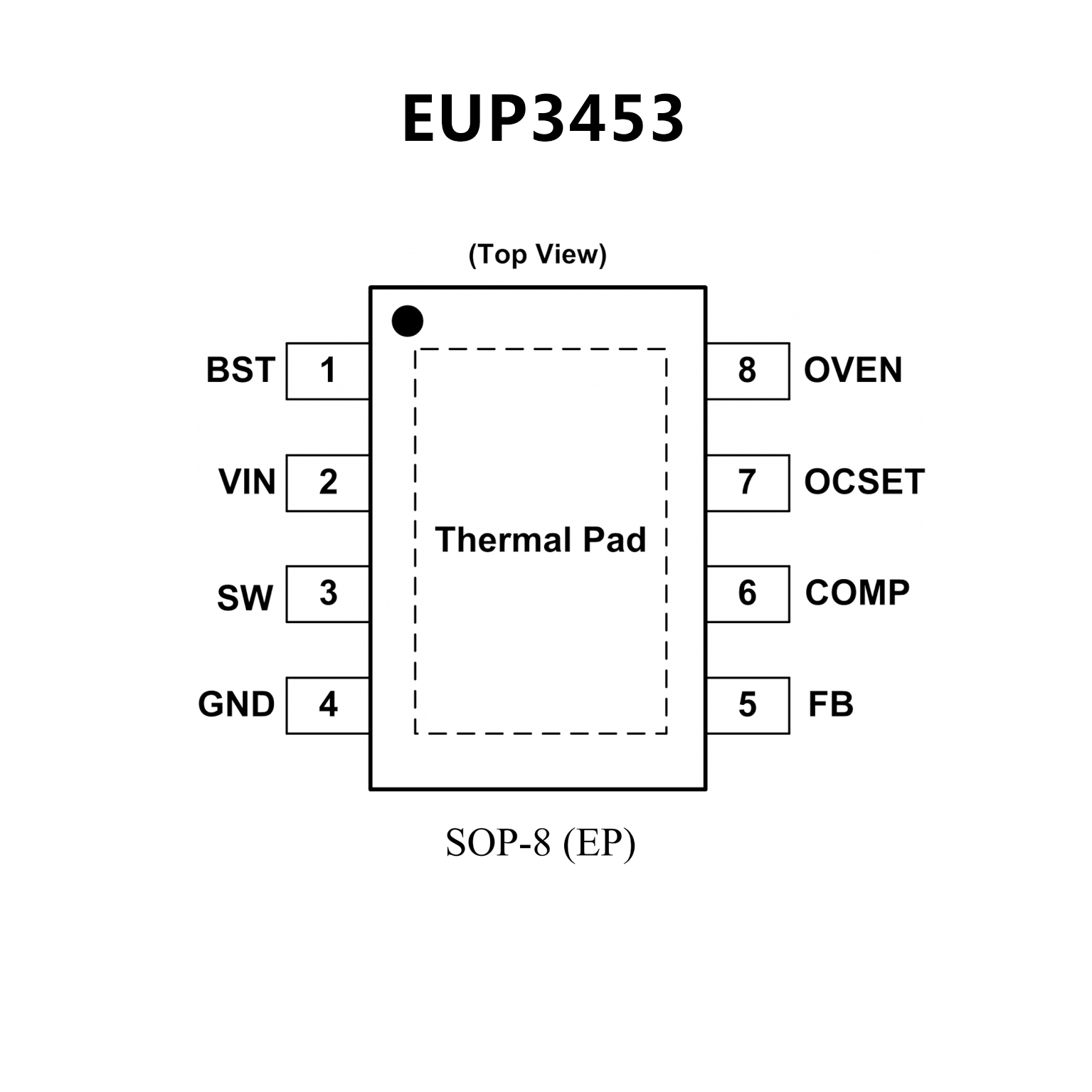

EUP3453.pdf? 4.75V to 40V Wide Input Operating Range
? Output Adjustable from 0.92V to 15V
? Up to 3A Output Current
? Programmable Output Current Threshold
? Programmable Output Over Voltage Threshold
? 3μA Low Shutdown Current
? 0.1? Internal DMOS Output Switch
? Up to 95% Efficiency
? Fixed 200kHz Switching Frequency
? Internal Soft Start
? Secondary Cycle-by-Cycle Current Limit
? Thermal Shutdown
? Input Supply Undervoltage Lockout
? Available SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

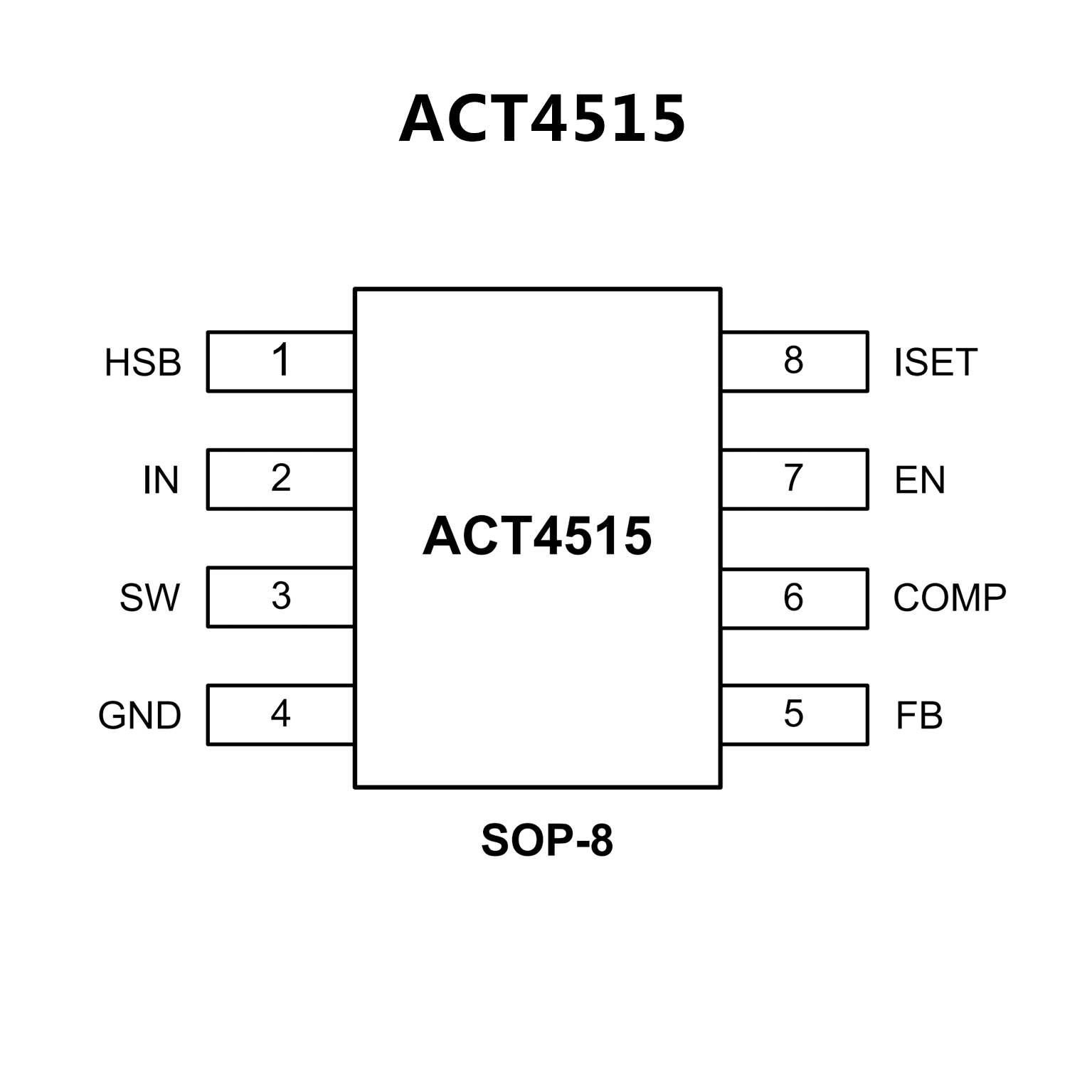

? Up to 40V Input Voltage
? Up to 1.5A Constant Output Current
? Output Voltage up to 12V
? Patent Pending Active CC Constant Current
Control
? Integrated Current Control Improves
Efficiency, Lowers Cost, and Reduces
Component Count
? Resistor Programmable Outputs
? Current Limit from 400mA to 1500mA
? Patented cable compensation from 0? to 0.5?
? ±7.5% CC Accuracy
? Compensation of Input/ Output Voltage Change
? Temperature Compensation
? Independent of Inductance and Inductor DCR
? 2% Feedback Voltage Accuracy
? Up to 93% Efficiency
? 210kHz Switching Frequency Eases EMI Design
? Advanced Feature Set
? Integrated Soft Start
? Thermal Shutdown
? Secondary Cycle-by-Cycle Current Limit
? Protection Against Shorted ISET Pin
? SOP-8 Package
