EUP8207.pdf? Wide Input Supply Voltage Range:
4.8V to 20V – 4.2 Version
8.9V to 20V – 8.4 Version
8.9V to 20V – 8.4A Version
? 500kHz Switching Frequency
? End-of-Charge Current Detection Output
? 7 Hour Charge Termination Timer
? ±1% Charge Voltage Accuracy
? ±10% Charge Current Accuracy
? Low 10μA Reverse Battery Drain Current
? Automatic Battery Recharge
? Automatic Trickle Charging of Low Voltage
Batteries
? Automatic Sleep Mode for Low Power
Consumption
? Battery Temperature Sensing
? Stable with Ceramic Output Capacitor
? Support up to 3A Charge Current

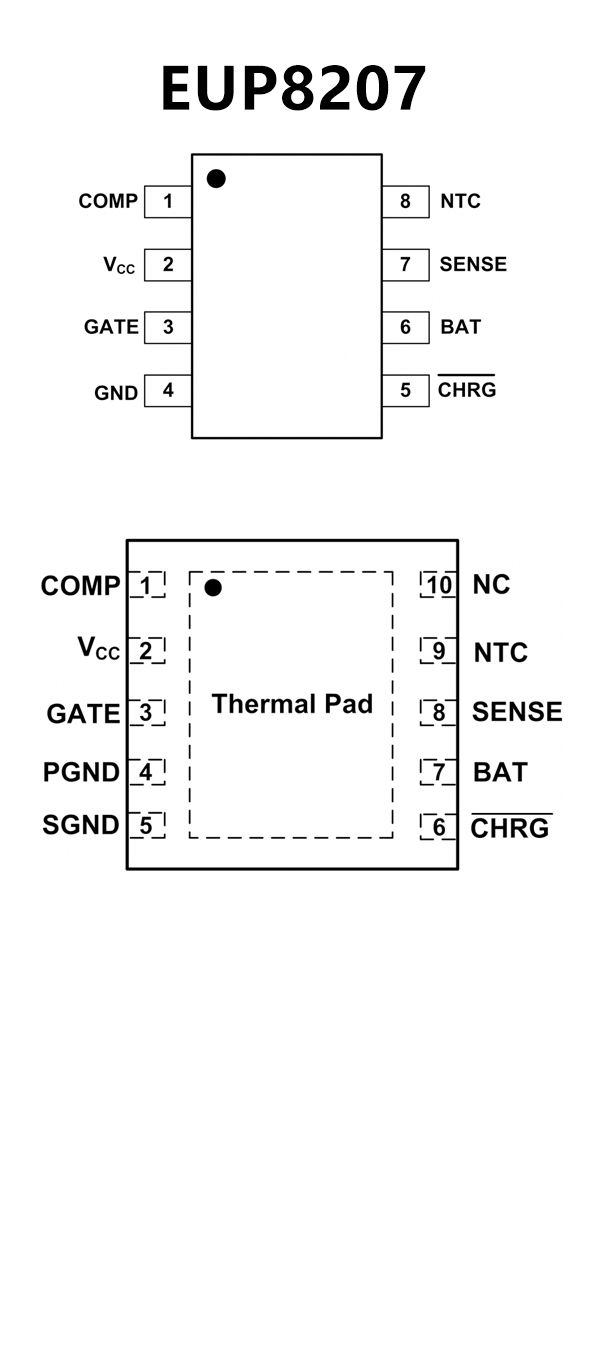

? 8-Lead SOP and 10-Lead TDFN Packages
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free
? Wide Input Supply Range:
4.7V to 22V – 4.2 Version
8.9V to 22V – 8.4 Version
? High Efficiency Current Mode PWM Controller with
500kHz Switching Frequency
? ±1% Charge Voltage Accuracy
? End-of-Charge Current Detection Output
? 3 Hour Charge Termination Timer
? Constant Switching Frequency for Minimum Noise
? ±5% Charge Current Accuracy
? Low 10μA Reverse Battery Drain Current
? Automatic Battery Recharge
? Automatic Shutdown When Input Supply is Removed
? Automatic Trickle Charging of Low Voltage Batteries
? Battery Temperature Sensing and Charge Qualification
? Stable with Ceramic Output Capacitor

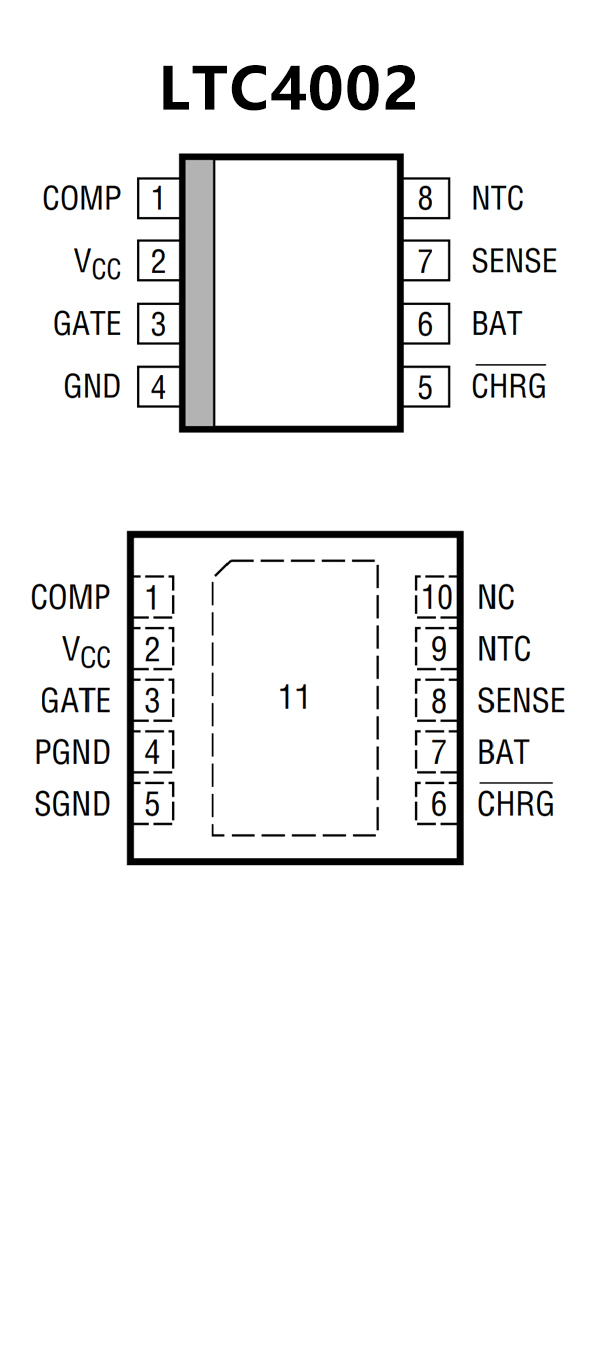

? 8-Lead SO and 10-Lead DFN Packages
