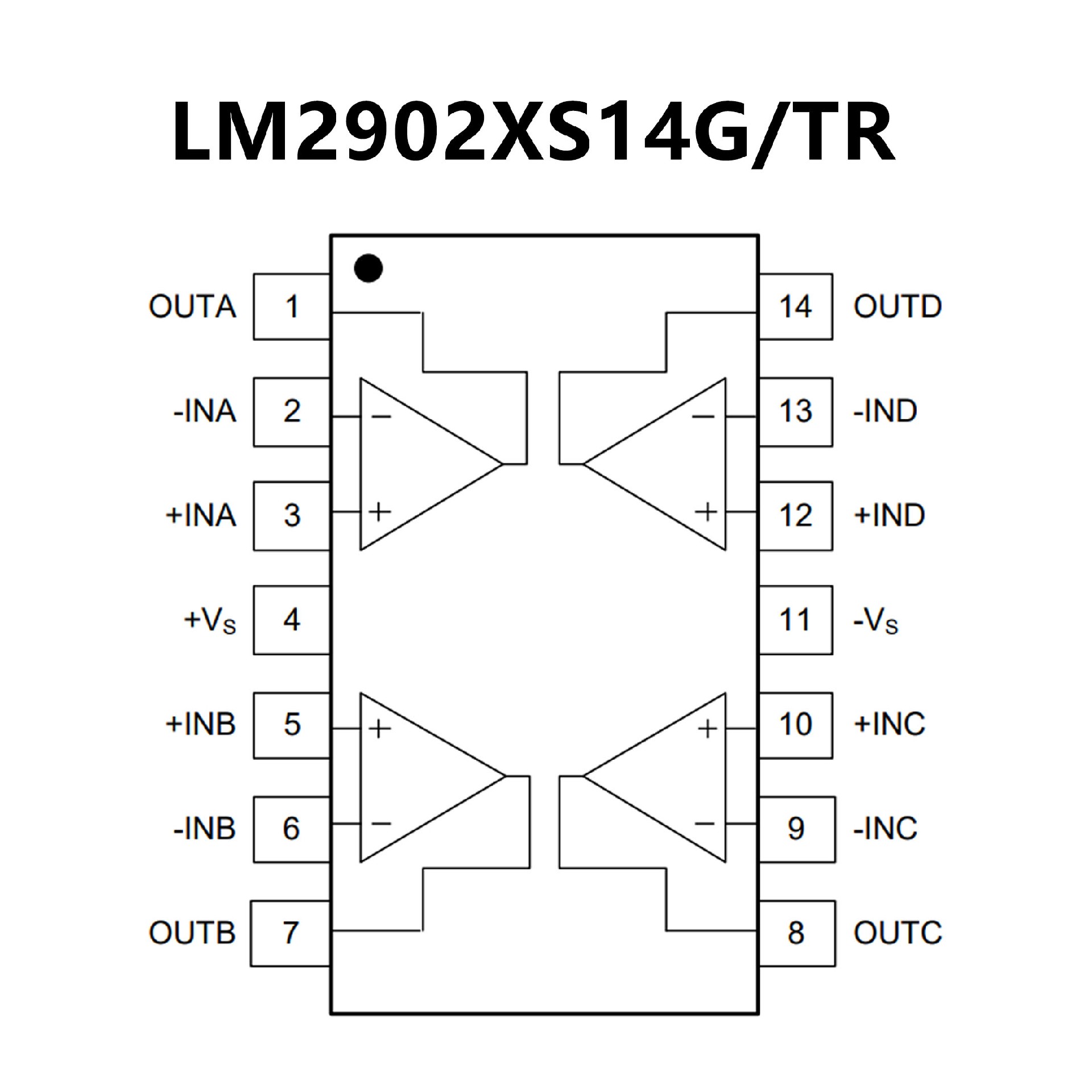

LM2902.pdf? Wide Supply Ranges Single Supply:
3V to 32V Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 860μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range
Includes Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 20pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal
to MaximumRated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

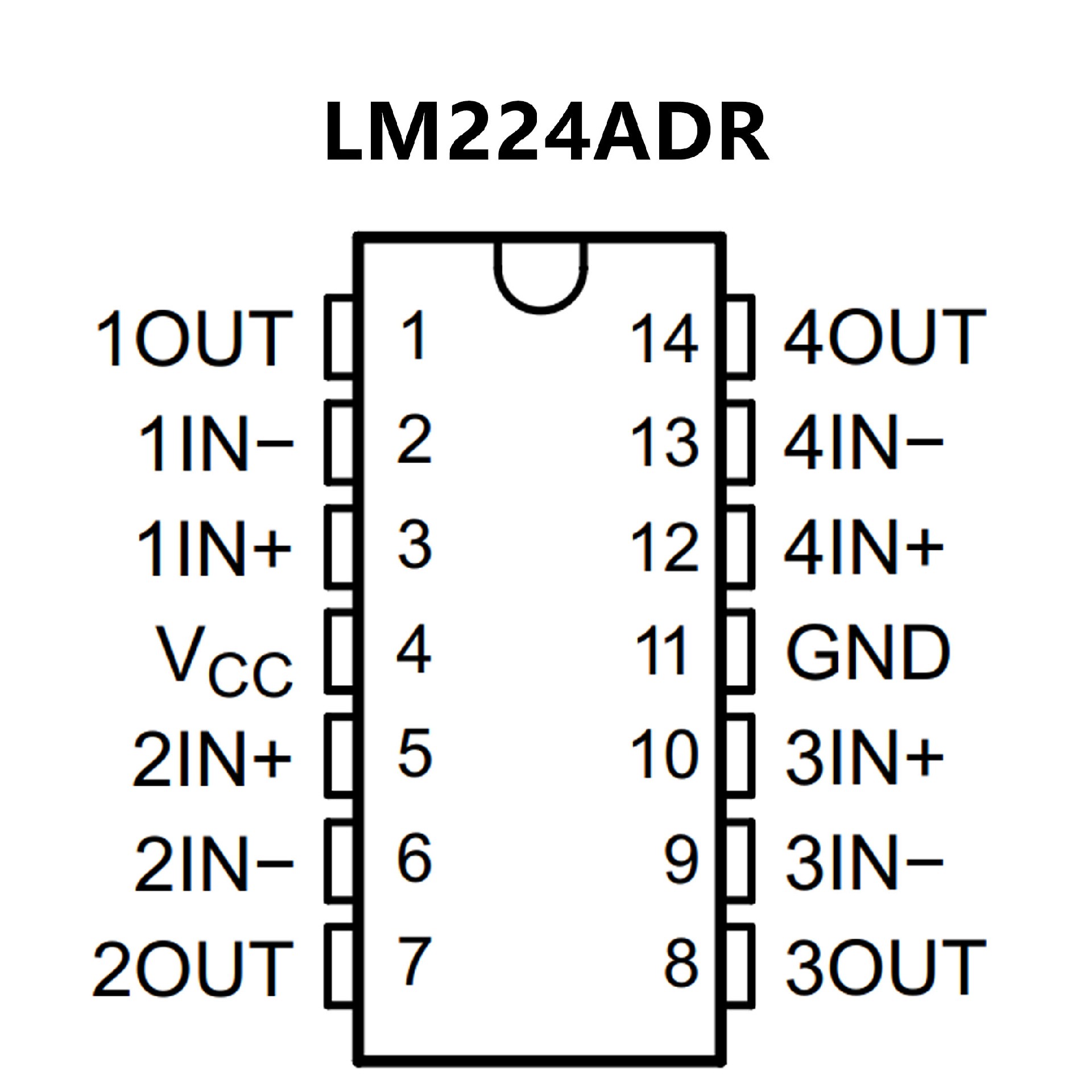

? 2-kV ESD Protection for:
LM224K, LM224KA
LM324K, LM324KA
LM2902K, LM2902KV, LM2902KAV
Single Supply: 3 V to 32 V
(26 V for LM2902)
Dual Supplies: ±1.5 V to ±16 V
(±13 V for LM2902)
? Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA Typical
? Common-Mode Input Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground
? Low Input Bias and Offset Parameters
Input Offset Voltage: 3 mV Typical
MM A Versions: 2 mV Typical
Input Offset Current: 2 nA Typical
Input Bias Current: 20 nA Typical
MMA Versions: 15 nA Typical
? Differential Input Voltage Range Equal
to Maximum-Rated Supply Voltage:
32 V (26 V for LM2902)
? Open-Loop Differential Voltage
Amplification:100 V/mV Typical
Internal Frequency Compensation
On Products Compliant to MIL-PRF-38535,
All Parameters are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include
Testing of All Parameters.
