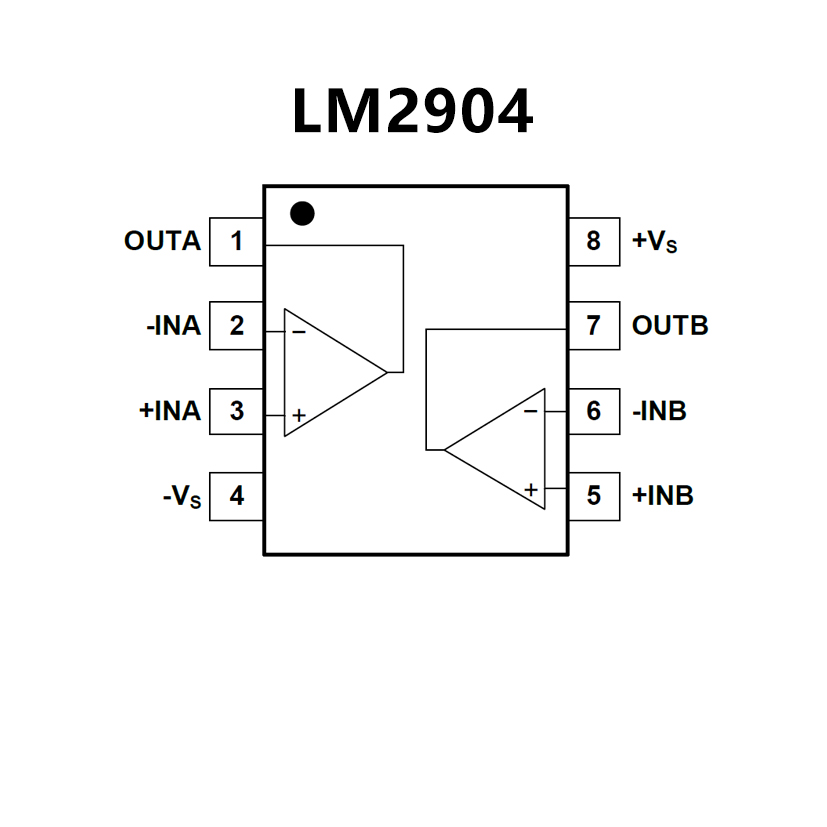

LM2904.pdf? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 and TSSOP-8
Packages

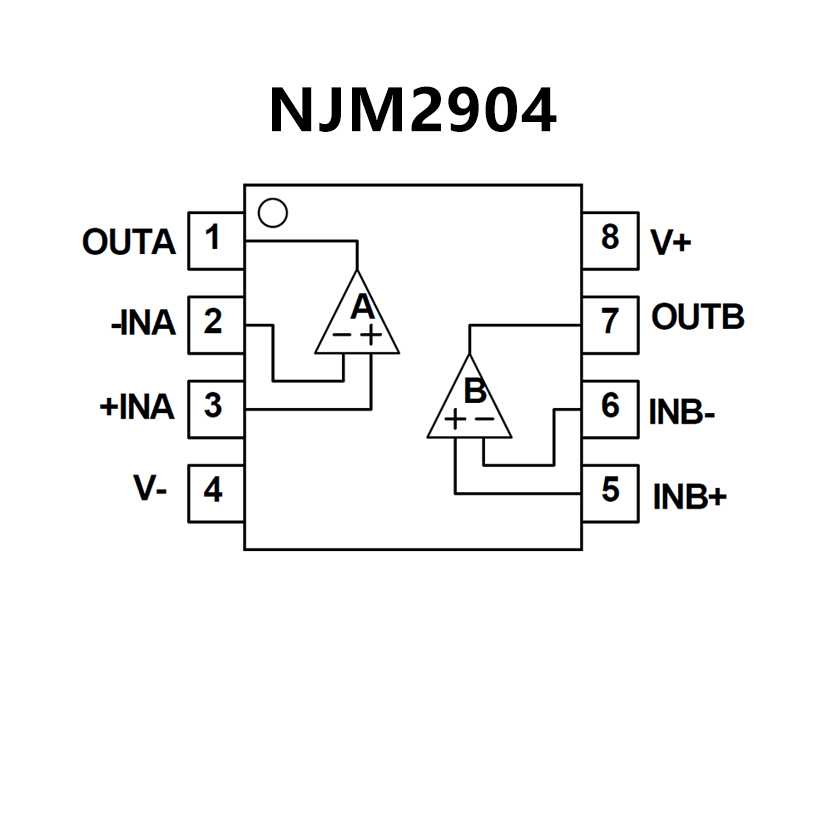

? Single Supply
? Operating Voltage +3V~+32V
? Low Operating Current 0.7mA typ.
? Slew Rate 0.5V/μs typ.
? Bipolar Technology
? Package Outline DIP8, DMP8, SSOP8,
SIP8, SOP8 JEDEC 150mil
MSOP8 (VSP8) MEET JEDEC MO-187-DA
MSOP8 (TVSP8) MEET JEDEC MO-187-DA / THIN TYPE
