SP6T Switch with MIPI for LTE Diversity,MXD8666 Replace SGM72106.
SGM72106
SGM72106.pdf
SGM72106.pdfFEATURES
? Supply Voltage Range: 2.4V to 4.8V
? Advanced Silicon-On-Insulator (SOI) Process
? Frequency Range: 0.1GHz to 3.0GHz
? Low Insertion Loss: 0.65dB (TYP) at 2.7GHz
? MIPI RFFE Interface Compatible
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2×2-14AL Package

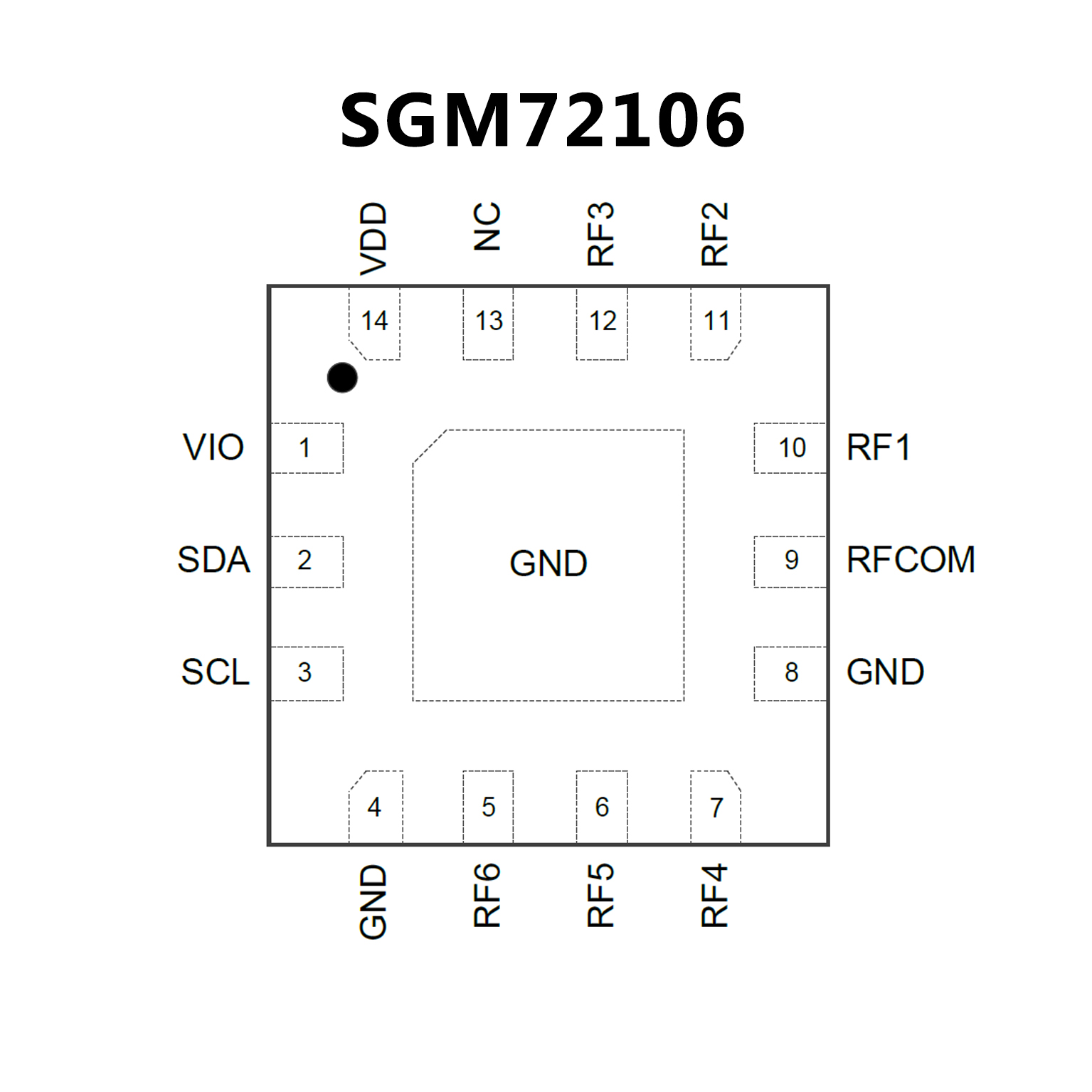

PIN CONFIGUTION
優勢替代
FEATURES
? Excellent insertion loss
-0.50 dB Insertion Loss at 2.7GHz
? P0.1dB @ 27dBm
? Multi-Band operation 700MHz to 3000MHz
? RFFE serial control interface
? Compact 2mm x 2mm in QFN-14 package
? No DC blocking capacitors required (unless
external DC is applied to the RF ports)

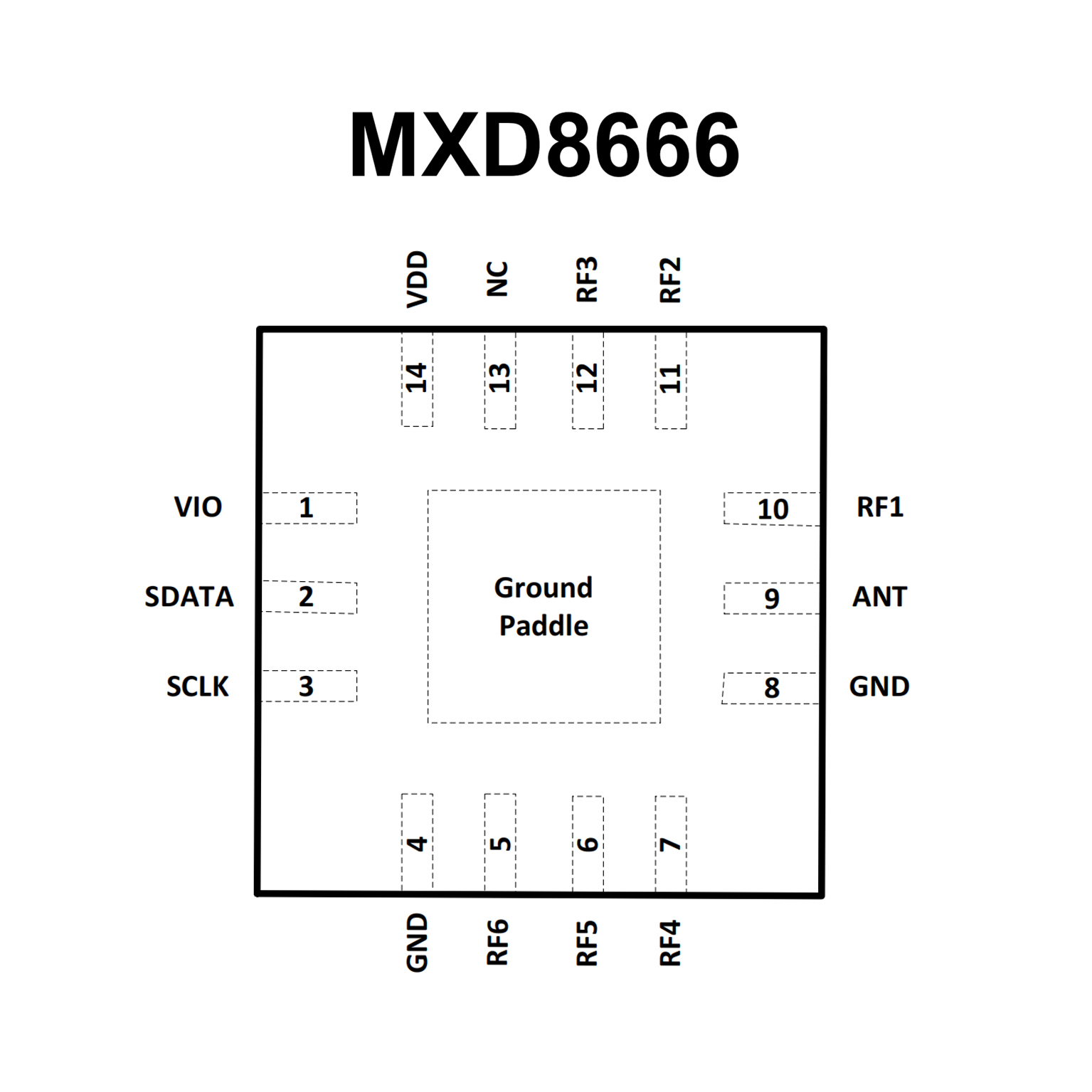

PIN CONFIGUTION
