Ultra-Low Capacitance 1-Channel ESD Protection, Rclamp0521Z P2P SGM05UB1B3.
SGM05UB1B3
SGM05UB1B3.pdf
SGM05UB1B3.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
? Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 5V (MAX)
? Rated Peak Pulse Current: 4.2A
? Channel Input Capacitance: 0.5pF (TYP)

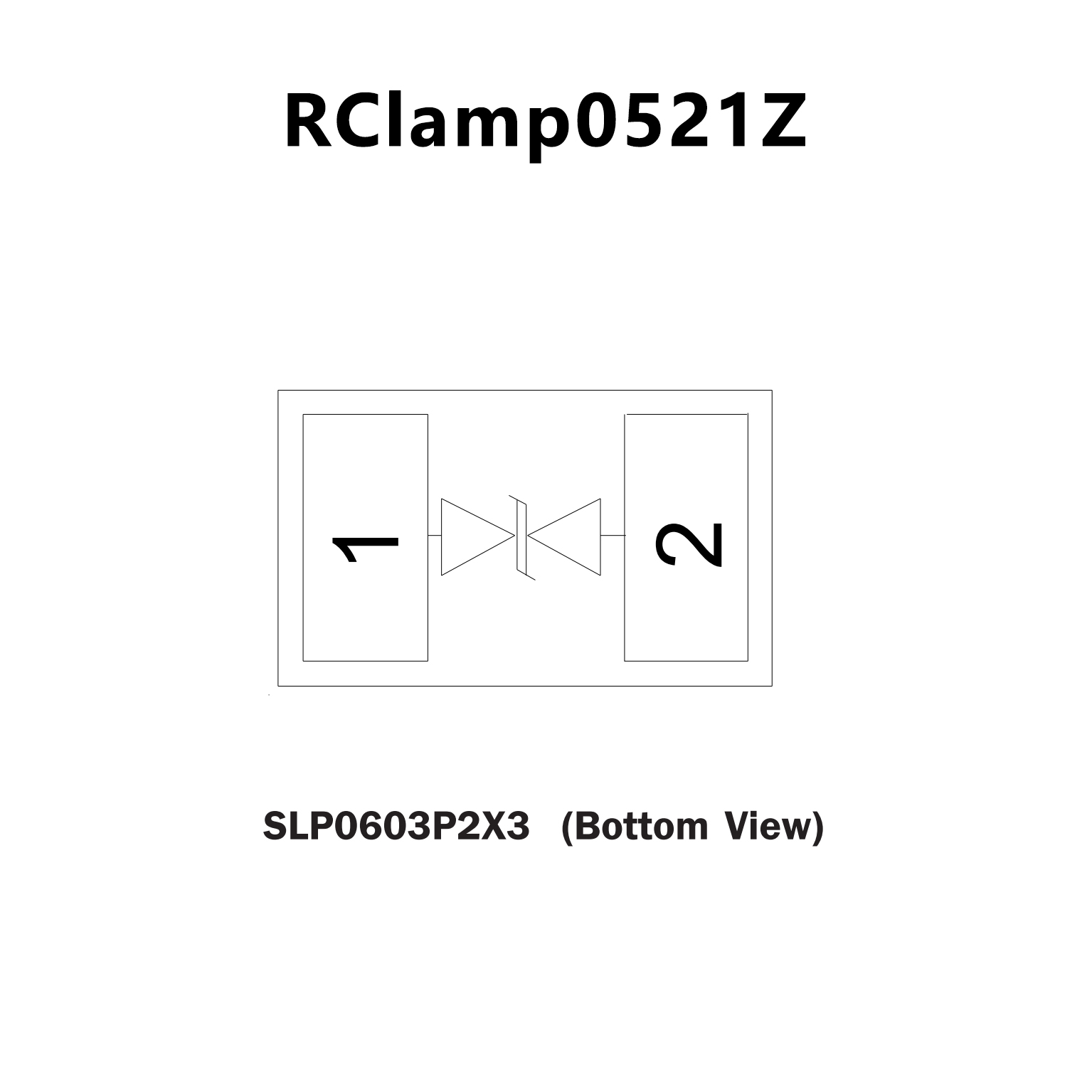

PIN CONFIGUTION
優勢替代
FEATURES
? High ESD withstand Voltage: +/-17kV (Contact) and
+/- 25kV (Air) per IEC 61000-4-2
? Able to withstand over 1000 ESD strikes per IEC
61000-4-2 Level 4
? Ultra-small 0201 package
? Protects one high-speed data line
? Low reverse current: <10nA typical (VR=5V)
? Working voltage: +/- 5V
? Low capacitance: 0.35pF typical
? Dynamic resistance: 0.90 Ohms (Typ)
? Solid-state silicon-avalanche technology

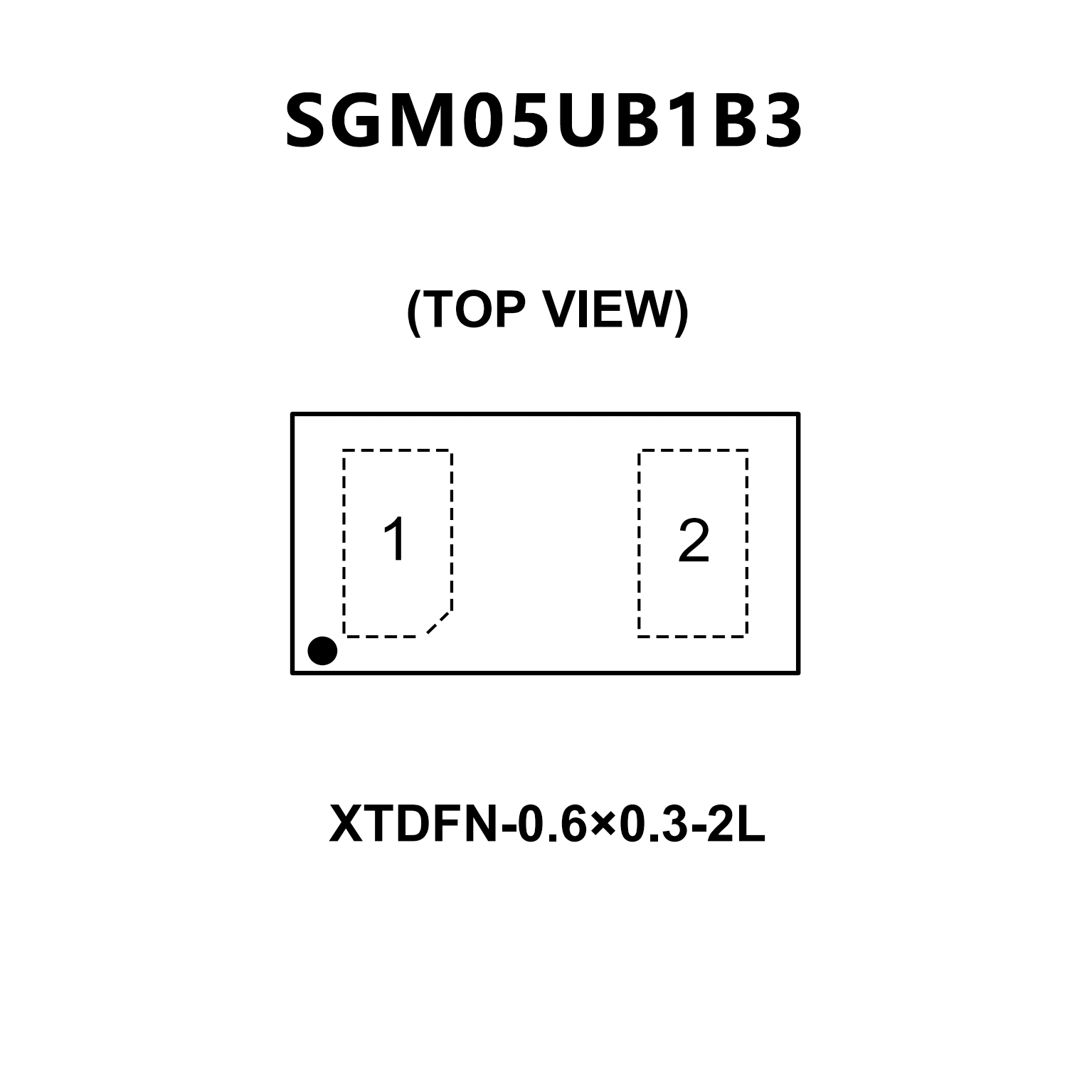

PIN CONFIGUTION
