SCT2160.pdf? 11-mΩ and 10.5-mΩ internal power MOSFETs
? >90% efficiency (0.9-V output)
? DCS-Control topology for fast transient response
? Available output voltage ranges for dynamic
voltage scaling (DVS) through I2C
– Output voltage range from 0.2-V to 0.8375-V
with 2.5-mV step size
– Output voltage range from 0.4-V to 1.675-V
with 5-mV step size
– Output voltage range from 0.8-V to 3.35-V with
10-mV step size
? 1% output voltage accuracy
? 2.4-MHz switching frequency
? Selection by external resistor
– Start-up output voltage
– I2C target address
? Selection by I2C interface
– Power save mode or forced PWM mode
– Output discharge
– Hiccup or latching short-circuit protection
– Output voltage ramp speed
? Thermal pre-warning and thermal shutdown
? Power good indicator pin option with window
comparator
? I2C-compatible interface up to 3.4 Mbps

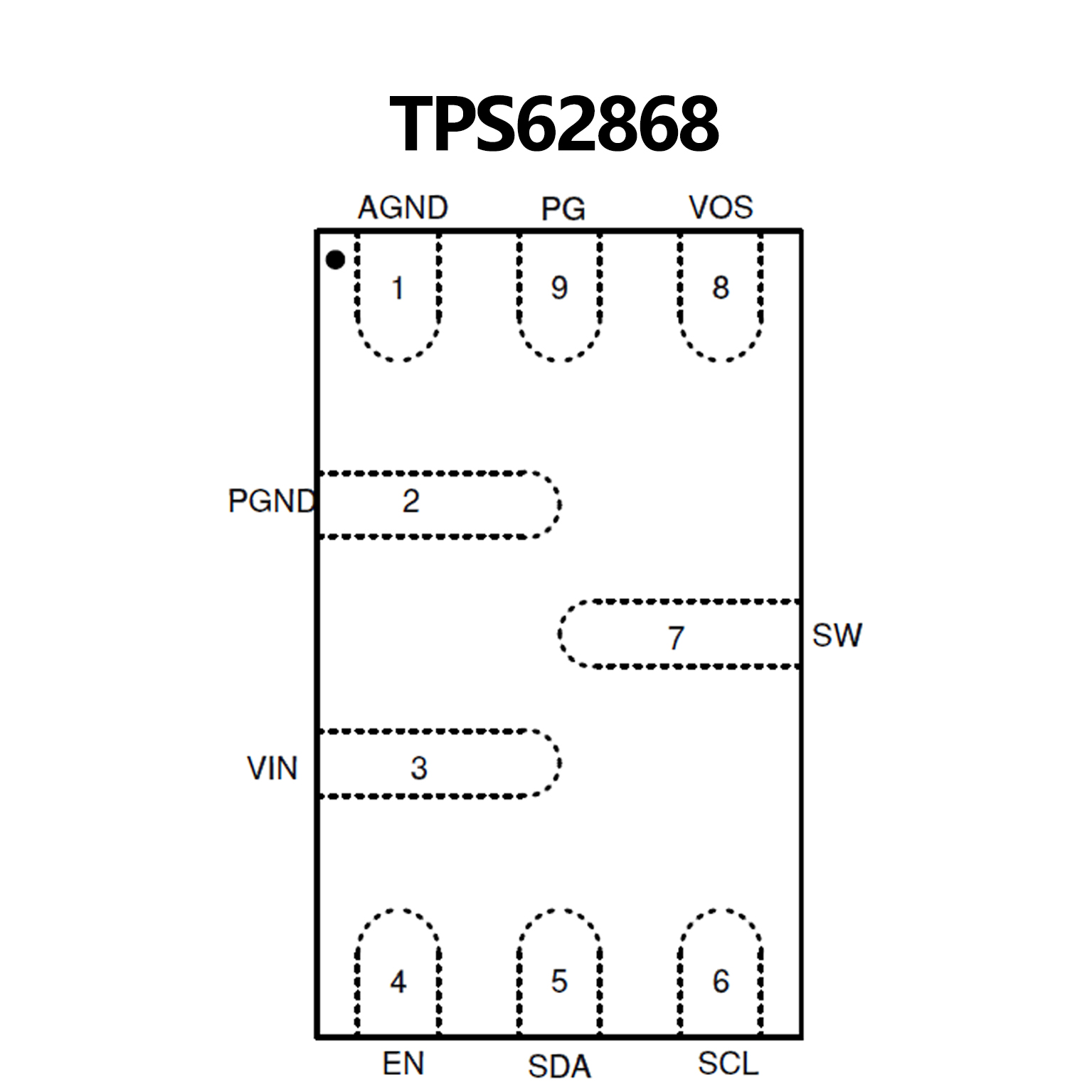

? Available in 1.5-mm x 2.5-mm x 1.0-mm 9-pin QFN
package with 0.5-mm pitch
? Also available in WCSP package: TPS62866,
6-A synchronous step-down converter with I2C
interface in 1.05-mm x 1.78-mm WCSP package
? Create a custom design using with TPS62868/9
with the WEBENCH? Power Designer
