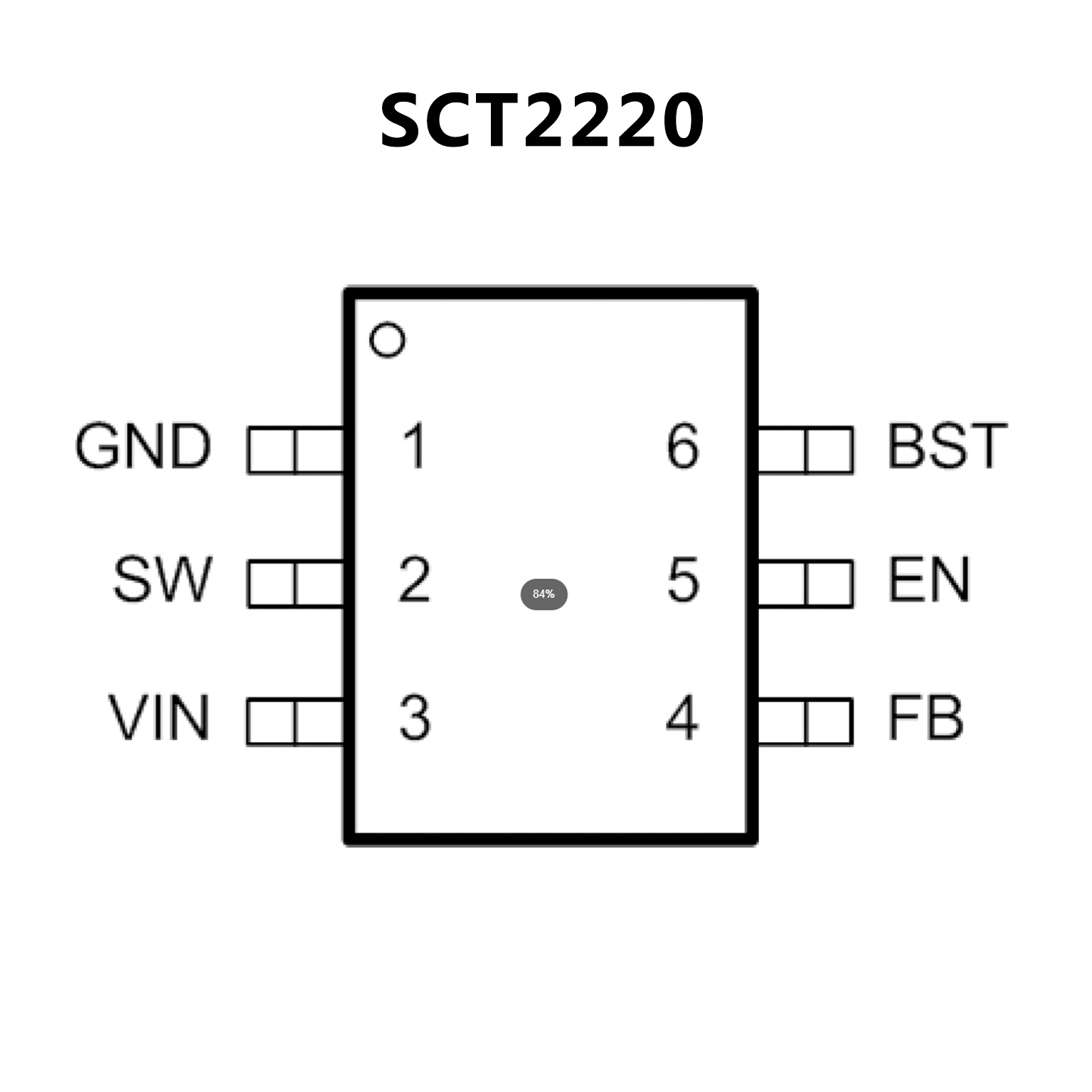

SCT2220.pdf? Wide Input Voltage: 4.2-17V
? 2A Continuous Output Current with
Integrated 90mΩ/65mΩFETs
? Wide Output Voltage Range:0.8V-7V
? Quiescent Current 135μA
? Cycle-by-Cycle Current Limiting
? Internal 2.5ms Soft-Start
Limits the inrush current
? Fixed 750kHz Switching Frequency
? Input Under-Voltage Lockout
? Power save mode at light load
? Over-Temperature Protection
? Available in a SOT563 and TSOT23 Package

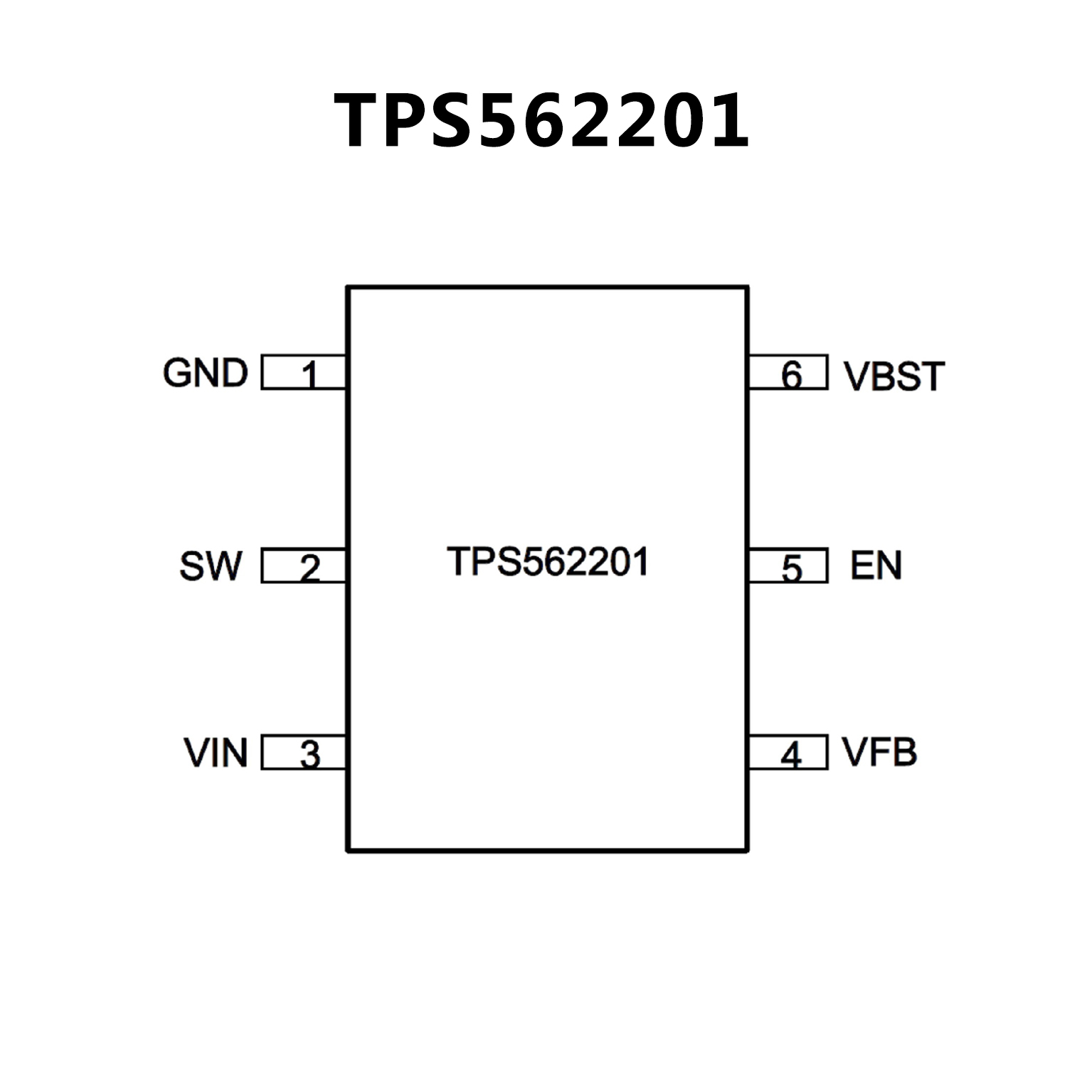

? TPS562201 and TPS562208 2-A converter
integrated 140-mΩ and 84-mΩ FETs
? D-CAP2? mode control with fast transient
response
? Input voltage range: 4.5 V to 17 V
? Output voltage range: 0.76 V to 7 V
? Pulse-skip mode (TPS562201) or continuous
current mode (TPS562208)
? 580-kHz Switching frequency
? Low shutdown current less than 10 μA
? 2% Feedback voltage accuracy (25°C)
? Start-up from pre-biased output voltage
? Cycle-by-cycle overcurrent limit
? Hiccup-mode overcurrent protection
? Non-latch UVP and TSD protections
? Fixed soft start: 1.0 ms
