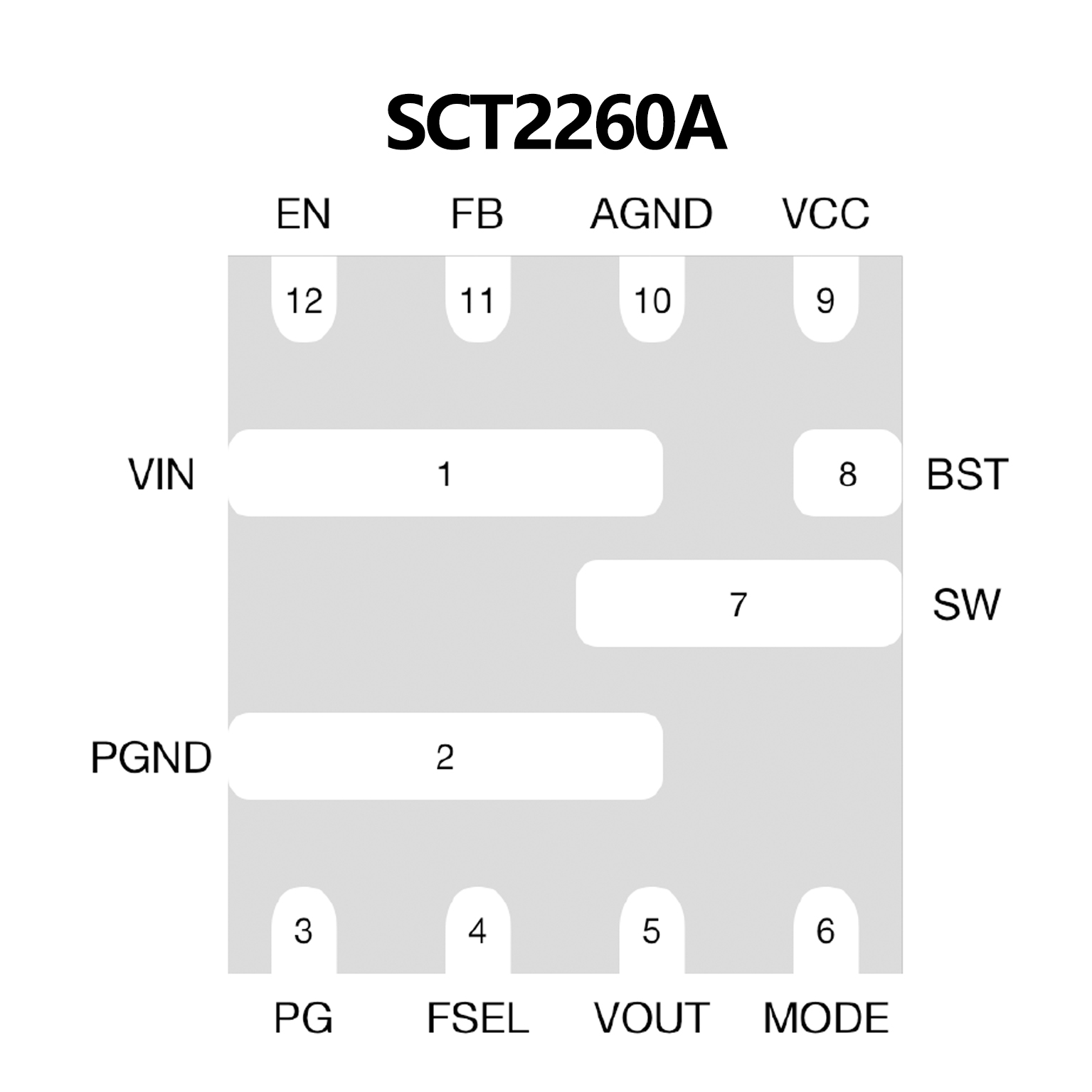

SCT2260A.pdf? Wide 4.5V-18V Input Voltage Range
? 0.6V-7V Output Voltage Range
? 6A Continuous Output Current
? Integrated 25mΩ/12mΩ Rdson of HS/LS Power MOSFETs
? Fixed 1ms Soft-start Time
? Selectable 400KHz, 800KHz and 1.2MHz Switching Frequencies
? Selectable PFM, USM and PWM Operation Modes
? Cycle-by-Cycle Current Limiting
? Output Over-Voltage Protection
? Over-Temperature Protection
? Available in a QFN 12-leads 2mmx3mm Package
? Wide 4.5V to 26V Operating Input Range
? Output Adjustable from 0.6V
? Ultrasonic Mode (USM)
? 117μA Low Quiescent Current
? 6A Continous Output Current
? Adaptive COT for Fast Transient
? DC Auto-Tune Loop
? Stable with POSCAP and Ceramic Output
? 1% Reference Voltage
? Internal Soft Start
? Output Discharge
? 700kHz Switching Frequency
? OCP, OVP, UVP (Hiccup), and Thermal
Shutdown
? Available in a QFN-12 (2mmx3mm)
Package
