SCT2400.pdf? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? Less than 0.1% Output Ripple at 12V Output
?0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600m? High-Side and 300mΩ LowSide Power
MOSFETs · Fixed Frequency 2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 100ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection

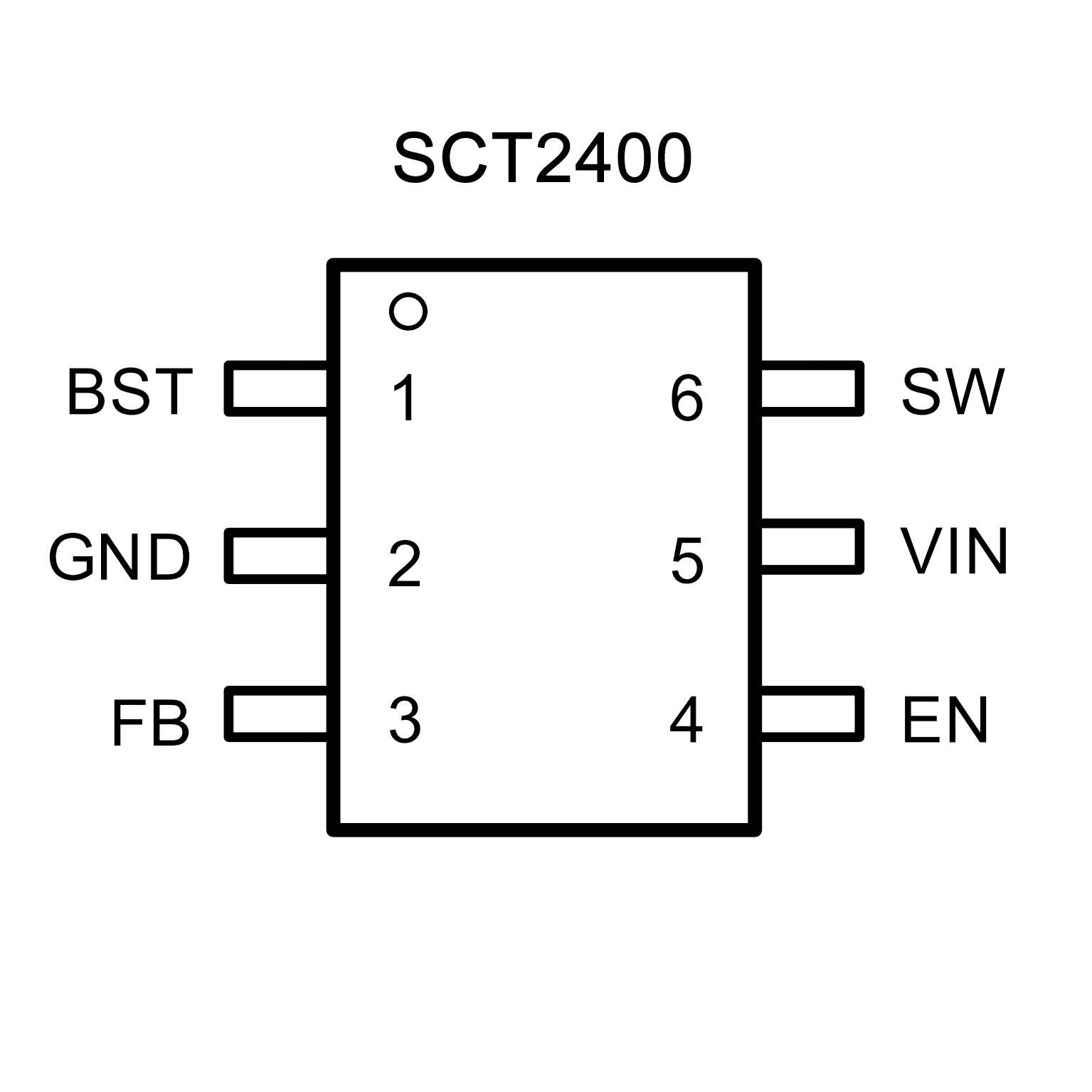

? Available in an TSOT23-6 Package
? Configured for rugged industrial applications
– Input voltage range: 4 V to 36 V
– 1-A continuous output current
– Minimum switching-on time: 60 ns
– 700-kHz fixed switching frequency
– Junction temperature range: –40°C to 150°C
– 98% maximum duty cycle
– Monotonic start-up with pre-biased output
– Internal short circuit protection with hiccup mode
– ±1% tolerance voltage reference
– Precision enable
? Small solution size and ease of use
– Integrated synchronous rectification
– Internal compensation for ease of use

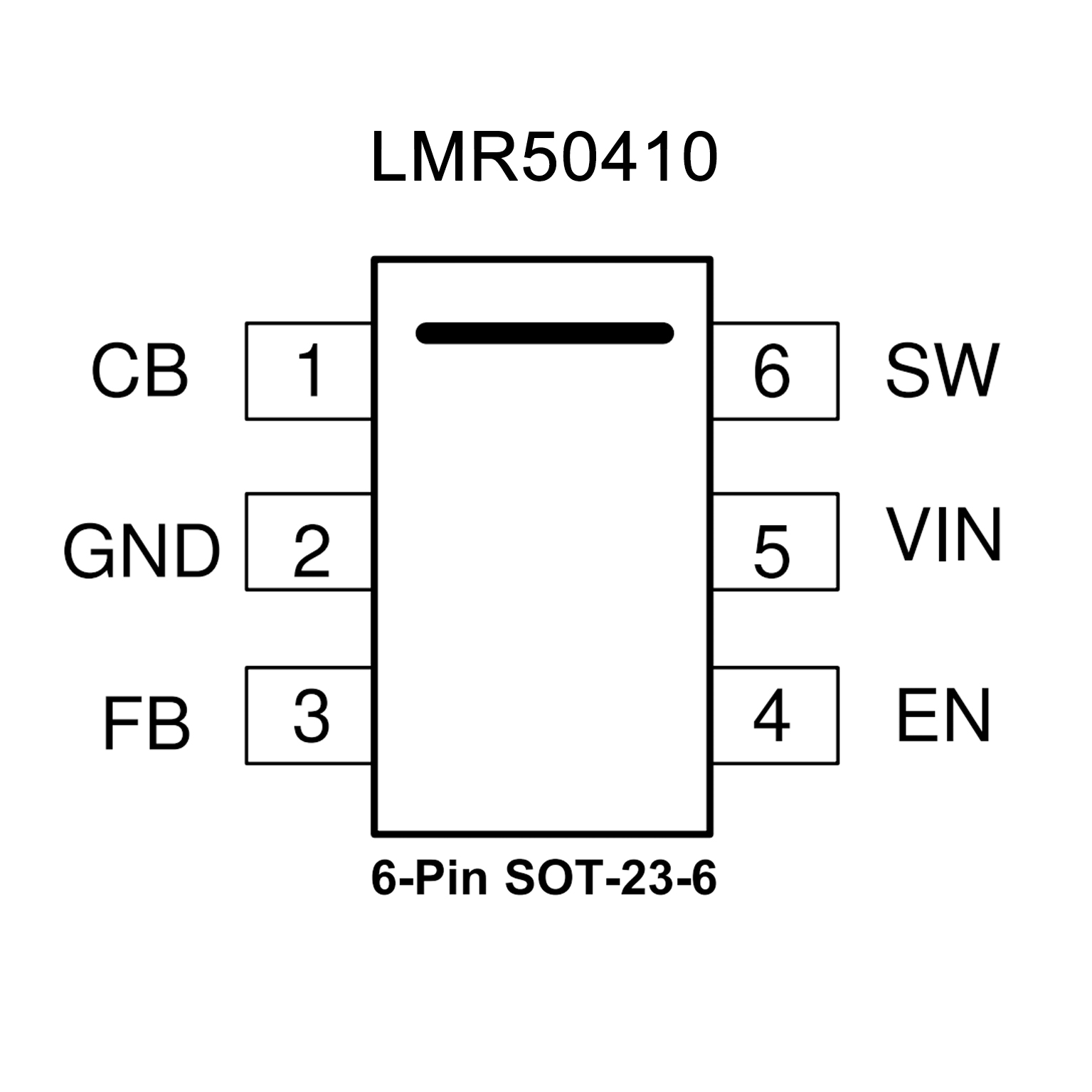

– SOT-23-6 package
? Pin-to-pin compatible with LMR14010A and TPS560430
? Create a custom design using the LMR50410 with the
WEBENCH Power Designer
