4.5V 40V Vin, 600mA Synchronous Step down DCDC Converter, SCT2401 Replace BD9G101G.
SCT2401
SCT2401.pdf
SCT2401.pdfFEATURES
? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? 0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
? Fixed Frequency 1.2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 80ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection
? Available in an TSOT23-6L Packag

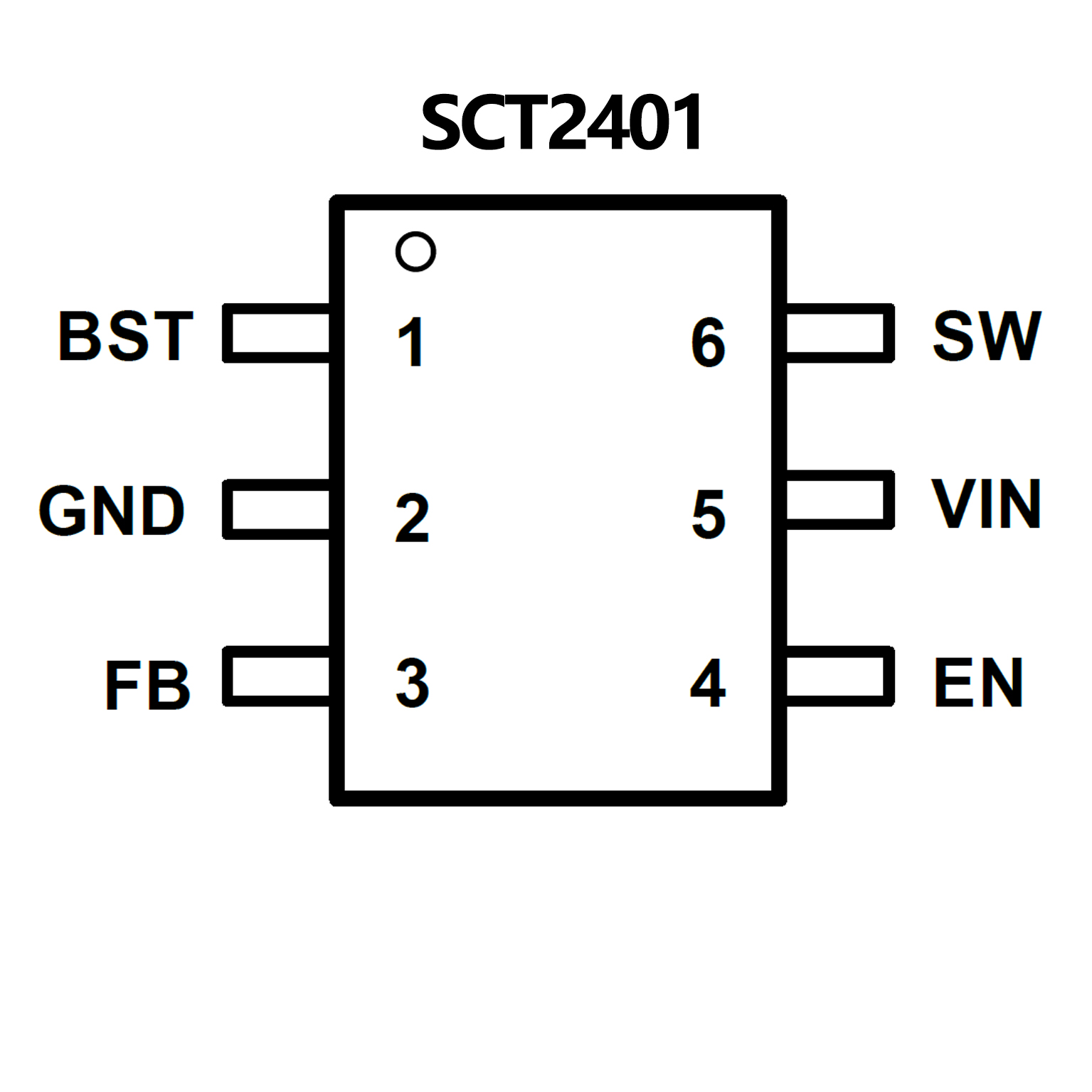

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? High and Wide Input Range (VCC=6V~42V)
? 45V/800mΩ Internal Power MOSFET
? 1.5MHz Fixed Operating Frequency
? Feedback Pin Voltage 0.75V±1.5%
? Internal compensated
? Internal Over Current protection, Under
? Voltage Locked Out, Thermal shutdown
? 0μA Shutdown Supply Current (Ist=0uA)
? Small package SSOP6

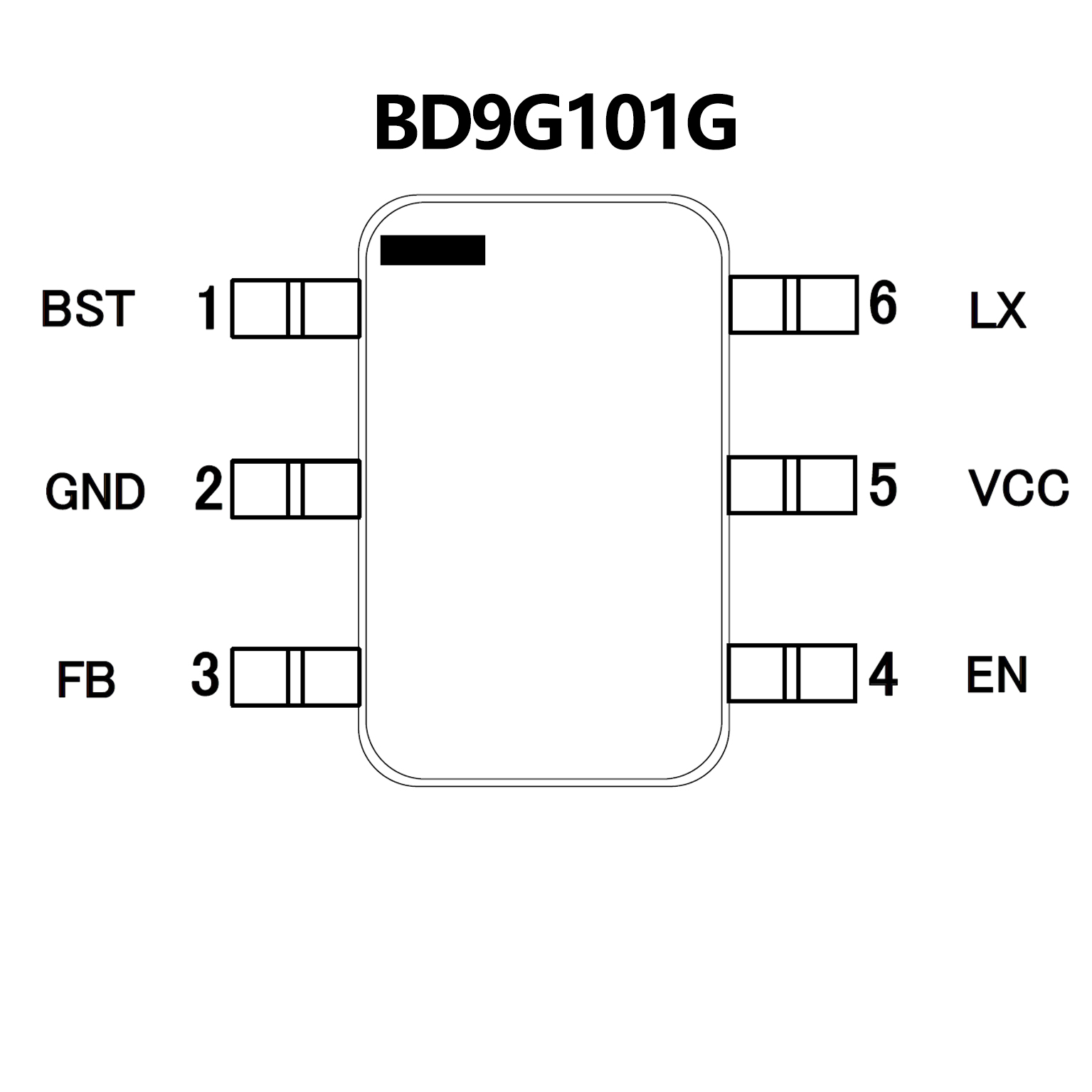

PIN CONFIGUTION
