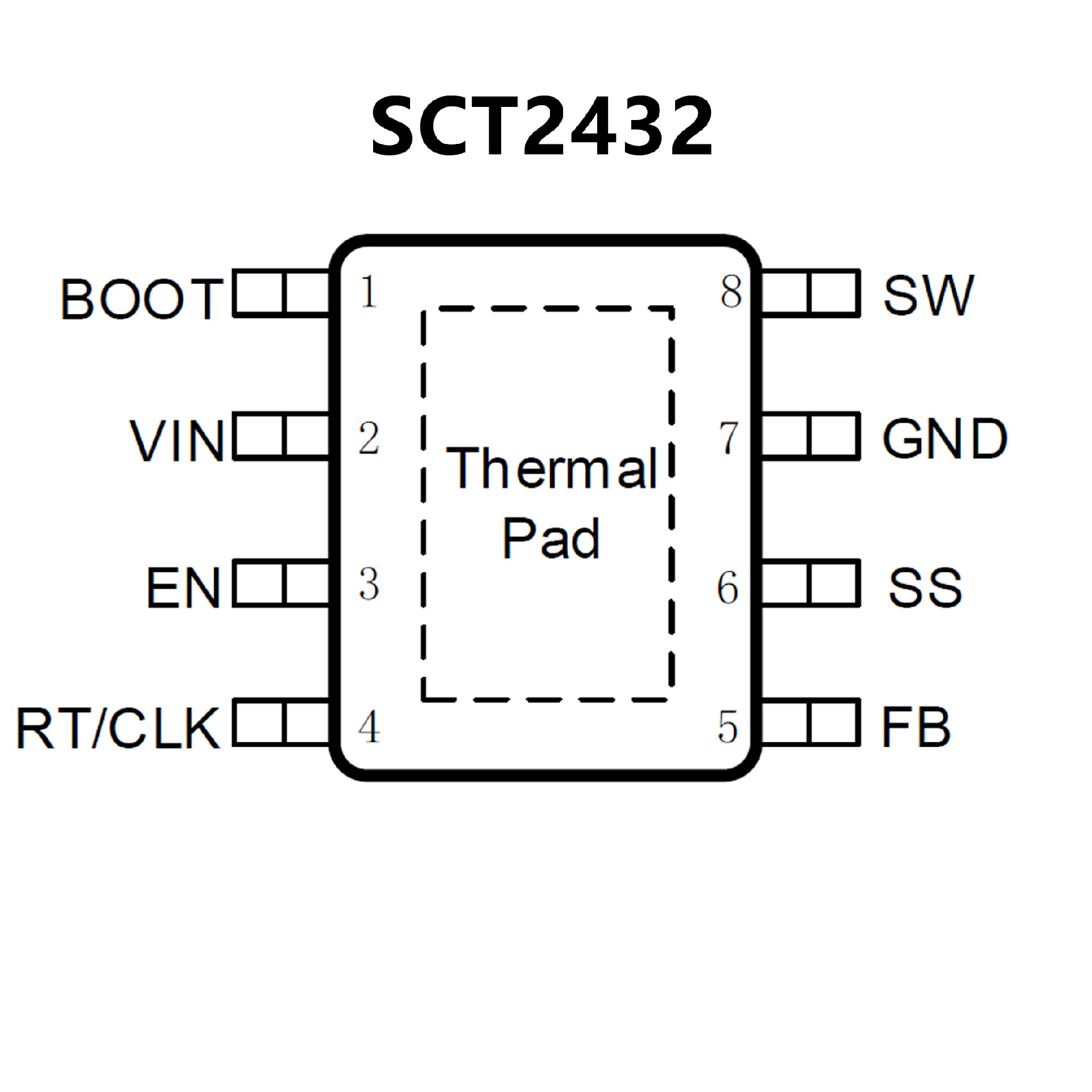

SCT2432.pdf? Wide Input Range: 3.8V-40V
? Up to 3.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Pulse Skipping Mode (PSM) with 25uA Quiescent Current
? 100ns Minimum On-time
? Programmable Soft-start Time
? Adjustable Frequency 300KHz to 2.2MHz
? External Clock Synchronization
? Frequency Spread Spectrum (FSS) Modulation
for EMI Reduction
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

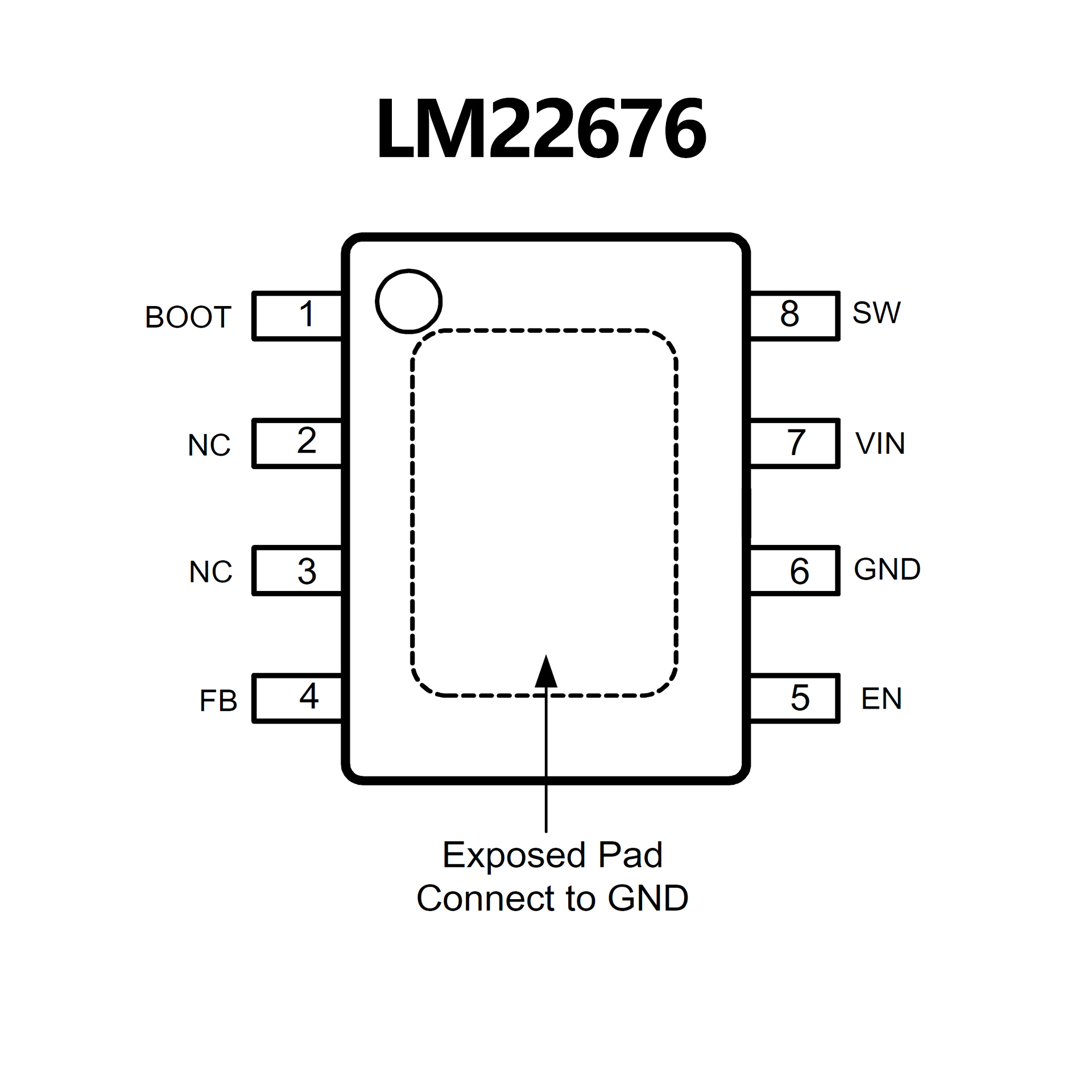

? Wide Input Voltage Range: 4.5 V to 42 V
? Internally Compensated Voltage Mode Control
? Stable with Low ESR Ceramic Capacitors
? 120 mΩ N-Channel MOSFET PFM Package
? 100 mΩ N-Channel MOSFET PSOP-8 Package
? ±1.5% Feedback Reference Accuracy
? Switching Frequency of 500 kHz
? Precision Enable Pin
? Integrated Boot-Strap Diode
? Integrated Soft-Start
? SO PowerPAD (Exposed Pad)
? PFM (Exposed Pad)
