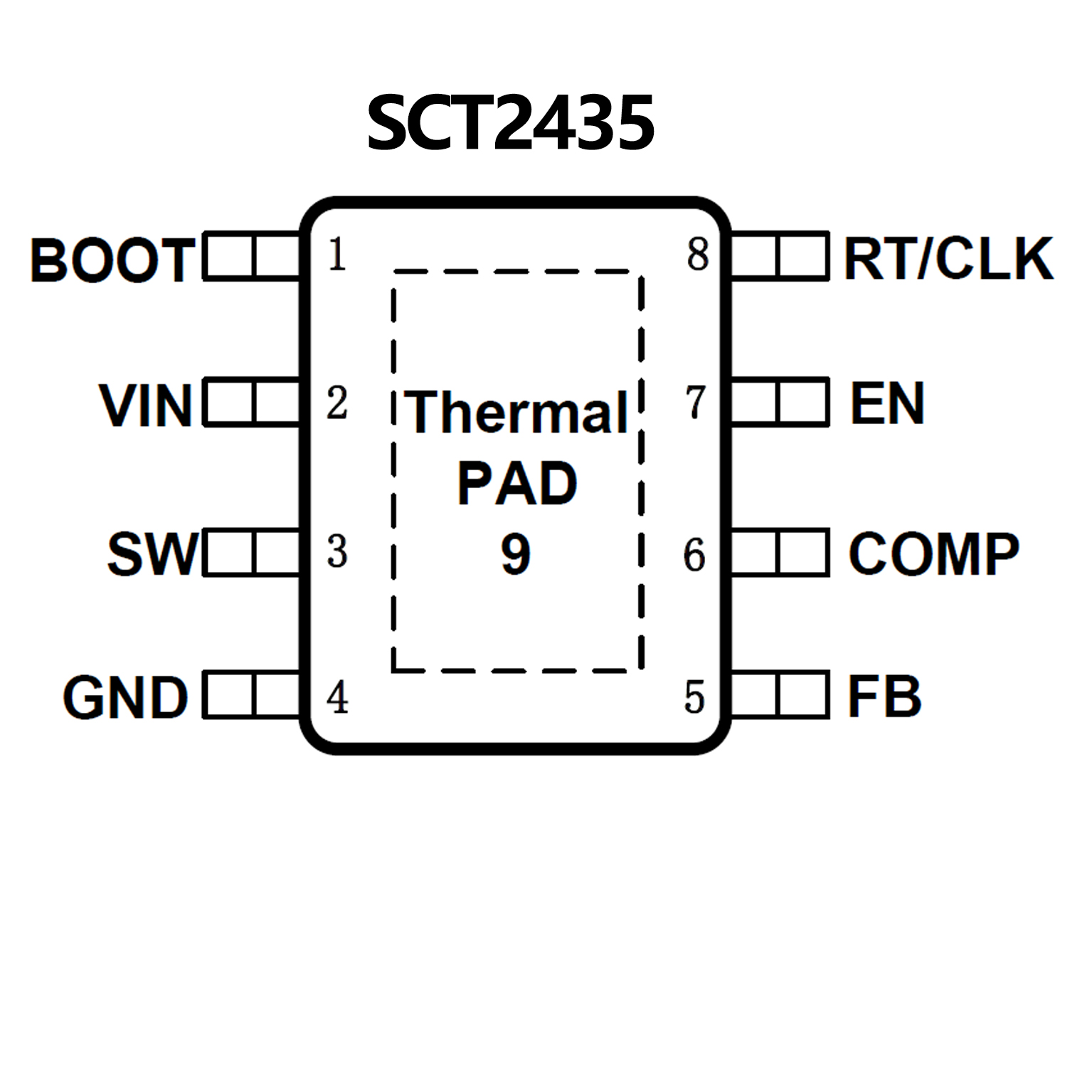

SCT2435.pdf? Wide Input Range: 3.8V-40V
? Up to 3A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 160mΩ High-Side and 90mΩ
Low-Side Power MOSFETs
? Pulse Skipping Mode (PSM) with 25uA
Quiescent Current in Sleep Mode
? 100ns Minimum On-time
? 2ms Internal Soft-start Time
? Adjustable Frequency 100KHz to 2.2MHz
? External Clock Synchronization
? Frequency Spread Spectrum (FSS)
Modulation for EMI Reduction
? Precision Enable Threshold for
Programmable Input Voltage
Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package
? Synchronous 128-mΩ and 84-mΩ MOSFETs for
3-A Continuous Output Current

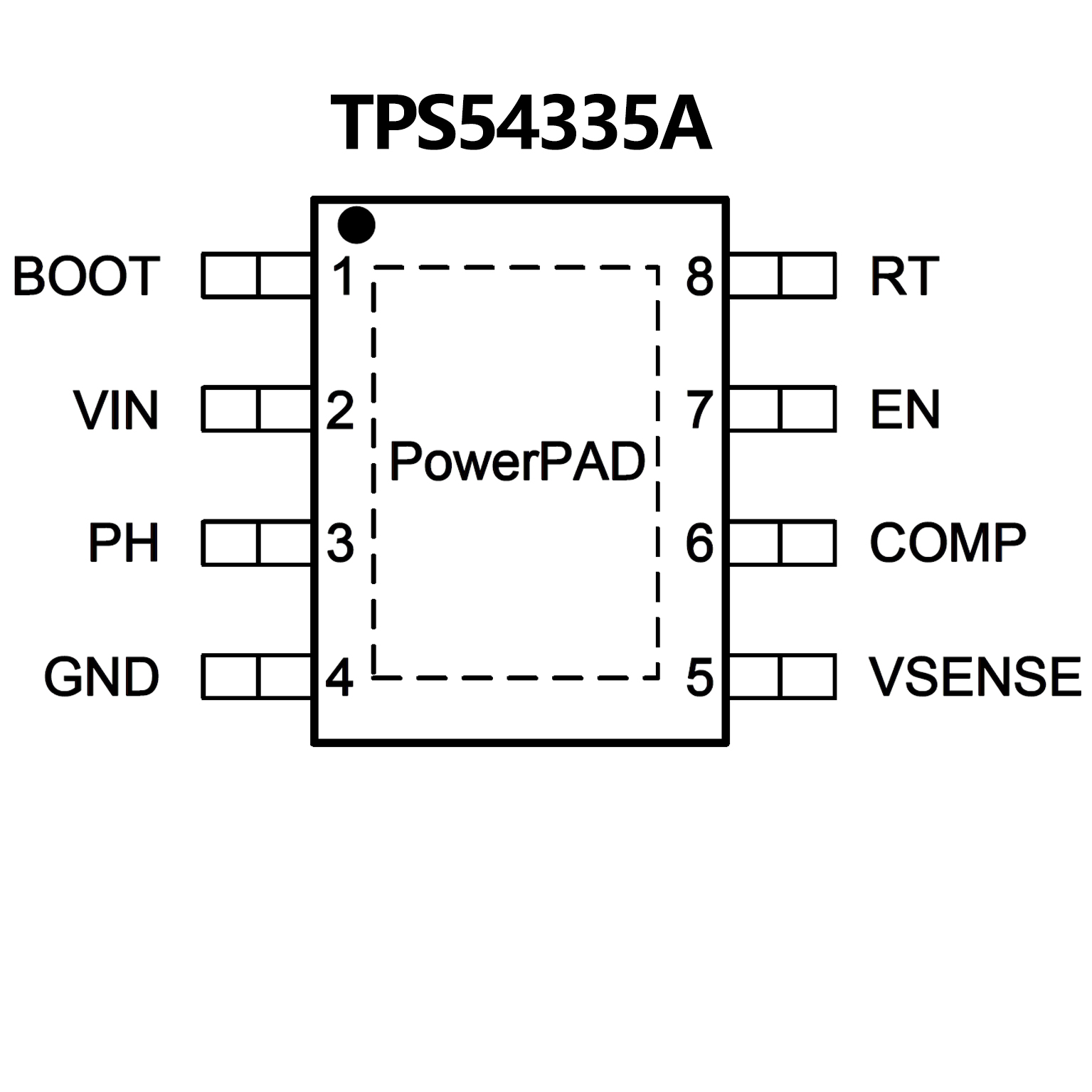

? TPS54335A: Internal 2-ms Soft-Start,
50-kHz to 1.5-MHz Adjustable Frequency
? TPS54336A: Adjustable Soft-Start,
Fixed 340-kHz Frequency
? Low 2-μA Shutdown, Quiescent Current
? 0.8-V Voltage Reference with ±0.8% Accuracy
? Current Mode Control
? Monotonic Startup into Pre-Biased Outputs
? Pulse Skipping for Light-Load Efficiency
? Hiccup Mode Overcurrent Protection
? Thermal Shutdown (TSD) and
Overvoltage Transition Protection
? 8-Pin SO PowerPAD? and 10-Pin VSON
Package
? Create a Custom Design Using the TPS54335A
with the WEBENCH Power Designer
