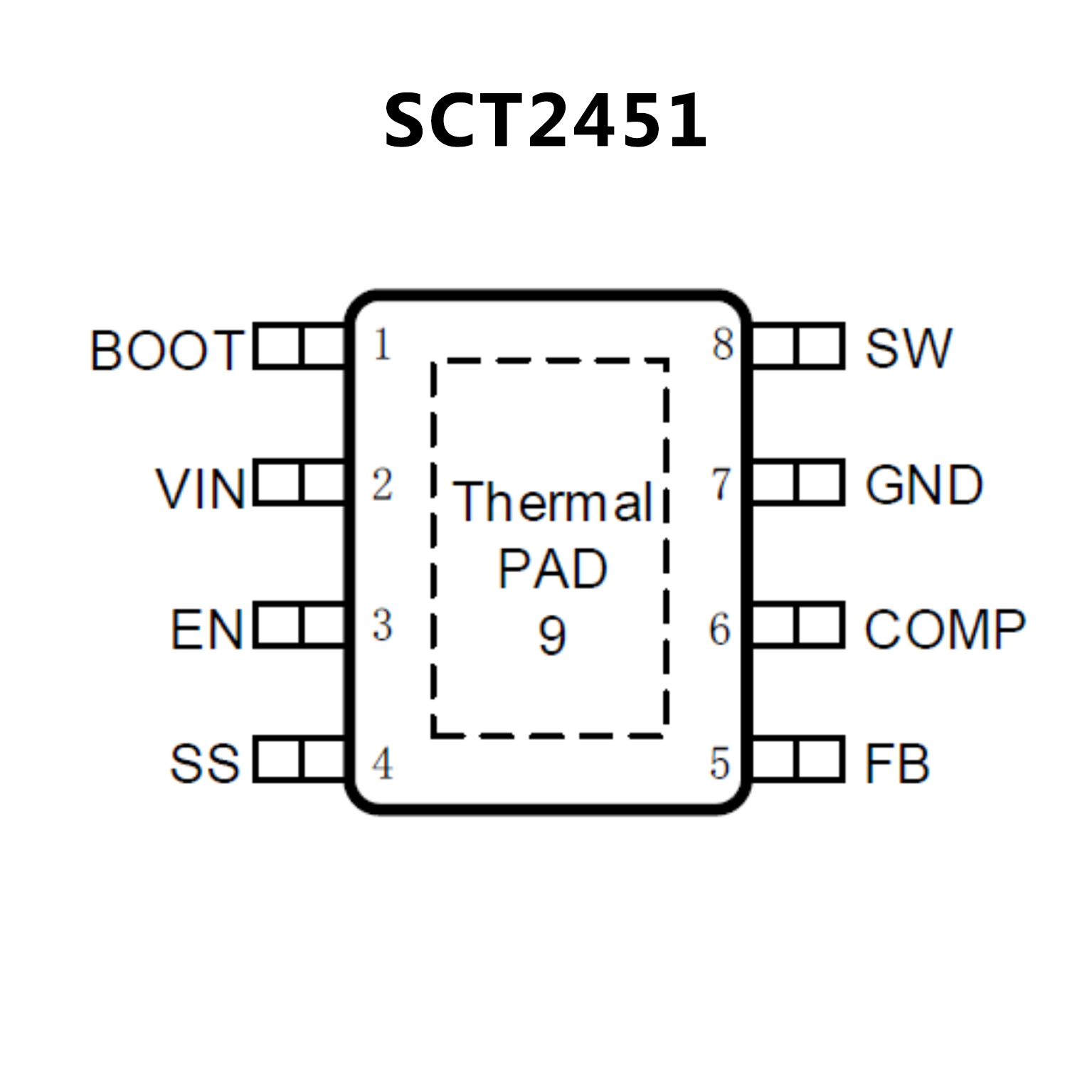

SCT2451.pdf? Wide Input Range: 3.8V-36V
? Up to 5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 45mΩ High-Side and 20mΩ Low-Side
Power MOSFETs
? Pulse Skipping Mode PSM with 25uA Quiescent
Current in Sleep Mode
? 100ns Minimum On-time
? Programmable Soft-start Time
? Fixed Switching Frequency 570kHz
? Frequency Spread Spectrum FSS Modulation for
EMI Reduction
? Precision Enable Threshold for Programmable Input
Voltage Lock Out (UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over Temperature Protection

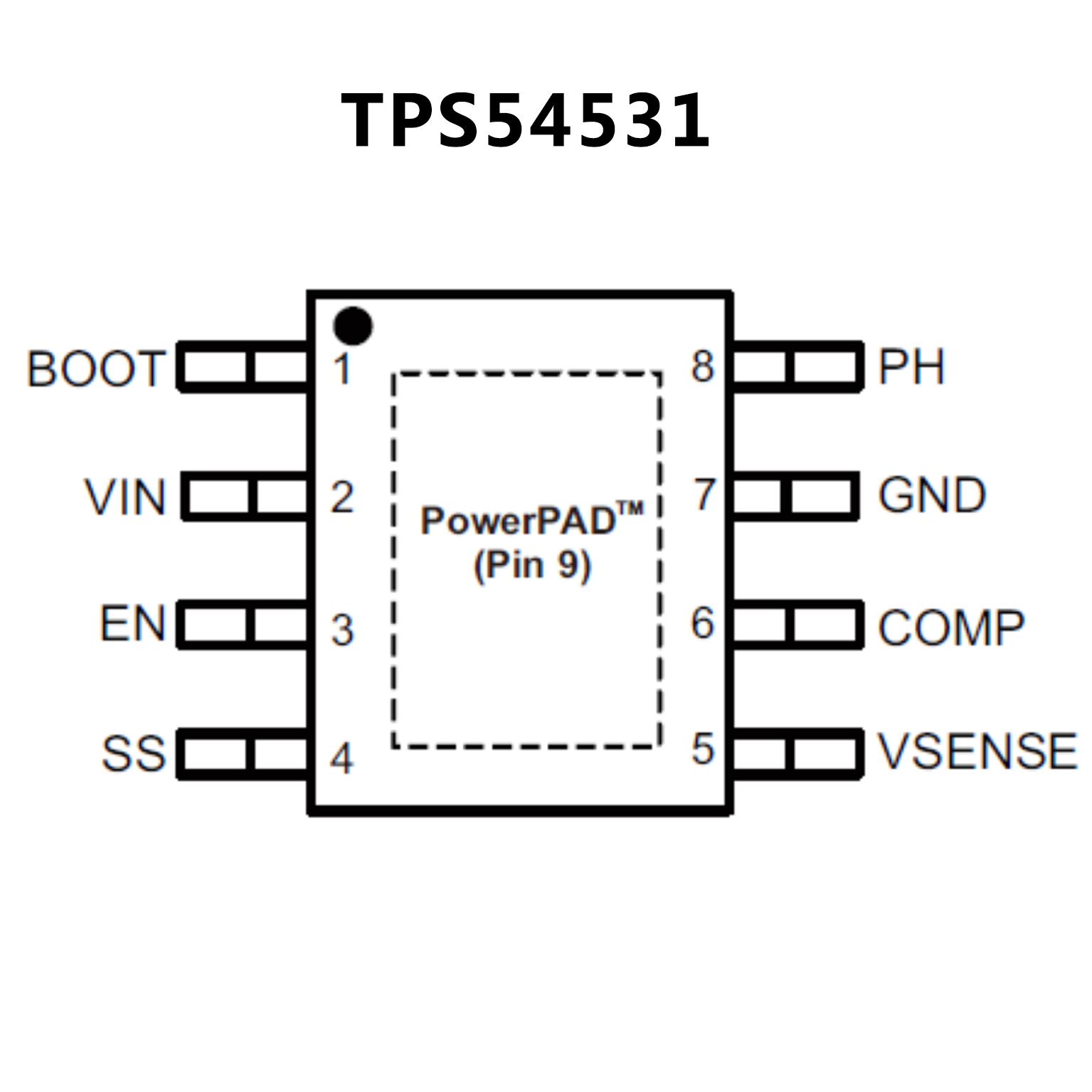

? 3.5V to 28V Input Voltage Range
? Adjustable Output Voltage Down to 0.8V
? Integrated 80 mΩ High Side MOSFET Supports
up to 5A Continuous Output Current
? High Efficiency at Light Loads with a Pulse
Skipping Eco-mode?
? Fixed 570kHz Switching Frequency
? Typical 1μA Shutdown Quiescent Current
? Adjustable Slow Start Limits Inrush Currents
? Programmable UVLO Threshold
? Overvoltage Transient Protection
? Cycle-by-Cycle Current Limit, Frequency Fold
Back and Thermal Shutdown Protection
? Available in Easy-to-Use Thermally Enhanced
SOIC8 PowerPADTM Package
