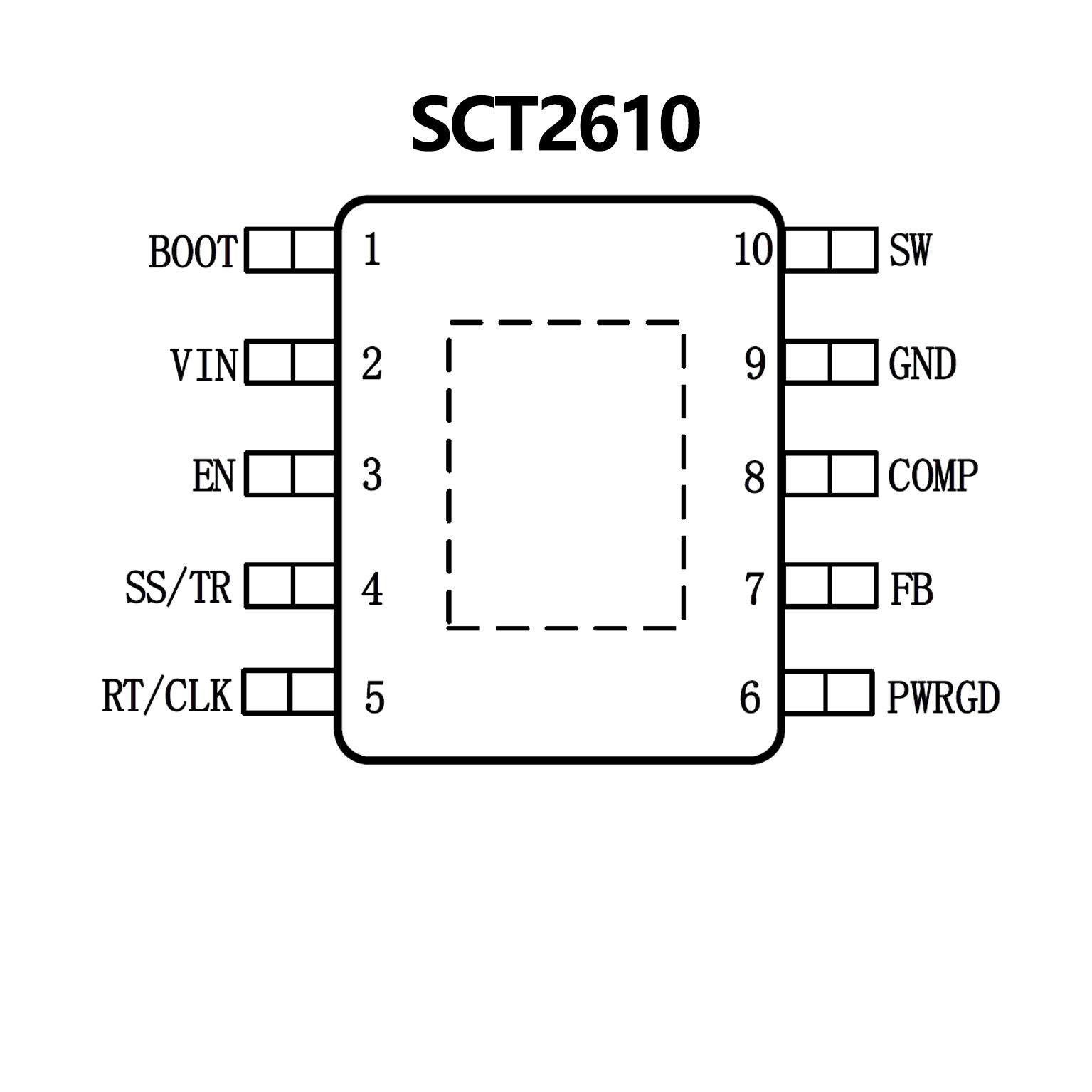

SCT2610.pdf? Wide Input Range: 3.8V-60V
? Up to 2.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220mΩ High-Side MOSFET
? Low Quiescent Current: 190uA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? Adjustable Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? UV and OV Power Good Output
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an EMSOP-10 Package

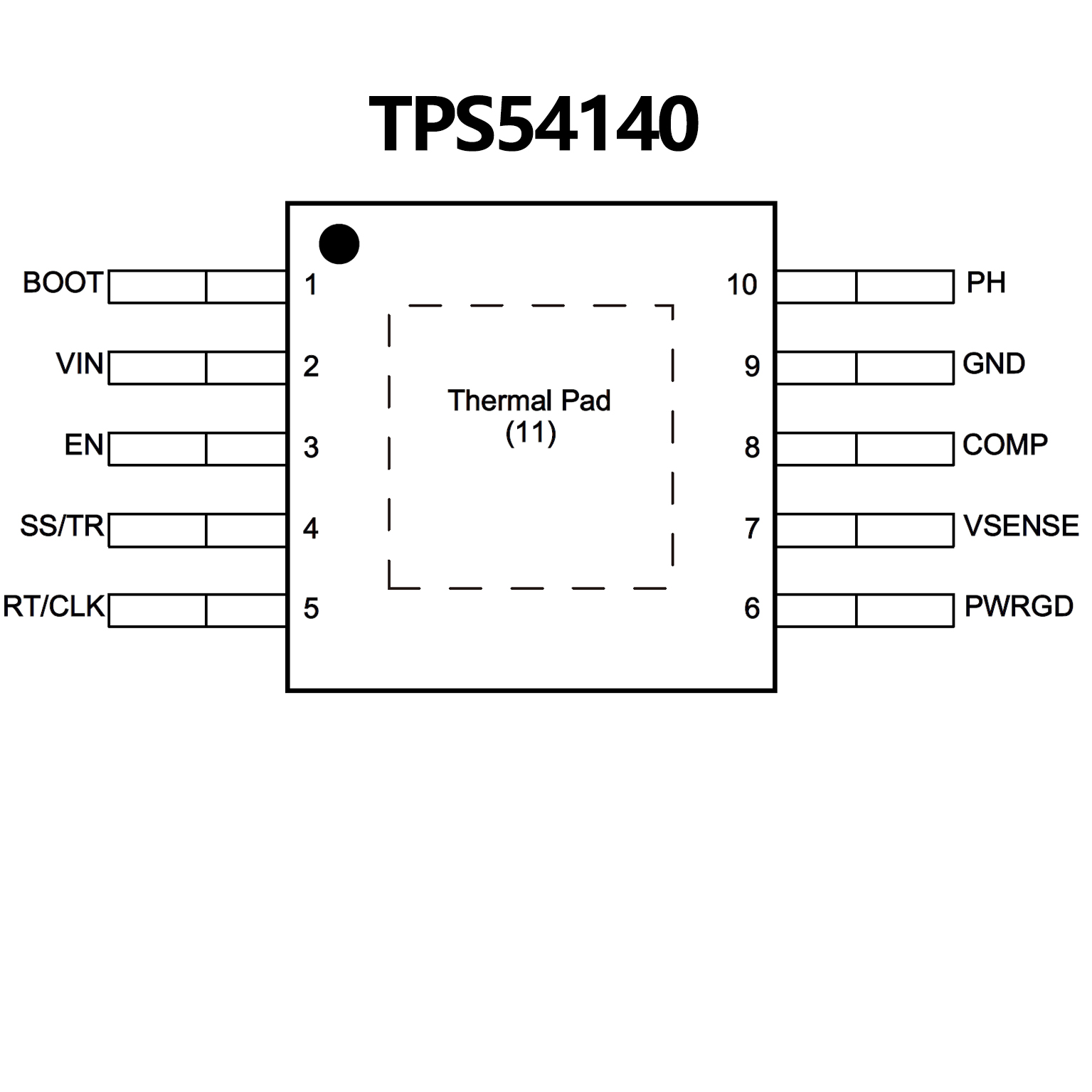

? 3.5- to 42-V Input Voltage Rang
? 200-m? High-Side MOSFET
? High Efficiency at Light Loads
with a Pulse Skipping Eco-mode?
? 116-μA Operating Quiescent Current
? 1.3-μA Shutdown Current
? 100-kHz to 2.5-MHz Switching Frequency
? Synchronizes to External Clock
? Adjustable Slow Start and Sequencing
? UV and OV Power-Good Output
? Adjustable UVLO Voltage and Hysteresis
? 0.8-V Internal Voltage Reference
? MSOP10 Package With PowerPAD?
? Supported by WEBENCH? Software Tool
