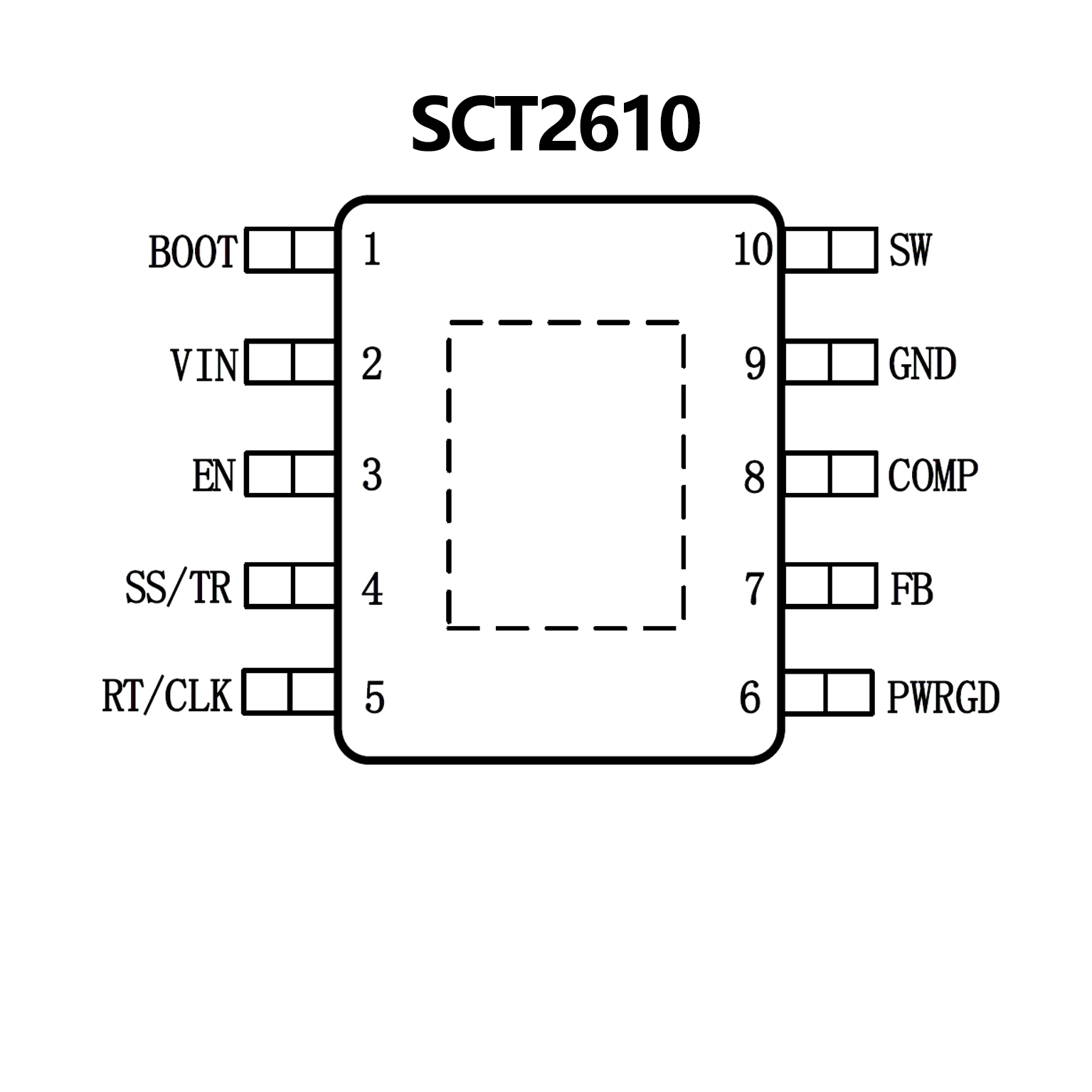

SCT2610.pdf? Wide Input Range: 3.8V-60V
? Up to 2.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220mΩ High-Side MOSFET
? Low Quiescent Current: 190uA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? Adjustable Soft-start Time
? Adjustable Frequency 100KHz to 1.2MHz
? UV and OV Power Good Output
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in an EMSOP-10 Package
? 3.5 V to 60 V Input Voltage Range
? 200-m? High-Side MOSFET
? High Efficiency at Light Loads
with a Pulse Skipping Eco-mode?

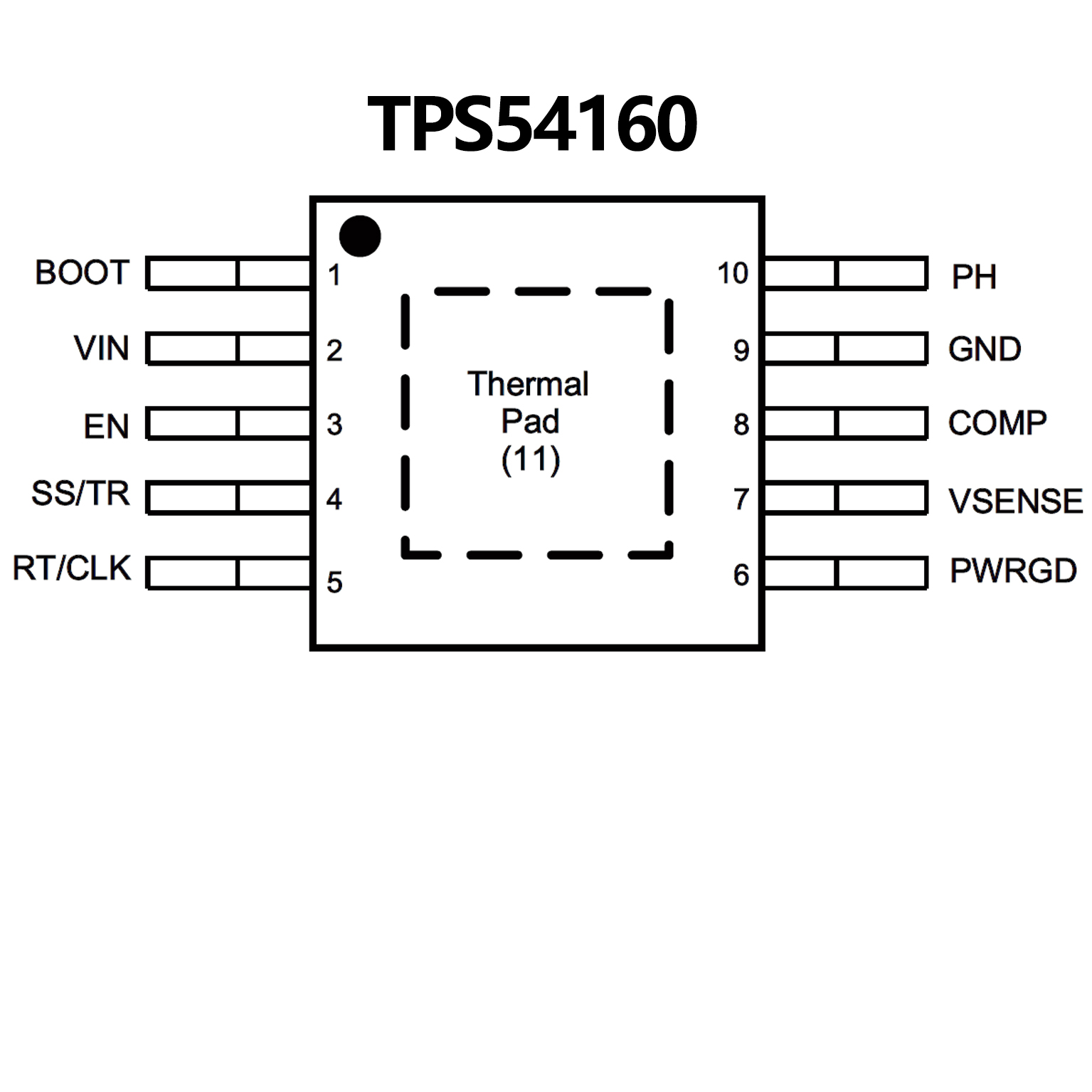

? TPS54160A has Tighter Enable
Threshold Than TPS54160 for More
Accurate UVLO voltage
? Adjustable UVLO Voltage and Hysteresis
? 116 μA Operating Quiescent Current
? 1.3 μA Shutdown Current
? 100 kHz to 2.5 MHz Switching Frequency
? Synchronizes to External Clock
? Adjustable Slow Start/Sequencing
? UV and OV Power Good Output
? 0.8-V Internal Voltage Reference
? MSOP10 and 3mm x 3mm VSON
Package with PowerPAD?
? Supported by WEBBENCH? and
SwitcherPro? Software Tool
