SCT2613.pdf? Wide Input Range: 4.5V-60V
? Continuous Output Current: 1A
? 0.765V ±2.5% Feedback Reference Voltage
? Integrated 500mΩ High-Side
? Low Quiescent Current: 80uA
? Pulse Skipping Mode (PSM) in light load
? 80ns Minimum On-time
? 6ms Internal Soft-start Time
? Internal compensation
? Switching Frequency 480KHz
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection

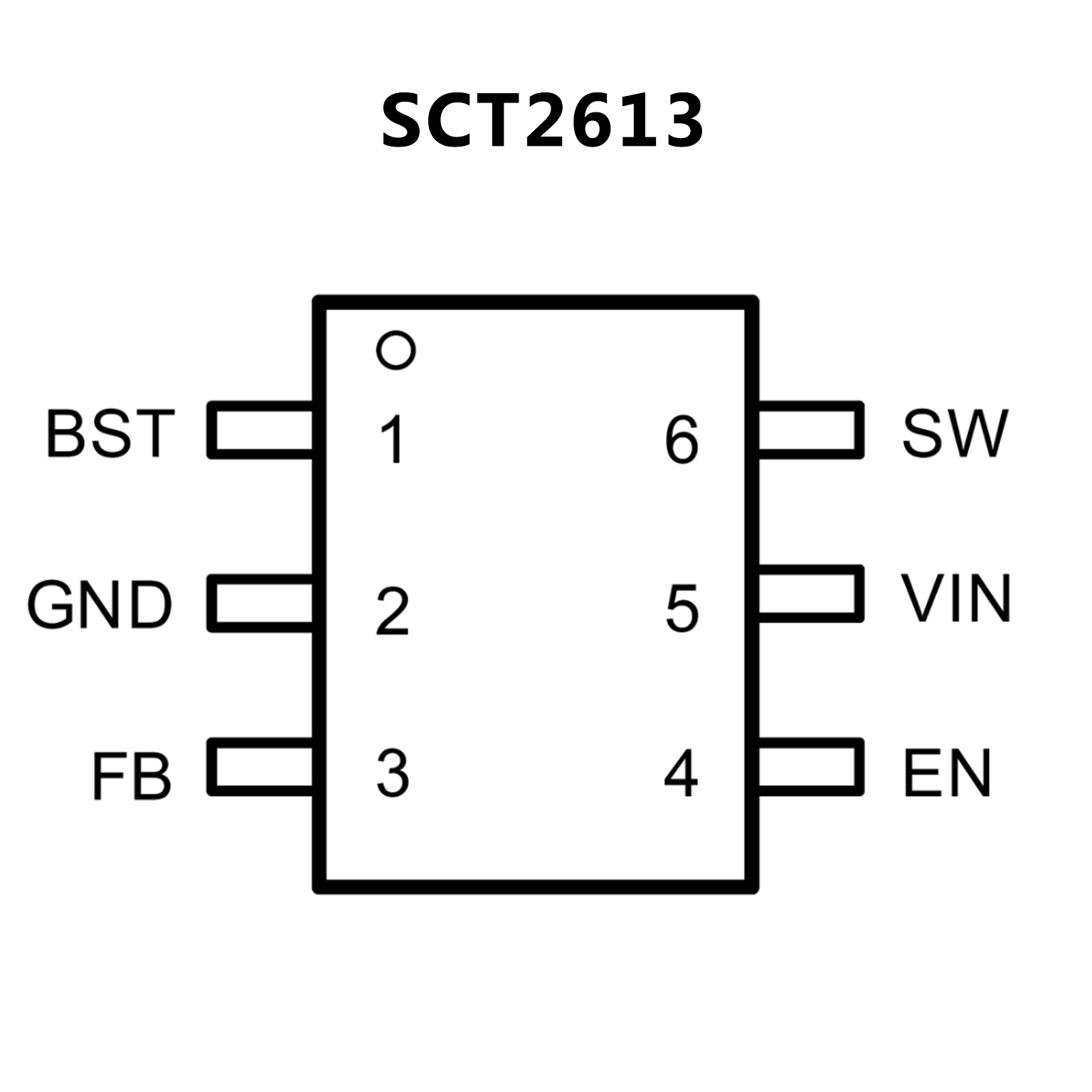

? Available in an TSOT23-6L Package
? 0.5A Peak Output Current
? 15 Internal Power MOSFET
? Stable with Low-ESR Ceramic Output Capacitors
? Up to 90% Efficiency
? 0.1μA Shutdown Mode
? Fixed 480kHz Frequency
? Thermal Shutdown
? Cycle-by-Cycle Over-Current Protection
? Wide 4.5V-to-55V Operating Input Range
? Output Adjustable from 0.81V to 0.95*VIN

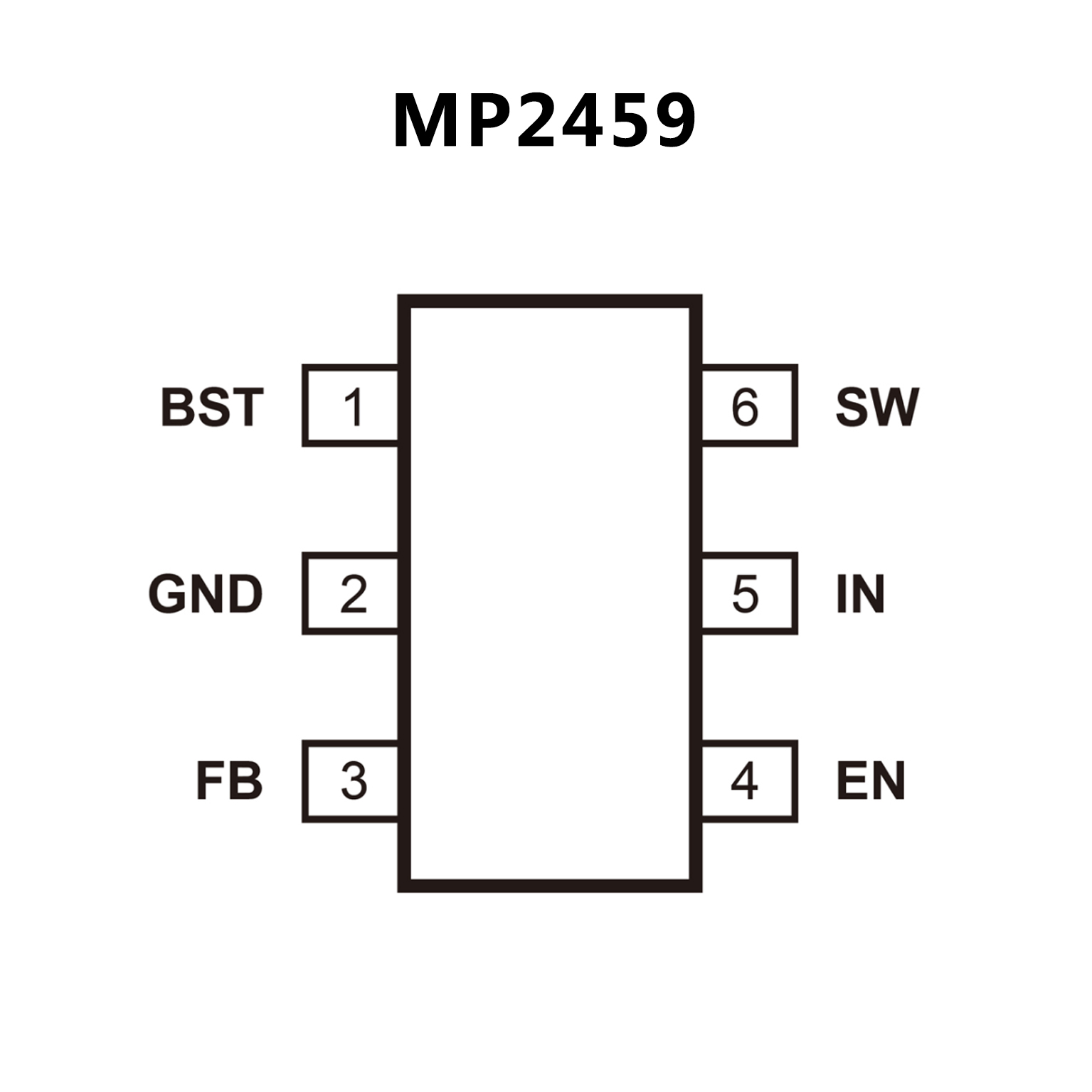

? Available in a TSOT23-6 Package
